類型：TFT橫屏
顯示像素：800x480

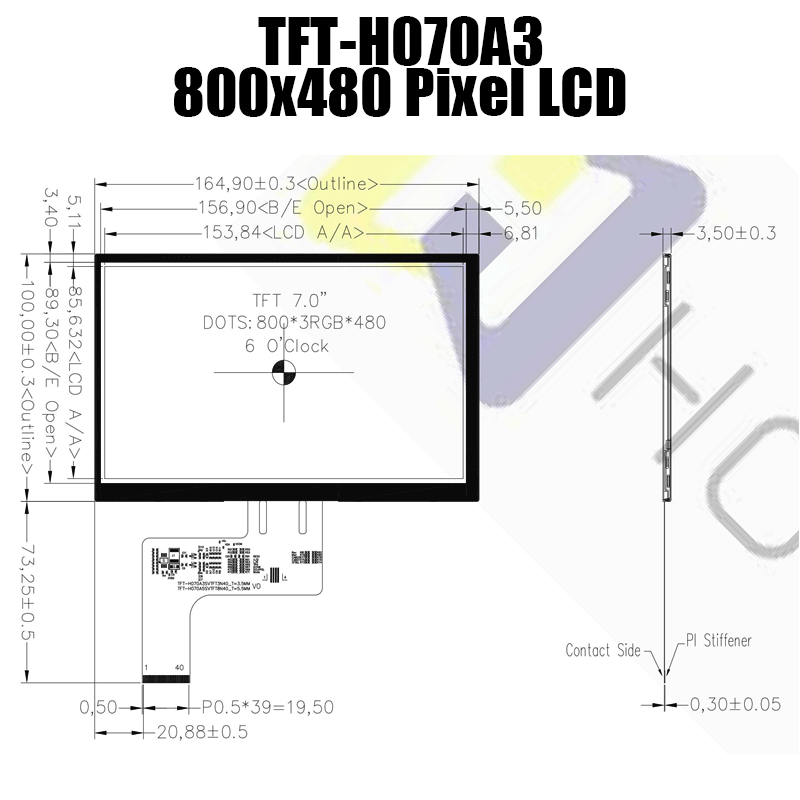

外形尺寸 ：164.90×100.00×3.50
VA尺寸：7.0
AA尺寸 ：7.0
有效尺寸mm：153.84x85.632
應用：家電，車載顯示

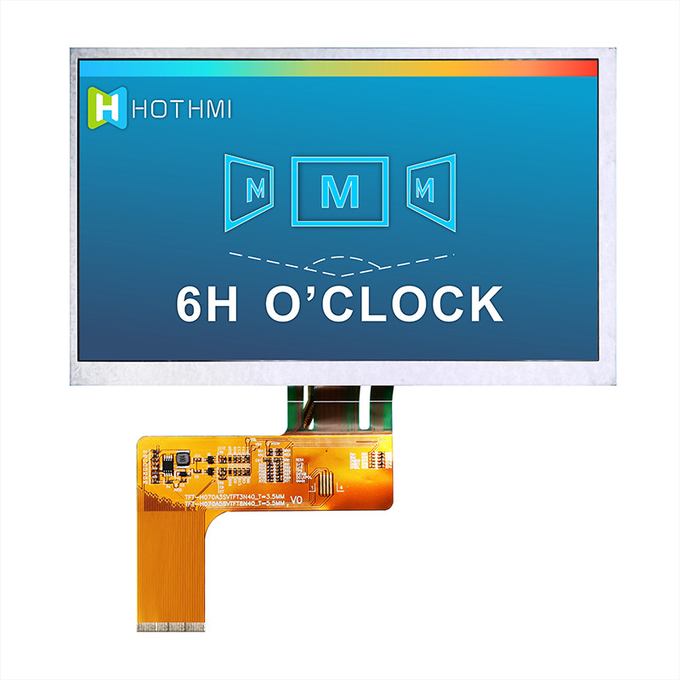

視角：6H

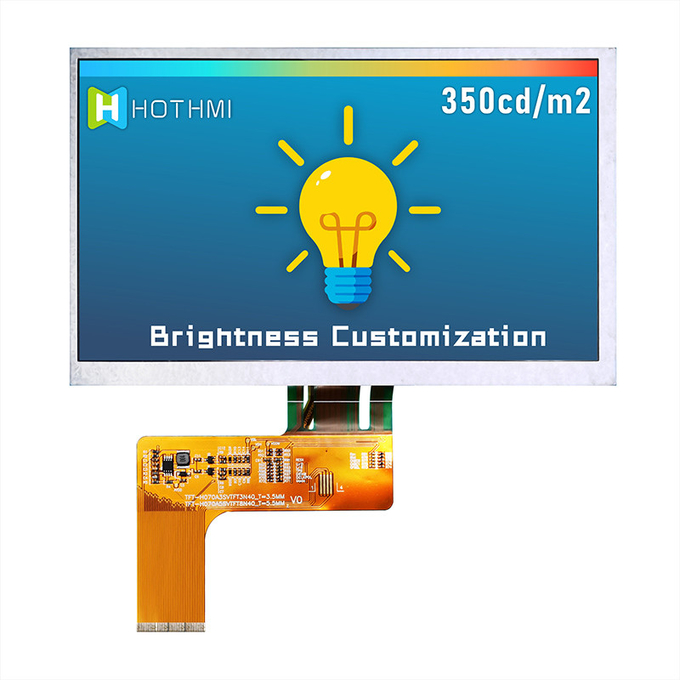

背光/亮度：350cd/m2
引腳：40pin

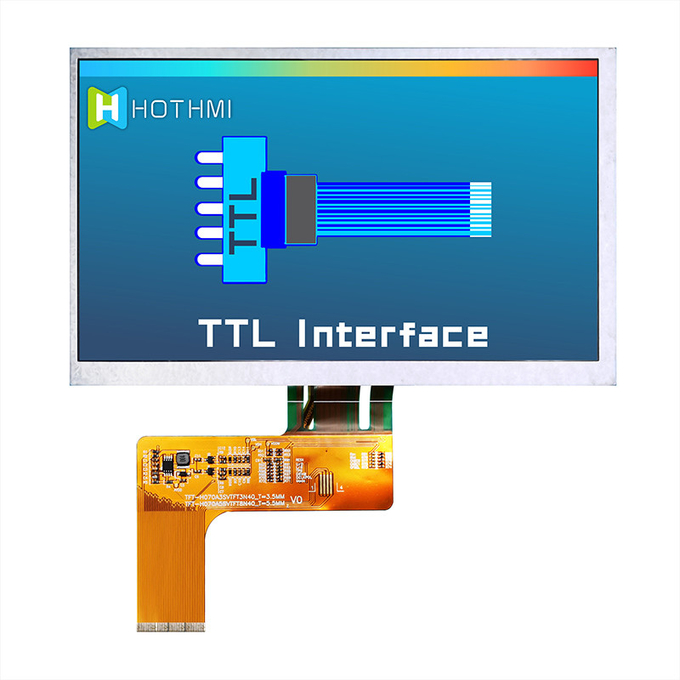

接口方式：TTL
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：3.3V

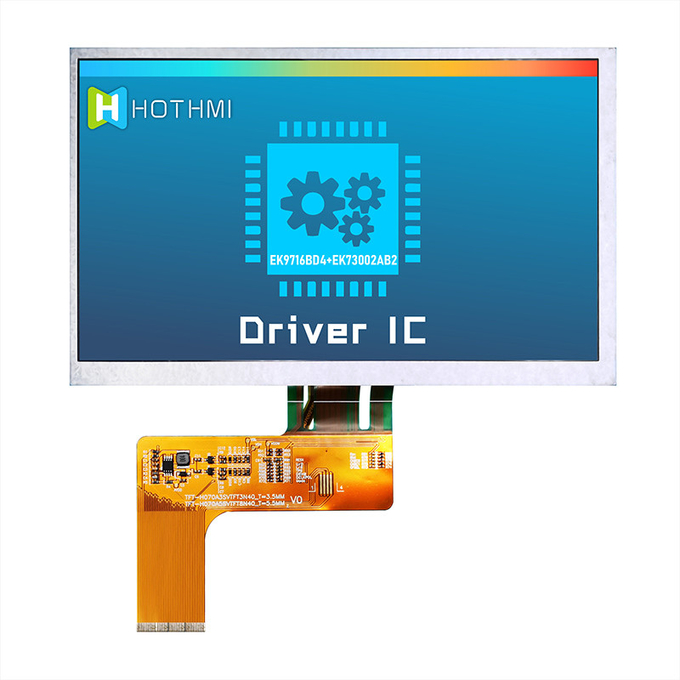

驅動芯片：EK9716BD4+EK73002AB2

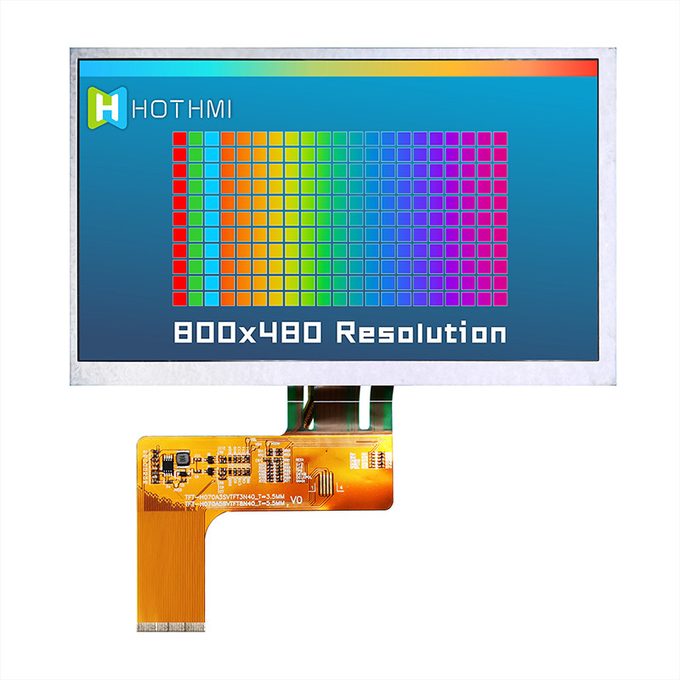

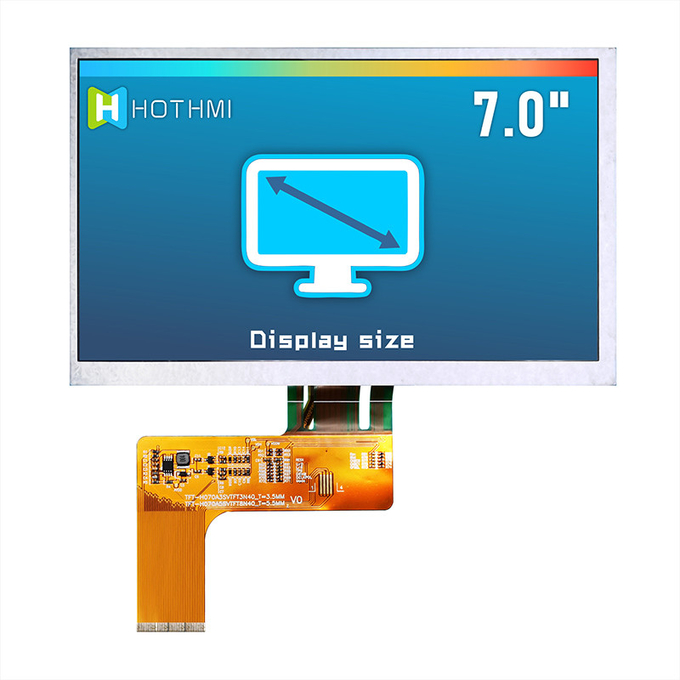

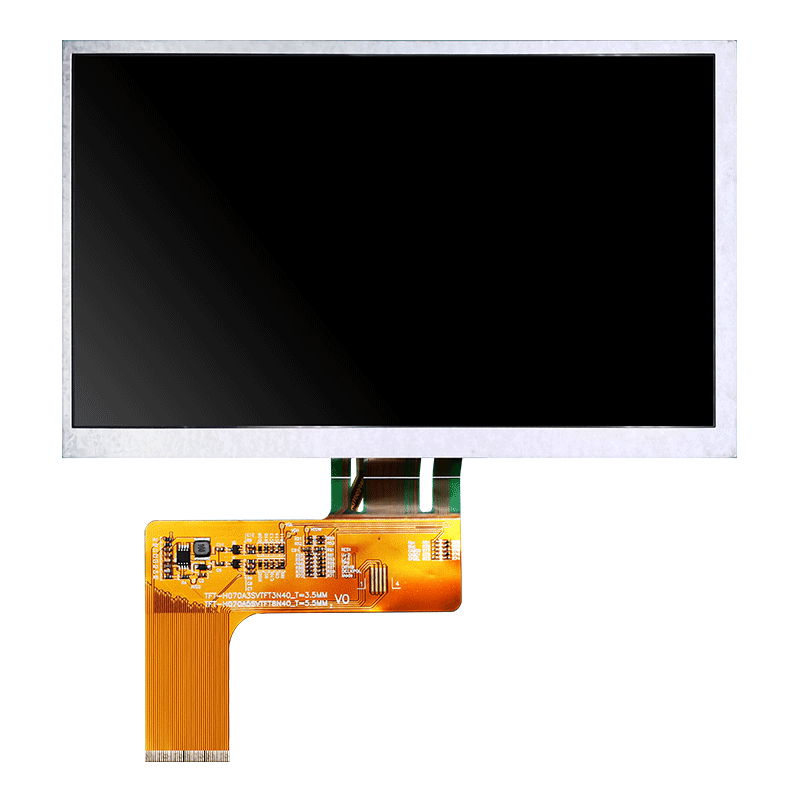

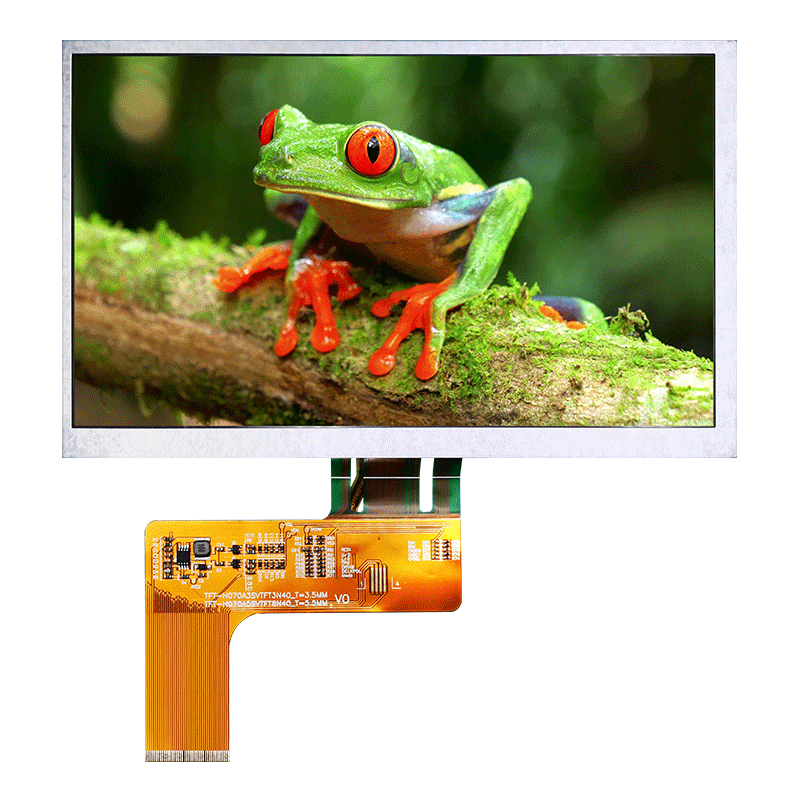

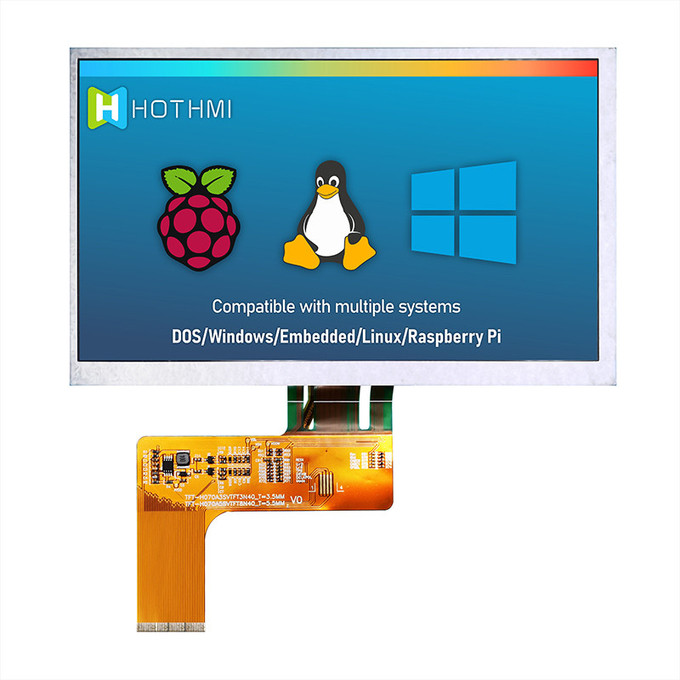

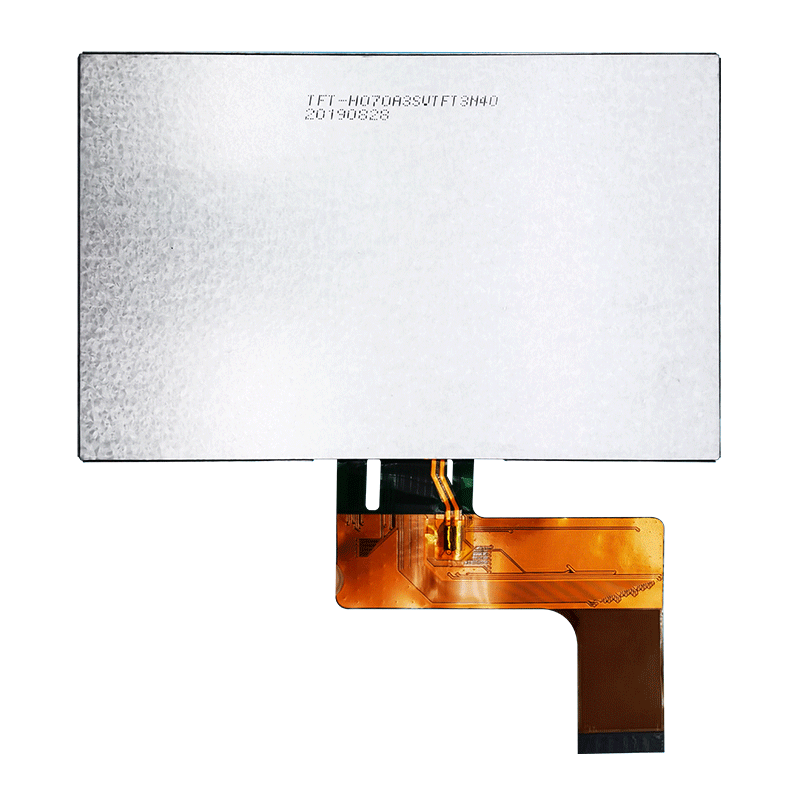

7.0英寸 800x480 TFT LCD 顯示屏 TTL接口 EK9716BD4+EK73002AB2
隆重推出TFT-H070A3SVTFT3N40- 一款可靠的 7.0 英寸 LCD 顯示器，具有 800x480 像素分辨率，專為工業控制應用而設計。
這款 TFT 顯示器采用耐用的構造和先進的驅動芯片技術，是任何工業控制系統的強大補充。 驅動芯片EK9716BD4+EK73002AB2
確保與各種控制系統的無縫兼容，使其易于集成到現有設置中。
顯示器的高分辨率和鮮艷的色彩輸出提供了清晰生動的觀看體驗，使用戶能夠輕松監控關鍵數據并做出明智的決定。
無論您是構建新的控制系統還是升級現有控制系統，TFT-H080A5HDIFT6N40 都是需要高性能和耐用性的工業應用的完美選擇。
General information
| Item | Specification | Unit | |
| Outline Dimension | 164.90×100.00×3.50mm | mm | |
| Display area | 153.84x85.632mm | mm | |
| Number of Pixel | 800(H) x 480(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | EK9716BD4+EK73002AB2 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO | Symbol | Description |
| 1 | LED K | LED Cathode |
| 2 | LED A | LED Anode(+9.6V/ 120mA) |
| 3 | GND | Ground |
| 4 | VDD | Analog Power(2.5 ~ 3.6 V) |
| 5- 12 | DR0-DR7 | Red data bus |
| 13-20 | DG0-DG7 | Green data bus |
| 21-28 | DB0-DB7 | Blue data bus |
| 29 | GND | Ground |
| 30 | PCLK | Clock signal for data latching |
| 31 | STBYB | Display on/off mode control |
| 32 | HSD | Horizontal sync input with negative polarity |
| 33 | VSD | Vertical sync input with negative polarity |
| 34 | DE | Input data enable control / no connection |
| 35 | NC | No Connect |
| 36 | GND | Ground |
| 37 | NC | No Connect |
| 38 | NC | No Connect |
| 39 | NC | No Connect |
| 40 | NC | No Connect |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

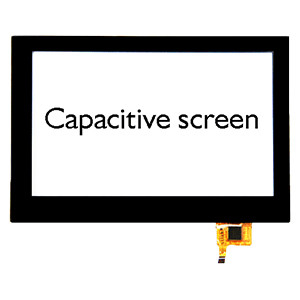

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

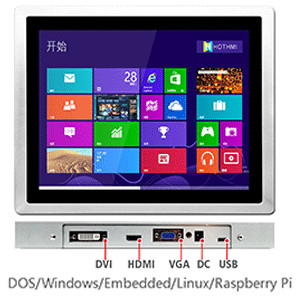

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
