  • Model : 10.1-inch IPS high brightness 1920x1200 pixel TFT color LCD module with HI driver board HTM-H101A4-HI

    Product type:HI driver-free module

    Show contents:1920x1200

    Outline size(mm) :230.2x150.0x4.4

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):216.81x135.5

    Product application:industrial control systems, portable electronic devices

    Visual angle:IPS

    Backlight type or brightness:1000cd/m2

    Interface mode:HI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~60℃

    Power supply voltage:12V

    PDF download
Product description

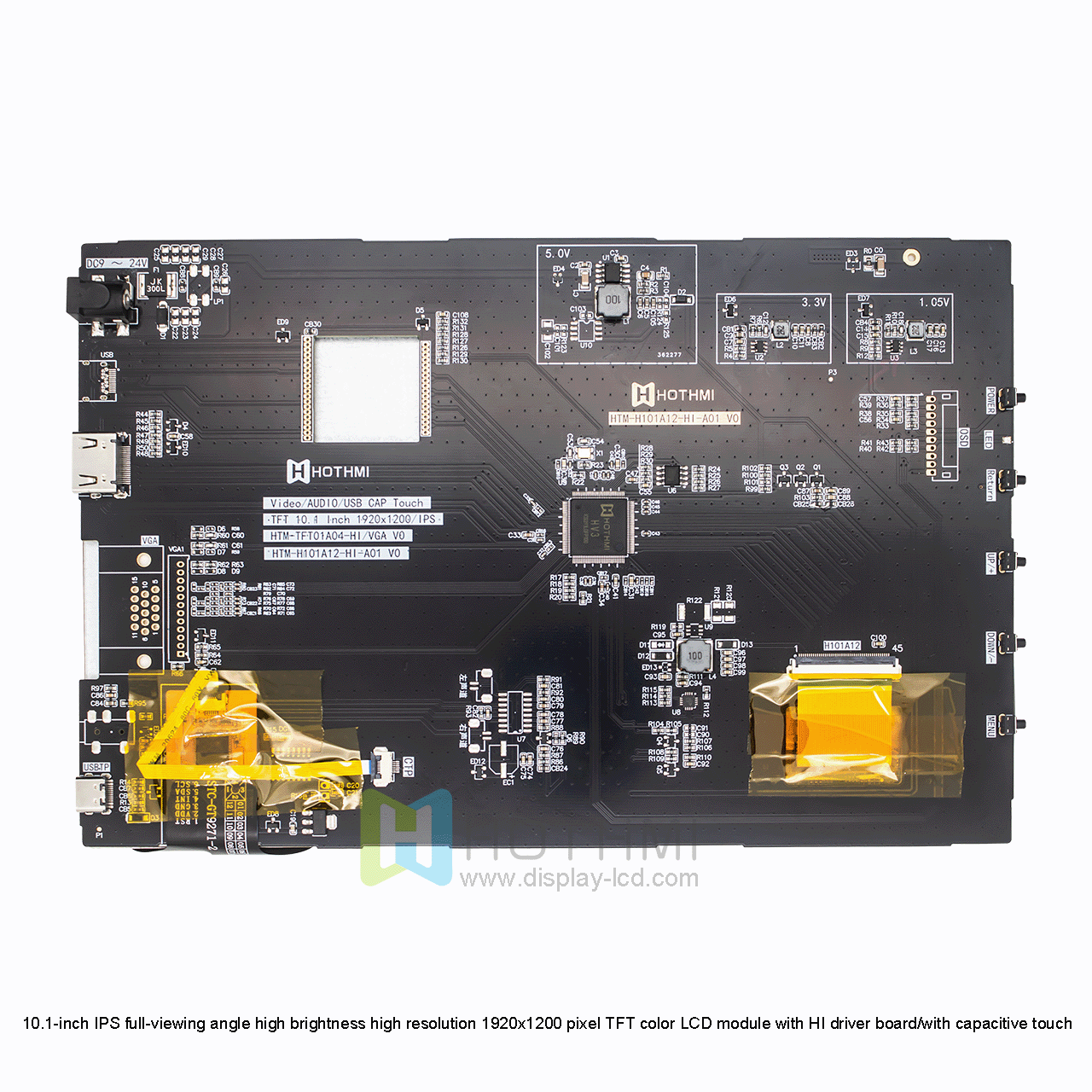

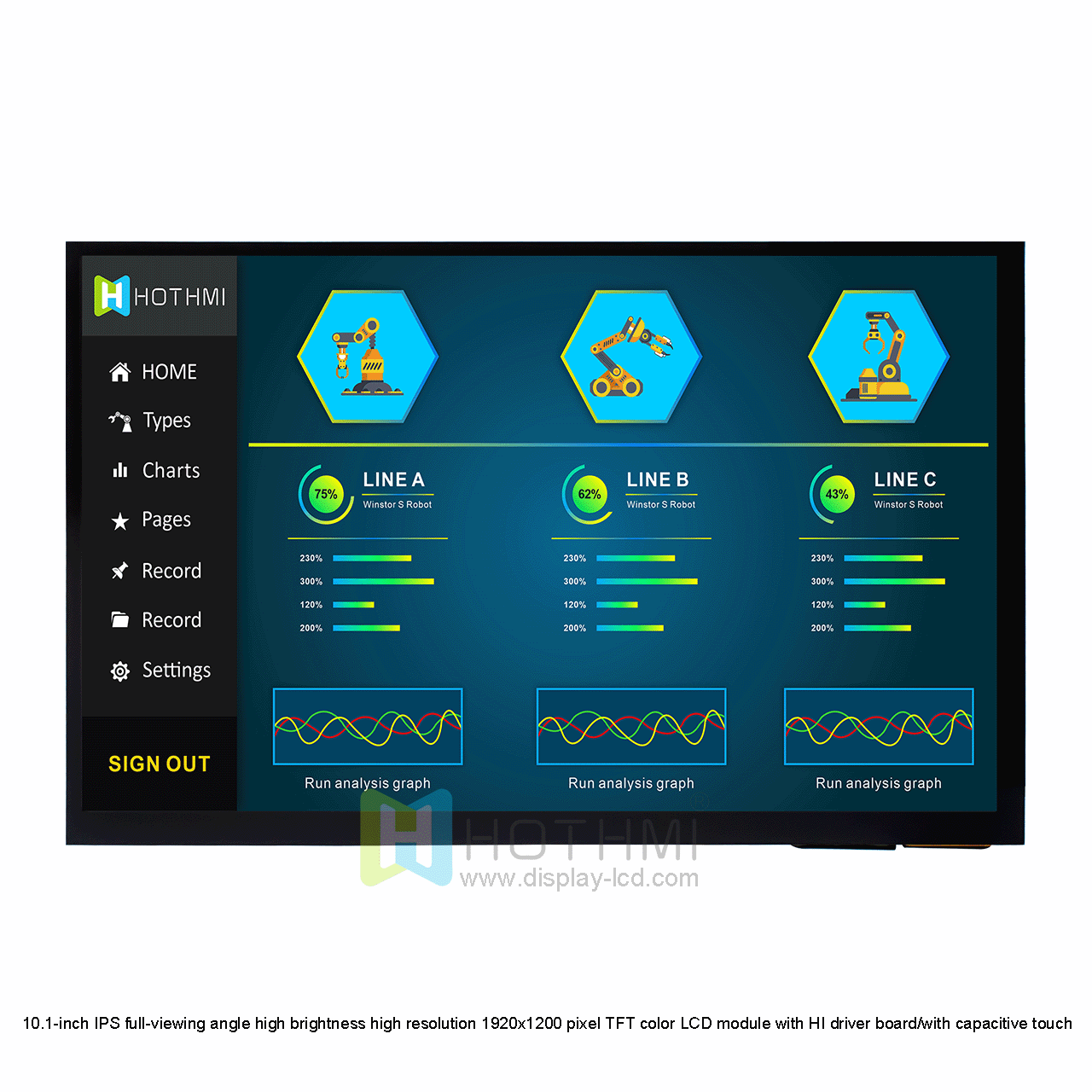

10.1-inch IPS full-viewing angle high brightness high resolution 1920x1200 pixel TFT color LCD module with HI driver board/with capacitive touch

HTM-H101A4-HI is a 10.1-inch color LCD display module with HI driver board, 1920x1200 resolution, optional resistive touch screen and capacitive touch screen, with USB interface driver board. In order to make it more convenient for customers to use, we have redesigned the HI driver board and integrated it with the display screen, which can save more space for customers. All materials meet environmental protection requirements and RoHS standards. This module is widely used in vehicles, security, various instruments and meters, smart devices, etc. Suitable for Raspberry Pi, etc. When used on Raspberry Pi, it is compatible with operating systems such as Raspbian, Ubuntu, WIN10 IOT, and supports single-chip touch. Desktop computers are compatible with Windows 7/8/8.1/10 and other systems, with optional capacitive touch and support 10-point touch. All materials meet environmental requirements RoHS standards.
