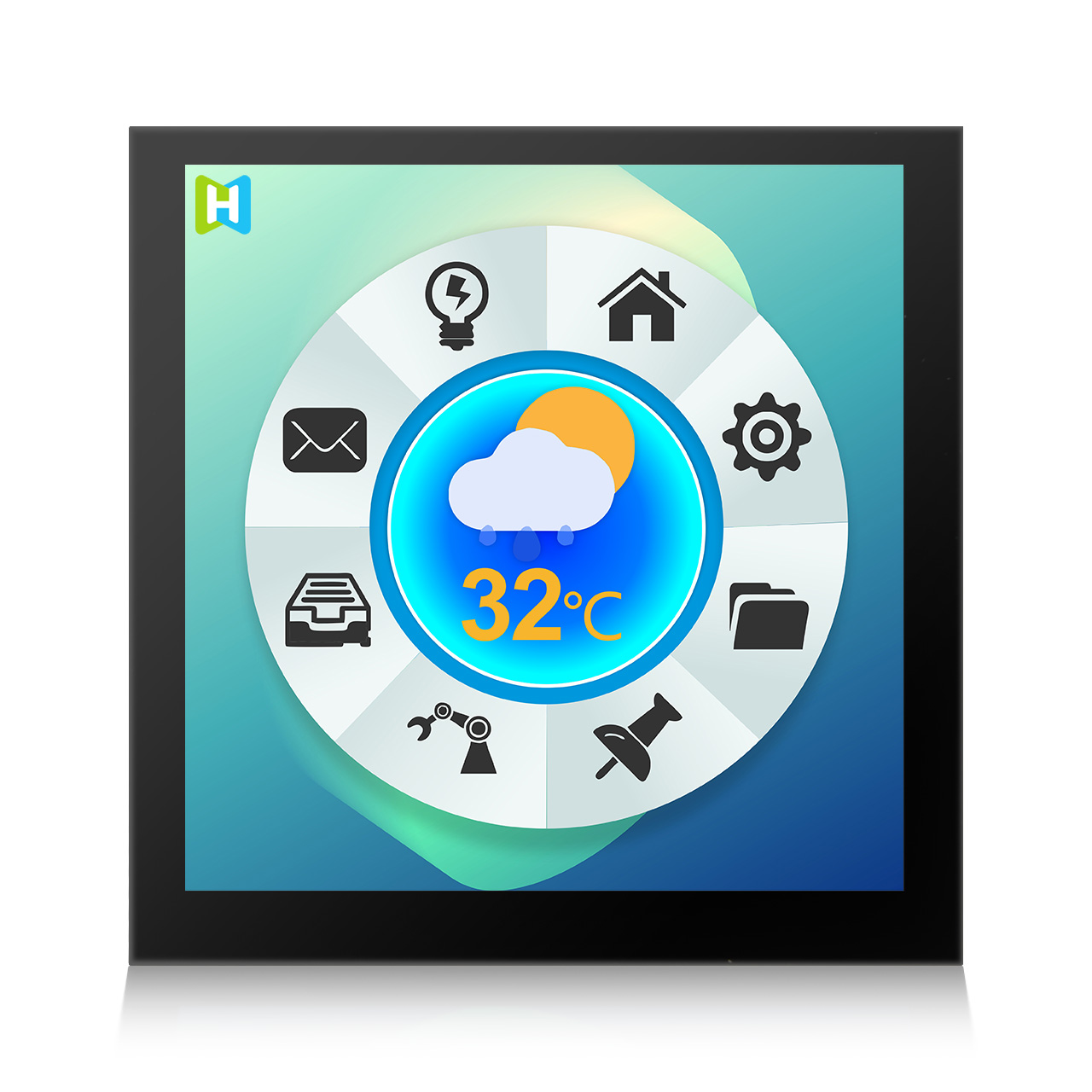

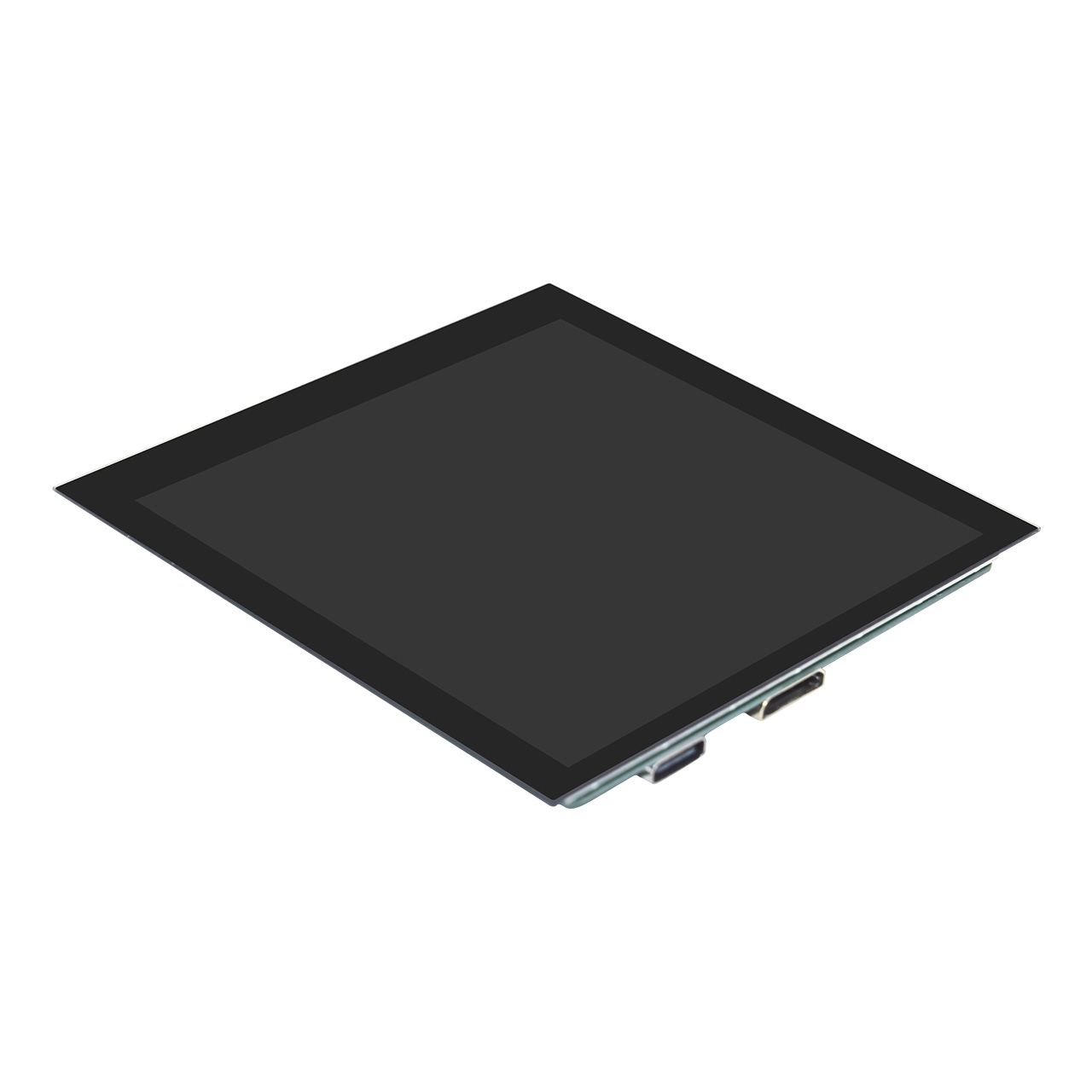

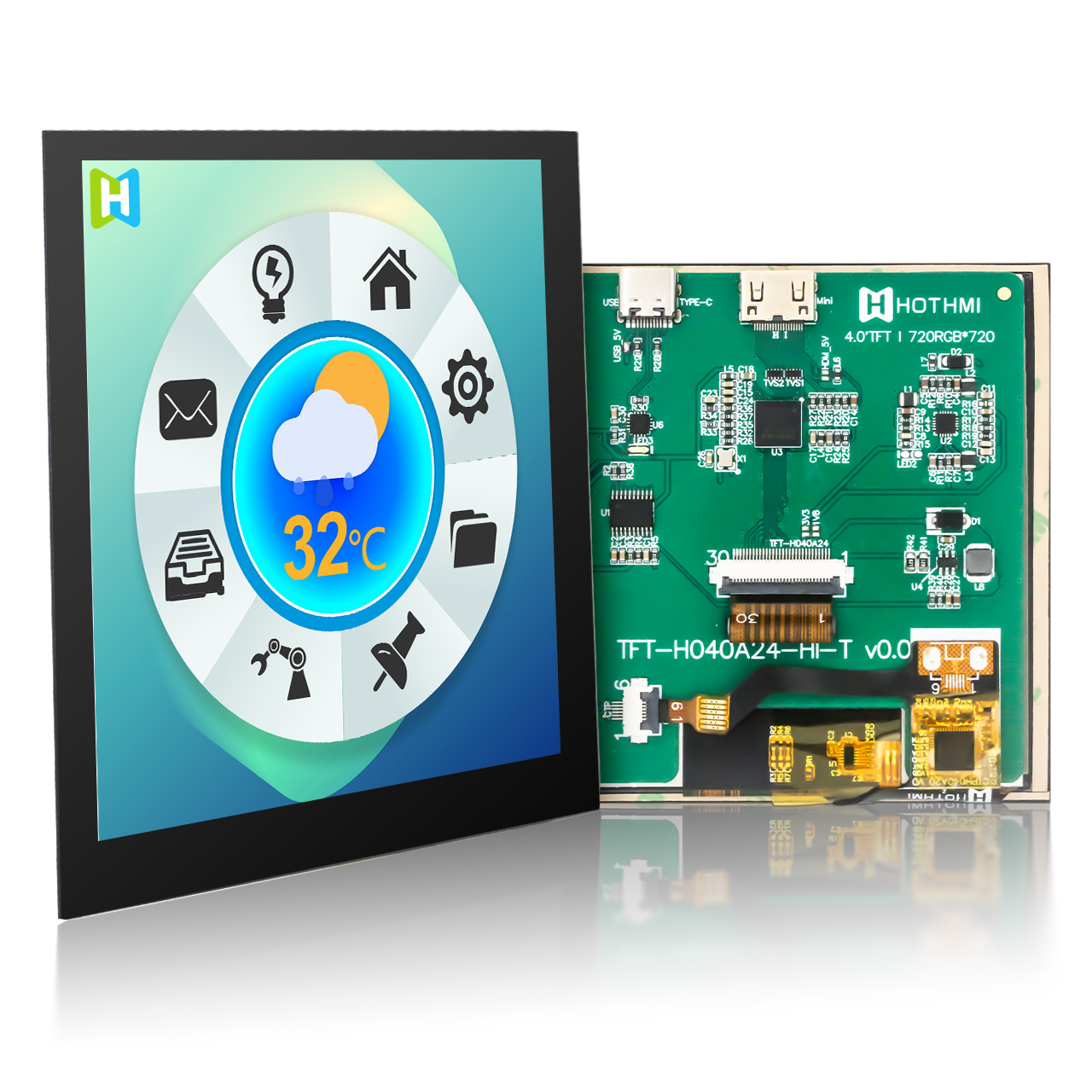

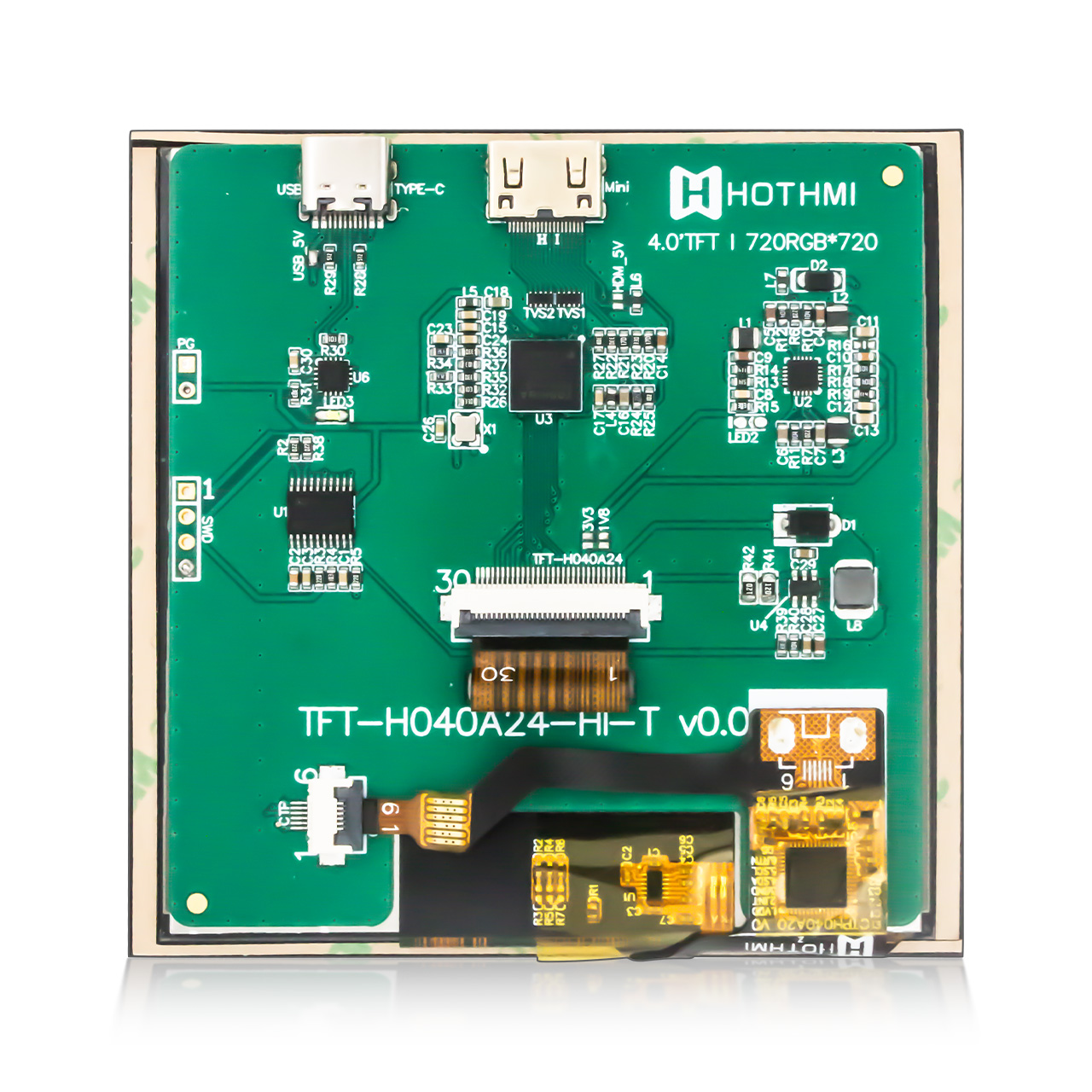

  • Model : 4.0 inch TFT LCD display Module | 720x720 IPS TFT Screen HTM-H040A24-HI-T V0.0

    Product type:TFT Module

    Show contents:720x720

    Outline size(mm) :84x84x0.7

    Size of View Window(mm):4.0

    Display size(mm) :4.0

    Effective size(mm):71.928x71.928

    Product application:technical equipment, office equipment, access control

    Visual angle:IPS

    Backlight type or brightness:350cd/m2

    Interface mode:HI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:5.0V

    PDF download
Product description

4.0-inchTFT high-definition full-viewing angle wide color gamut anti-ghosting industrial-grade LCD display

Model: TFT-H040A24-HI-T V0.0, 4.0-inchTFT high-definition full-viewing angle wide,normally black panel type, its name accurately integrates the core elements: 4.0 inches clearly defines the physical size, suitable for small devices; full viewing angles are marked with U85/D85/R85/L85 viewing angles, bringing a visual experience without blind spots; wide color gamut highlights color expression with NTSC 68% color gamut coverage; anti-image retention characteristics are designed for normally black panels, emphasizing anti-image retention technology; industrial-grade labels reflect weather resistance through a wide operating temperature range of - 20℃~+70℃, suitable for harsh environments. In addition, the name adds "normally black panel type" to clarify the technical route, which is different from the normally white panel.


For different scenarios, the naming can also be extended to "4.0-inch high-definition full-viewing angle TFT screen (for car/smart home)" for consumer electronics scenarios, "4.0-inch wide-temperature anti-afterimage industrial TFT touch screen" for industrial control scenarios, or "4.0-inch wide color gamut and high-brightness TFT advertising machine display" for commercial display scenarios. This not only ensures that the information is accurate and easy to identify, but also meets diverse needs through scenario-based naming. At the same time, differentiated technical points such as "anti-afterimage", "full viewing angle" and "industrial grade" are used to strengthen product memory and help users quickly capture core advantages.

HTM-H040A24-HI-T V0.0_page-0001.jpg
