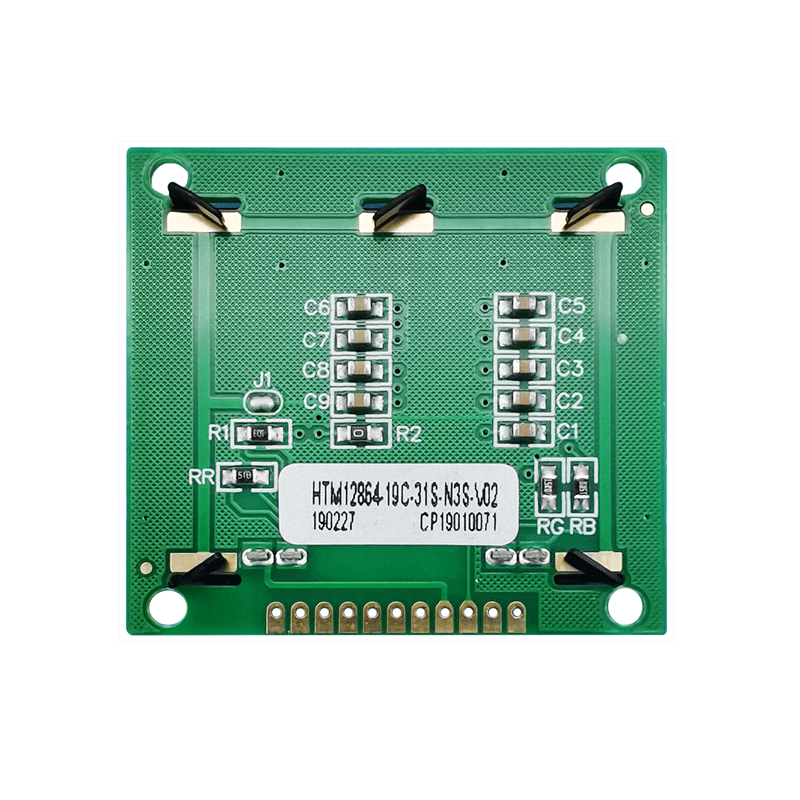

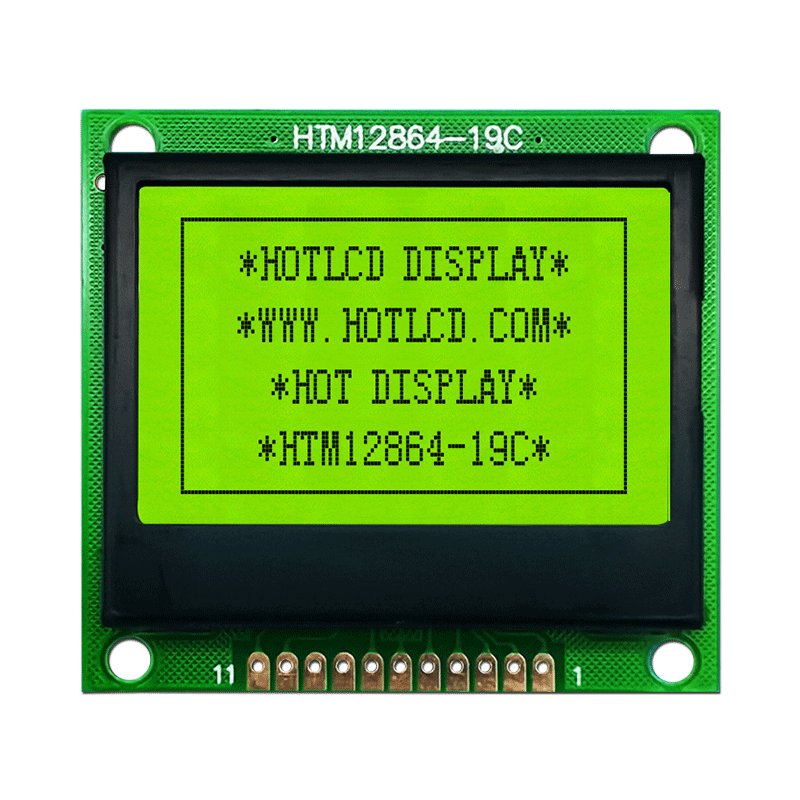

  • Model : 128x64 LCM Graphic/HTM12864-19C

    Product type：Graphic LCM

    Show contents：128x64

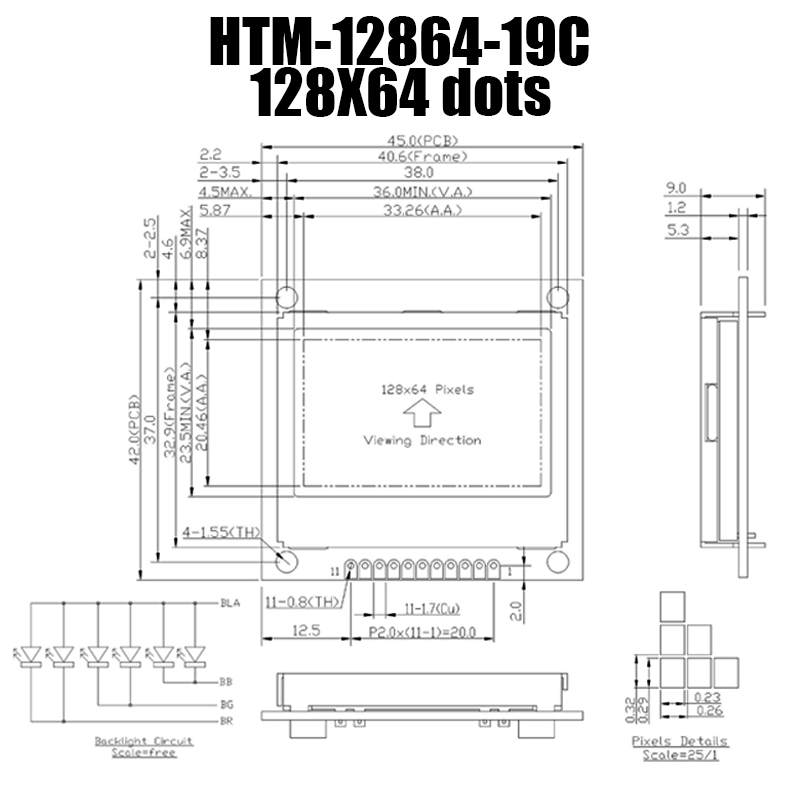

    Outline size(mm) ：45.0x42.0x9.0

    Size of View Window(mm)：36.0x23.5

    Display size(mm) ：33.26x20.46

    Point spacing(mm)：0.32x0.29

    Visual angle：6H

    Backlight type or brightness：RGB

    Connection PIN Number：11PIN

    Interface mode：SPI

    Working temperature：-20~70℃

    Power supply voltage：3.3V

    Driver chip model：ST7565R

Product description
