Product type：TFT LCD
Show contents：320x480

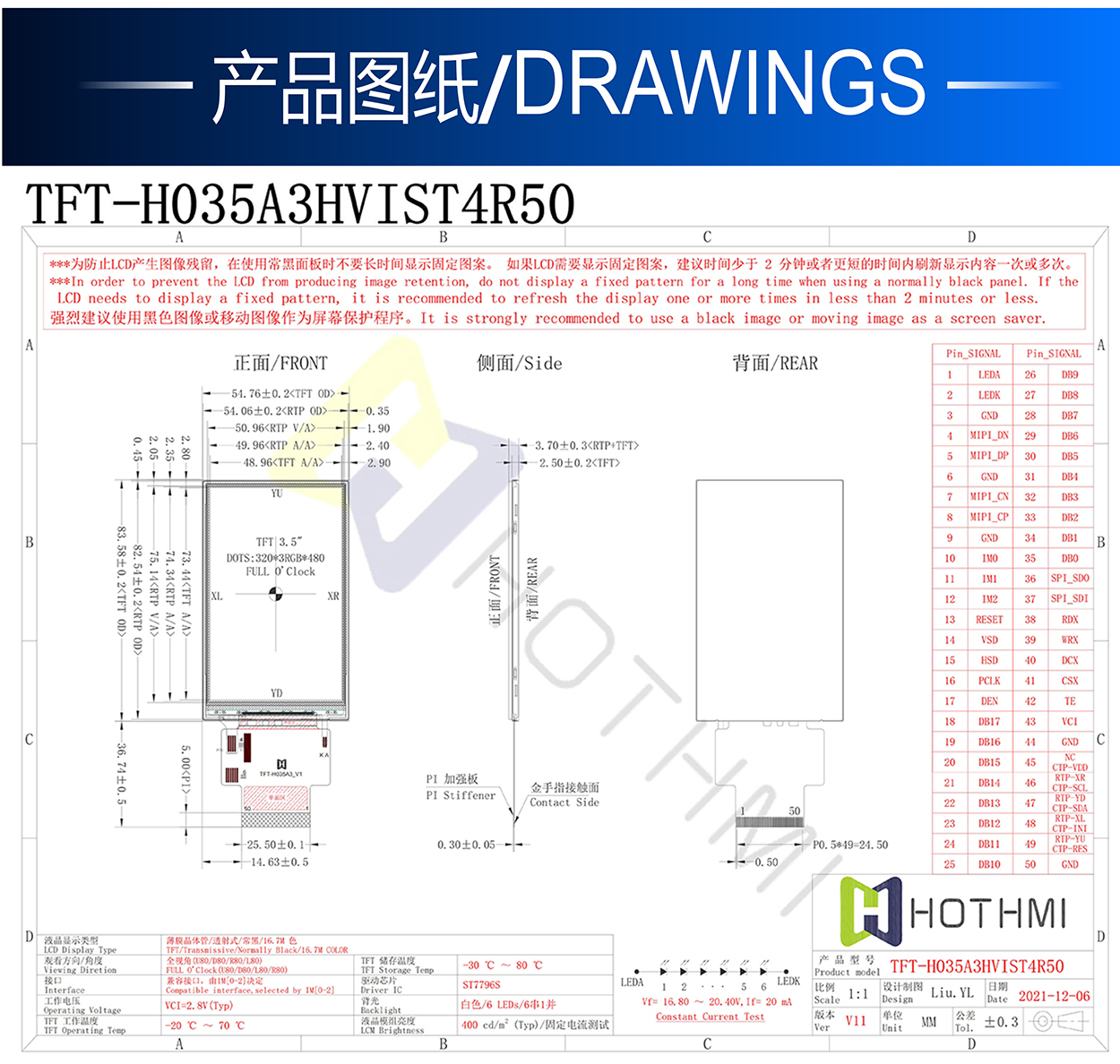

Outline size(mm) ：54.76x83.58x2.5
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：48.96x73.44
Product application：Industrial Display/Home Appliances
Visual angle：Full View
Backlight type or brightness：600cd/m2
Connection PIN Number：FPC-50PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3v
Driver chip model：ST7796S
Product Description The TFT-H035A3HVIST4R50 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected resistive touch screen with a resolution of 320X480 pixels. The module has built-in ST7796S driver IC, which supports MIPI fully compatible interface. TFT-H035A3HVIST4R50 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 800:1 (typical value), brightness 400 nits (typical value) value), glare panel, 1:1.5 aspect ratio. Support I2C interface and single touch function. The H035A3H model has a projected resistive touch panel (PCAP), and the TFT-H035A3HVIST4R50's supply voltage (VCC) is 2.5V to 3.0V, typically 2.8V. It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
