  • Model : 3.5''TFT/480*640Resolution/High brightness/TFT-T350MTVH-06

    Product type：TFT Module

    Show contents：480x640

    Outline size(mm) ：64.0x85.0x3.0

    Size of View Window(mm)：3.5

    Display size(mm) ：3.5

    Effective size(mm)：53.28x71.04

    Product application：數碼相機

    Visual angle：12H/9H

    Backlight type or brightness：1000cd/m2

    Connection PIN Number：FPC-20PIN

    Interface mode：MIPI

    Working temperature：-20~70℃

    Power supply voltage：2.8v

    Driver chip model：HX8363-A03&ICN6211

Product description

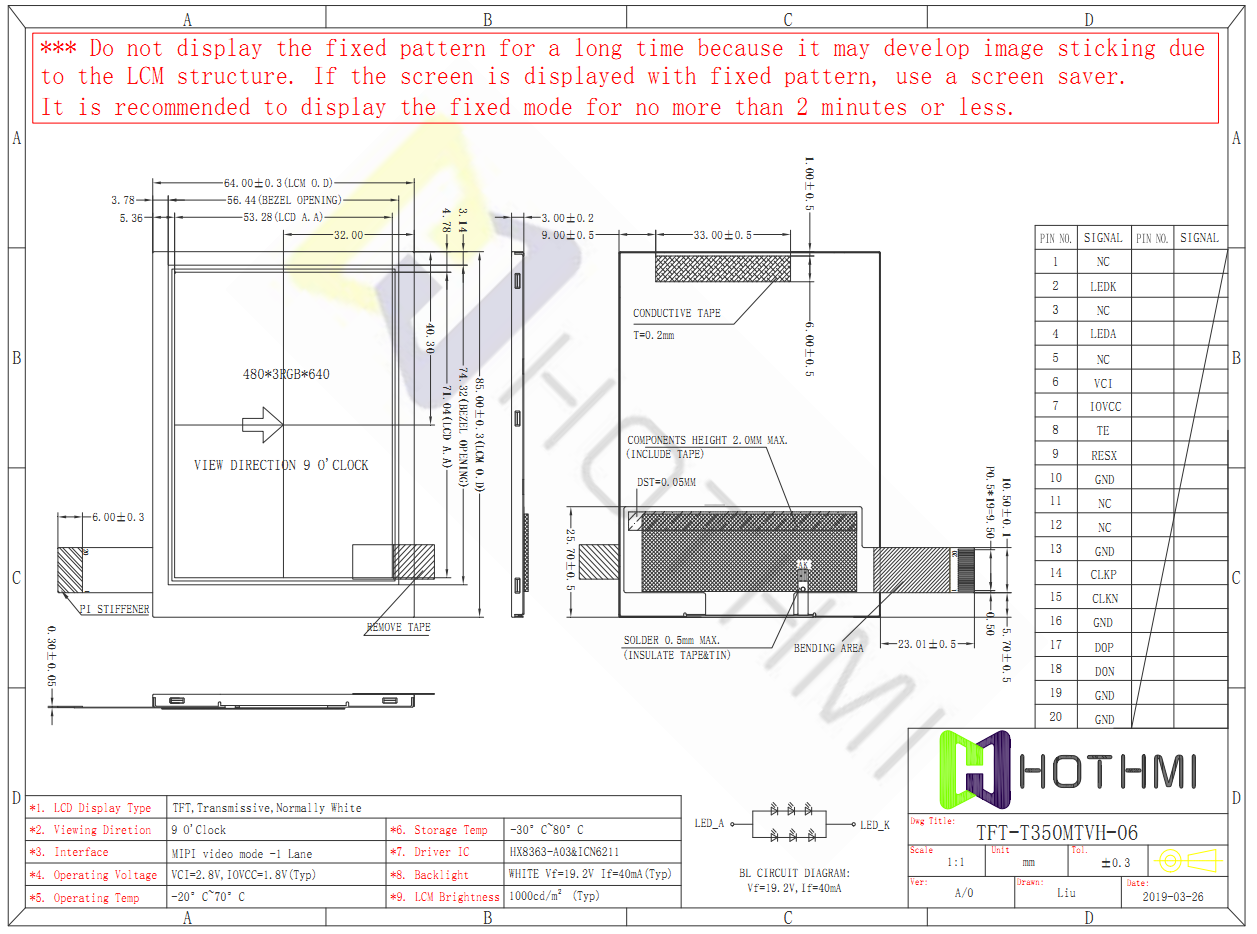

3.5''TFT/480*640Resolution/High brightness/TFT-T350MTVH-06 image.png
