Product type：TFT LCD

Show contents：1024x600

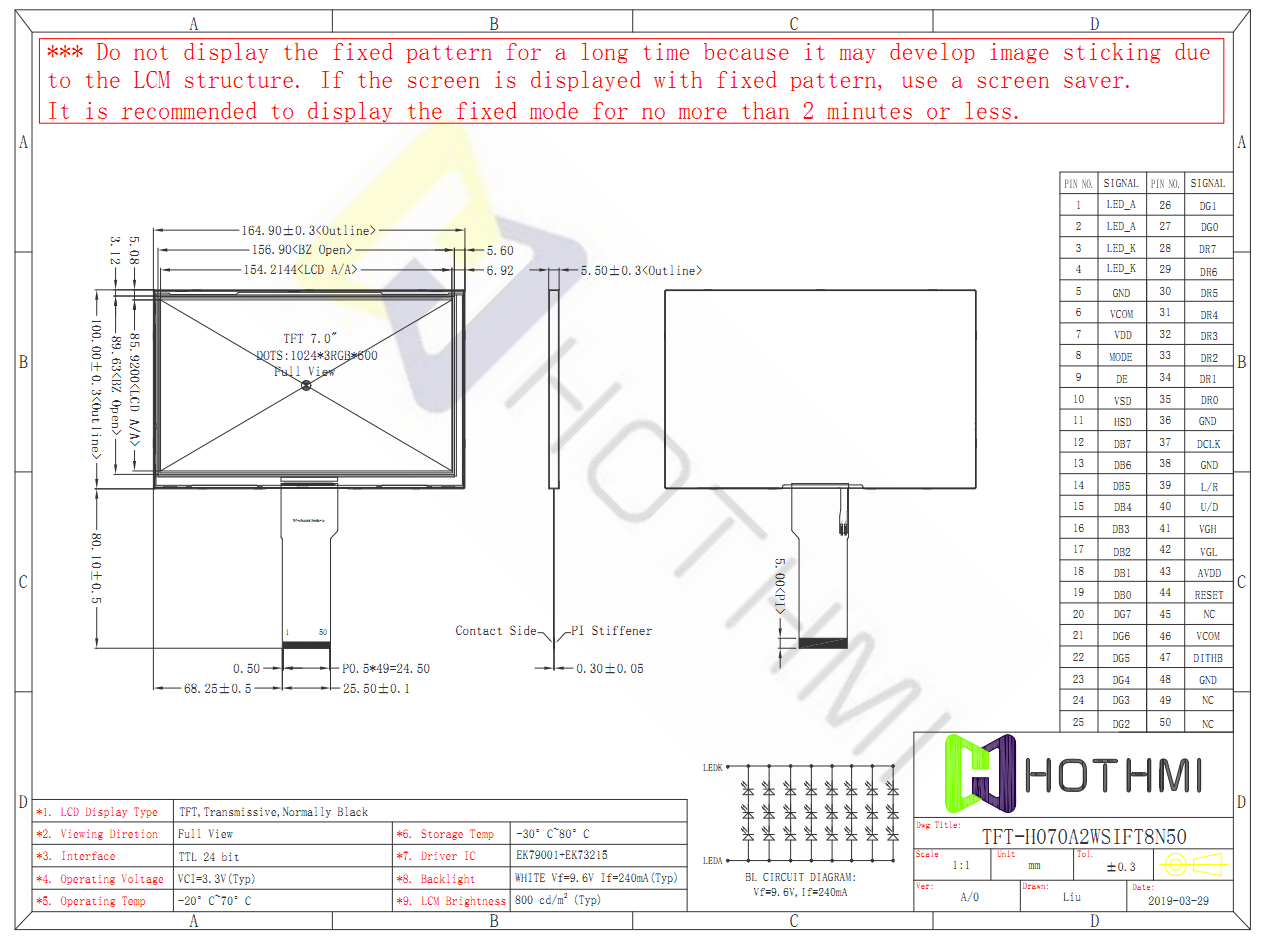

Outline size(mm) ：164.9x100.0x5.5

Size of View Window(mm)：7.0

Display size(mm) ：7.0

Effective size(mm)：154.21x85.92

Product application：Auto instrument, smart home

Visual angle：Full View

Backlight type or brightness：800cd/m2

Connection PIN Number：50PIN

Interface mode：RGB

Special instructions：Anti-static ESD 8KV

Working temperature：-20~70℃

Power supply voltage：3.3V

Driver chip model：EK79001+EK73215
