Location：Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  10.1寸TFT橫屏|1024*600IPS寬視角|RGB接口|厚度3.0普通亮度|TFT-H101A5WSIFT3N50
  • Model : 10.1 inch TFT horizontal screen|1024*600IPS wide viewing angle|RGB interface|thickness 3.0 normal brightness|TFT-H101A5WSIFT3N50

    Product type：TFT-LCD

    Show contents：1024x600

    Outline size(mm) ：235.0x143.0x3.0

    Size of View Window(mm)：10.1

    Display size(mm) ：10.1

    Effective size(mm)：222.72x125.28

    Product application：HMI

    Visual angle：Full view

    Backlight type or brightness：300cd/m2

    Connection PIN Number：50pin

    Interface mode：RGB

    Working temperature：-20-70℃

    Power supply voltage：3.3V

    Driver chip model：EK79001+EK73215

Product description

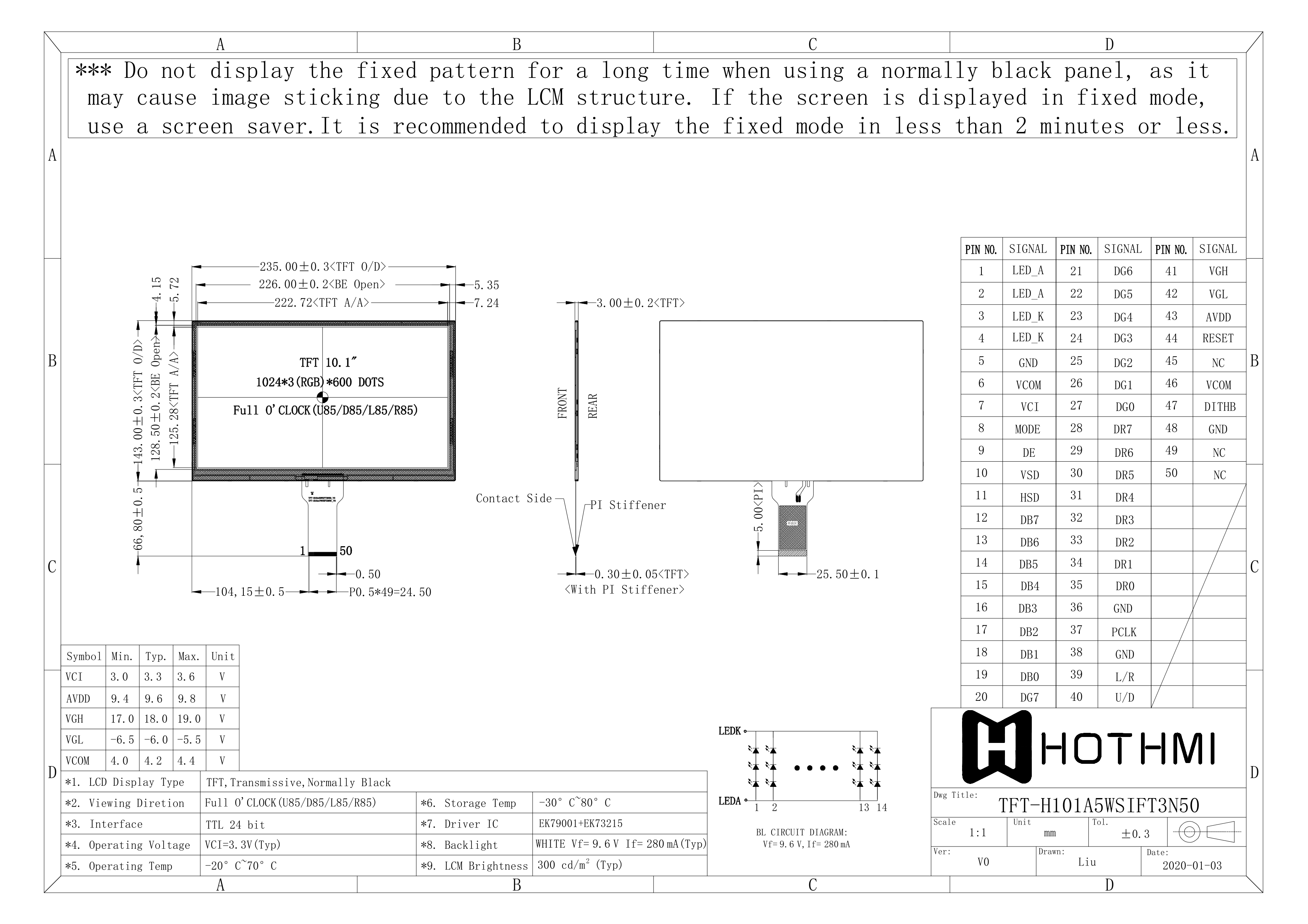

10.1 inch TFT horizontal screen|1024*600IPS wide viewing angle|RGB interface|thickness 3.0 normal brightness|TFT-H101A5WSIFT3N50TFT-H101A5WSIFT3N50_V0_1.png
