Product type：TFT LCD
Show contents：240x320

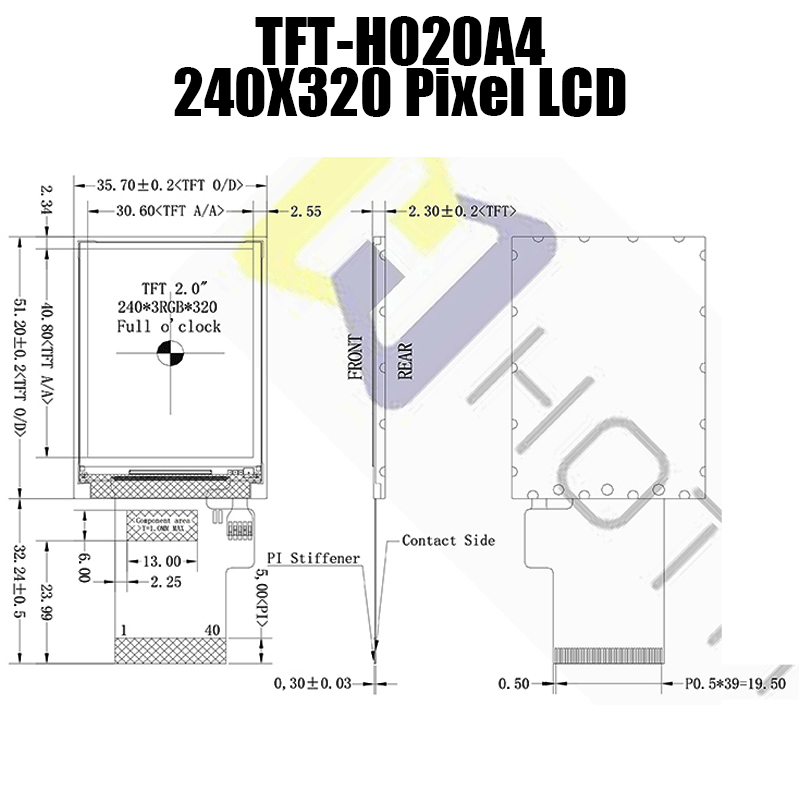

Outline size(mm) ：35.70×51.20×2.30
Size of View Window(mm)：2.0
Display size(mm) ：2.0
Effective size(mm)：30.60x40.80
Product application：Outdoor instrumentation, vehicle, industrial control
Visual angle：Full view
Backlight type or brightness：600cd/m2
Connection PIN Number：FPC-40PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：2.8V
Driver chip model：ST7789V

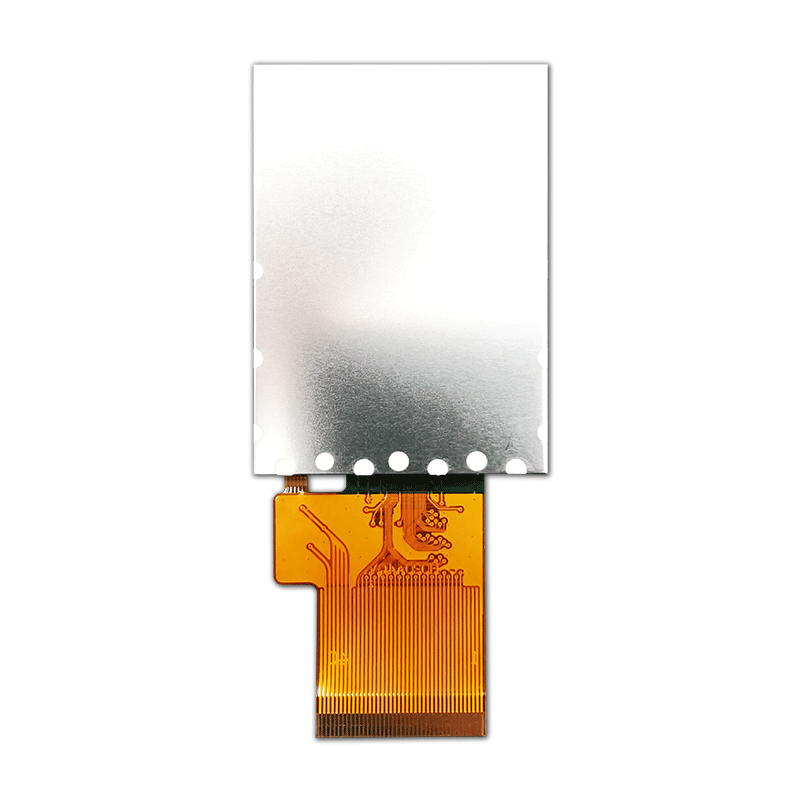

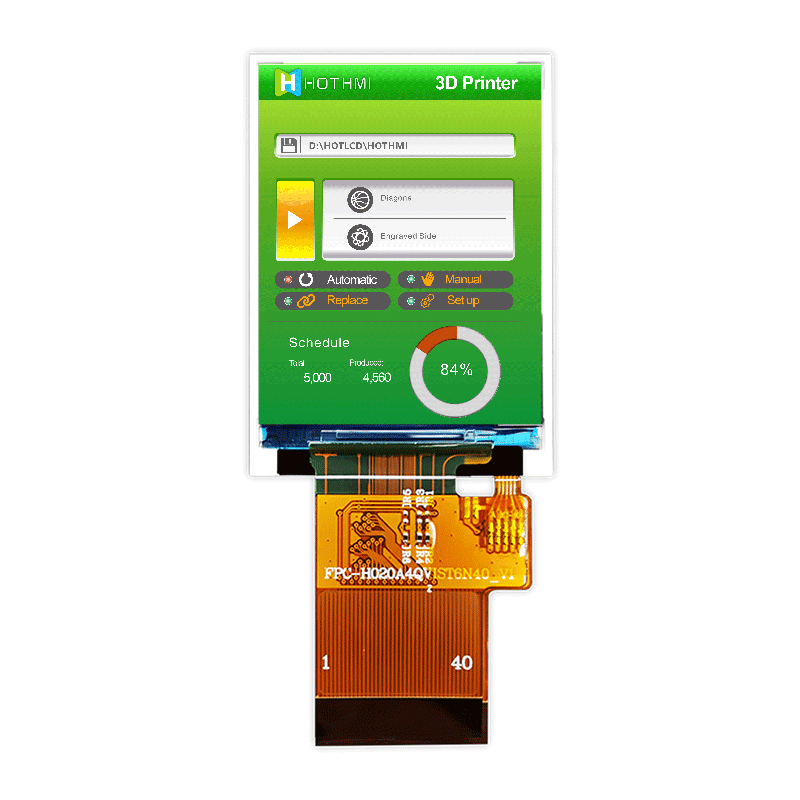

Product Description TFT-H020A4QVIST6N40 is a 2.0-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 3:4. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), typical contrast ratio is 800:1, and module brightness is up to 600 nits (typical value). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.
