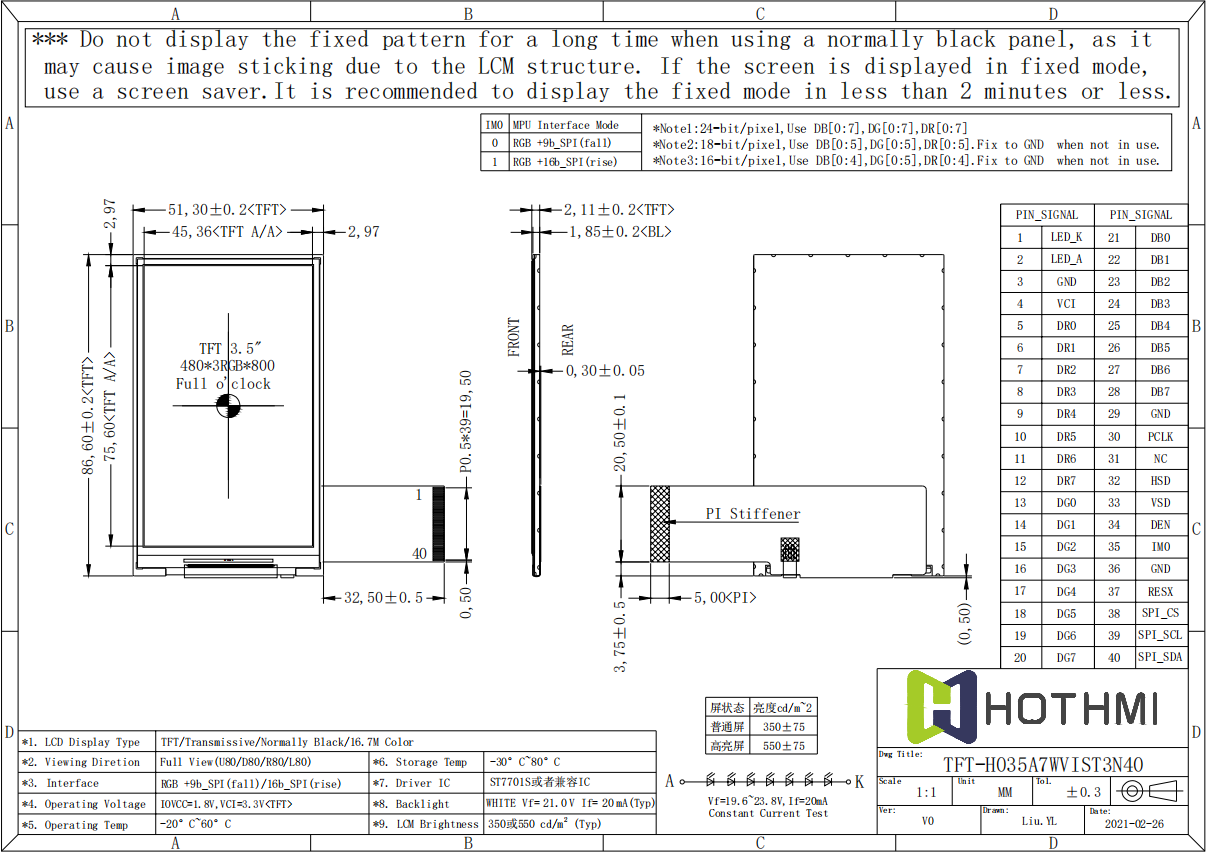

Product type：TFT vertical screen

Show contents：480x800

Outline size(mm) ：51.30x86.60x2.11

Size of View Window(mm)：3.5

Display size(mm) ：3.5

Effective size(mm)：45.36x75.60

Product application：Instruments and apparatus

Visual angle：Full View

Backlight type or brightness：500cd/m2

Connection PIN Number：FPC-40PIN

Interface mode：SPI

Special instructions：RGB +9b_SPI(fall)/16b_SPI(rise)

Working temperature：-20~70℃

Power supply voltage：3.3V

Driver chip model：ST7701S
