Product type：Built-in Chinese font library LCM

Show contents：128x64

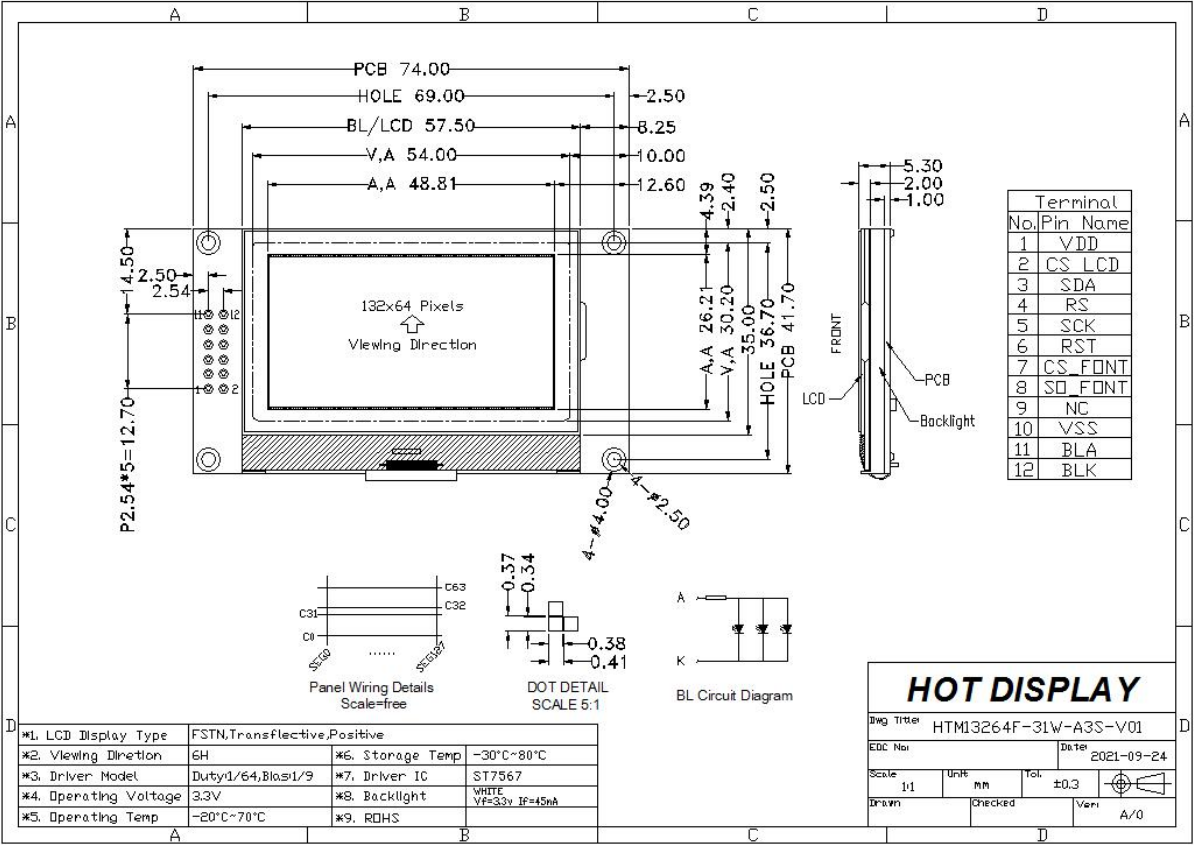

Outline size(mm) ：74.0x41.7x5.3

Size of View Window(mm)：54.0x30.2

Display size(mm) ：48.81x26.61

Point spacing(mm)：0.41x0.37

Product application：Instruments and apparatus

Visual angle：6H

Backlight type or brightness：White

Connection PIN Number：12PIN

Interface mode：48.81x26.61

Special instructions：3V/5V optional

Working temperature：3V/5V optional

Power supply voltage：3.3V

Driver chip model：ST7567
