Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.8寸TFT彩屏| VGA 480*640分辨率|全視角IPS工藝|MIPI接口|TFT-H028A10VGIST6N20

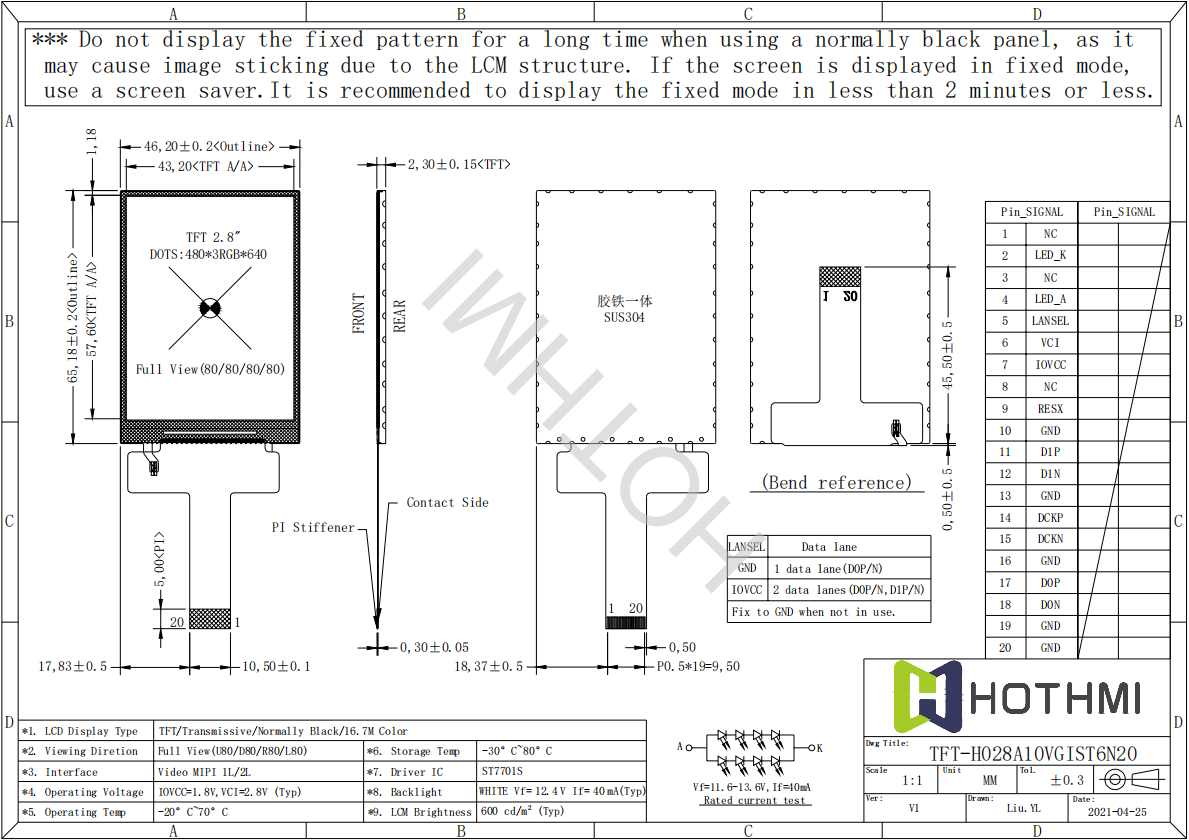

  • Model : 2.8 inch TFT | VGA 480*640 | IPS | MIPI interface| TFT-H028A10VGIST6N20

    Product type:TFT LCD

    Show contents:480x640

    Outline size(mm) :46.20x65.18x2.3

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.20x57.60

    Product application:Portable equipment, industrial equipment

    Visual angle:Full View

    Backlight type or brightness:600cd/m2

    Connection PIN Number:20pin

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70

    Power supply voltage:2.8V

    Driver chip model:ST7701S

Product description
