Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.8寸TFT彩屏| QVGA 240*320分辨率|MCU接口|TFT-H028B9QVTST3N40
  • Model : 2.8 inch TFT | QVGA 240*320 | MCU interface| TFT-H028B9QVTST3N40

    Product type:TFT LCD

    Show contents:240x320

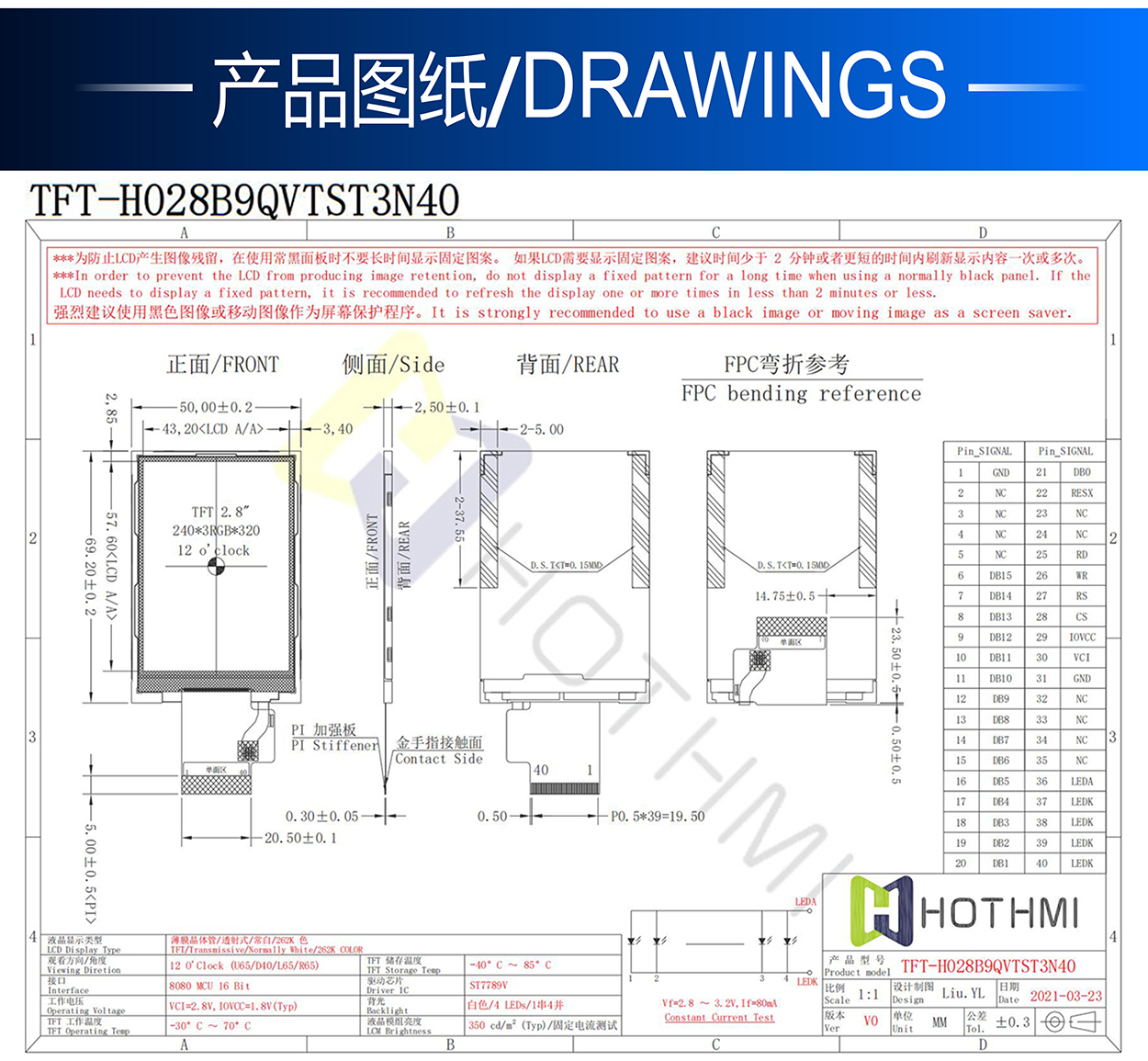

    Outline size(mm) :50.00x69.20x2.5

    Size of View Window(mm):2.8

    Display size(mm) :2.8

    Effective size(mm):43.20x57.60

    Product application:Portable equipment, industrial equipment

    Visual angle:12 O'Clock

    Backlight type or brightness:350cd/m2

    Connection PIN Number:40pin

    Interface mode:MCU

    Special instructions:16BIT

    Working temperature:-20~70

    Power supply voltage:2.8V

    Driver chip model:ST7789V

Product description

TFT-H028B9QVTST3N40 is a 2.8-inch TFT color LCD screen carefully designed by HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU interface, 40PIN external FPC can be connected Mainboard (optional connector), single power supply DC 2.8V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
