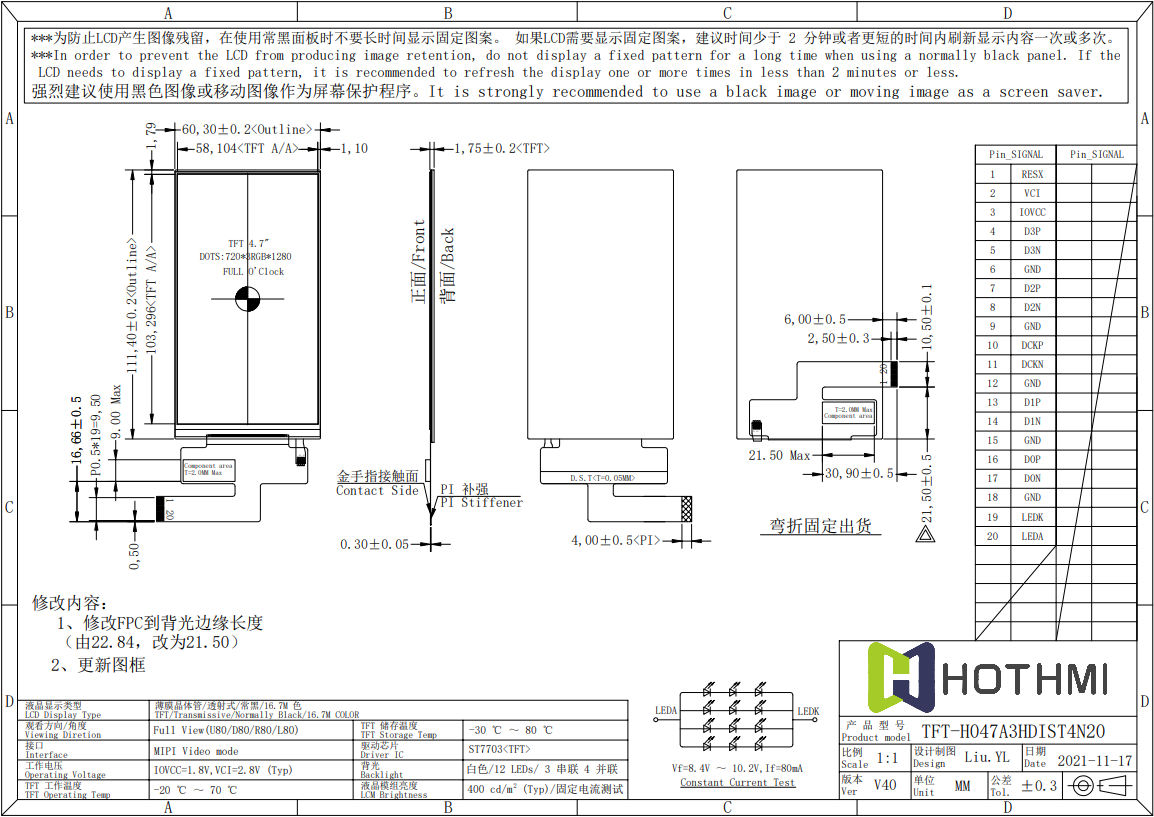

  • Model : 4.7 inch oximeter standard screen/720*1280 resolution/TFT-H047A3HDIST4N20

    Product type:TFT Vertical screen

    Show contents:720x1280

    Outline size(mm) :60.3x111.4x1.75

    Size of View Window(mm):4.7

    Display size(mm) :4.7

    Effective size(mm):58.104x111.40

    Product application:Instruments and apparatus

    Visual angle:全視角

    Backlight type or brightness:400cd/m2

    Connection PIN Number:FPC-20PIN

    Interface mode:MIPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7703
