Location:Home  >  Product center  >  TFT display  >  TFT display standard products | Full-view TFT color screen | High-brightness series TFT  >  5.0寸TFT彩色液晶屏/800*480分辨率/全視角IPS工藝|高亮 陽光下可視/LVDS接口/TFT-H050A7SVISTKN40
  • Model : 5.0 inch TFT color LCD screen / 800*480 resolution / full viewing angle IPS process | high brightness visible in sunlight / LVDS interface/TFT-H050A7SVISTKN40

    Product type:TFT LCD

    Show contents:800x480

    Outline size(mm) :120.7x75.8x2.9

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):108.0x64.80

    Product application:Instrumentation

    Visual angle:Full View

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:LVDS

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7262

    PDF download
Product description

Product Description

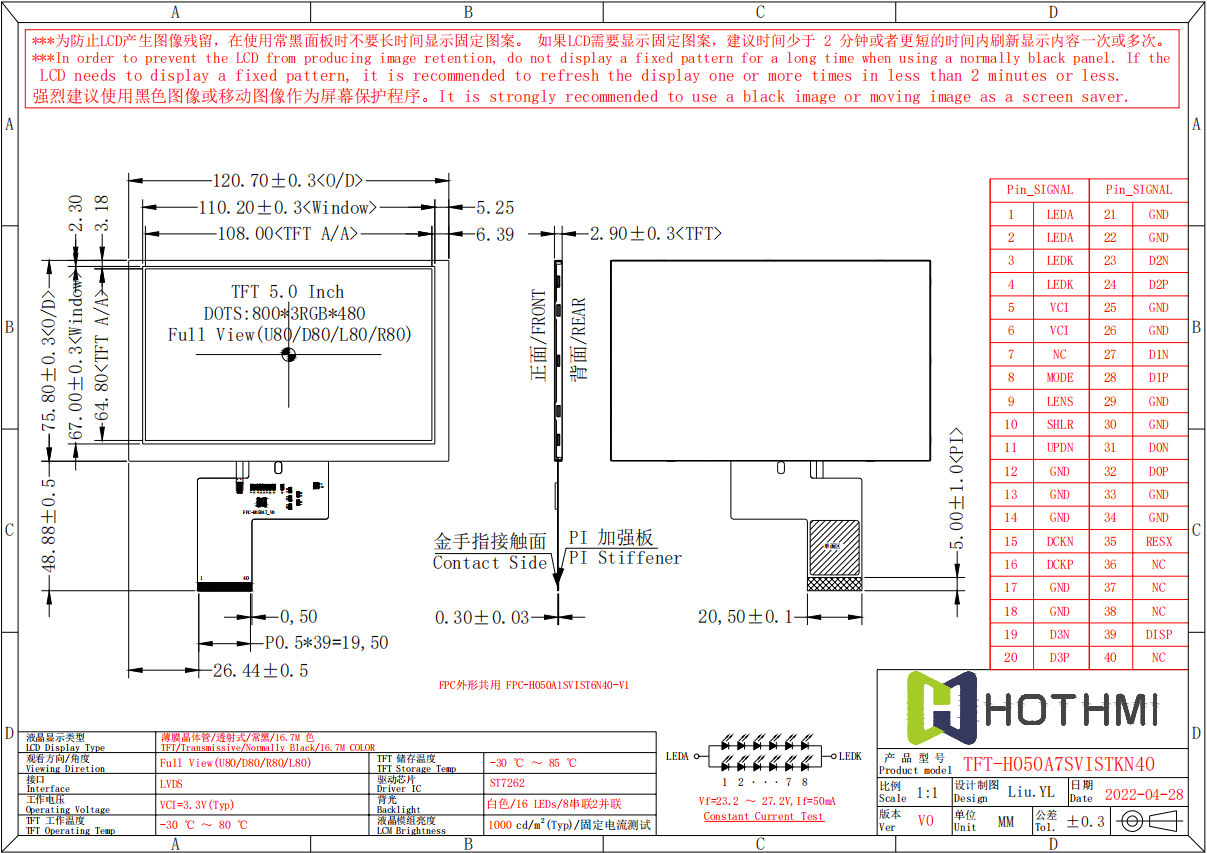

TFT-H050A7SVISTKN40 is a 5-inch TFT LCD module with IPS panel technology. This TFT-LCD has a resolution of 800 x 480 pixels. The TFT-H050A7SVISTKN40 module has built-in ST7262 driver IC, supports LVDS interface, the contrast ratio is 1000 (typical value), and the module brightness is 1000 nits (typical value). The H050A7 adopts IPS panel technology, and the viewing angle is wider than TN glass. Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees, the color is vivid, and it has a high-quality picture with saturation and naturalness. The driving voltage of the H050A7 module is 3.3V, normal black/transmissive LCD, matte glass, and the aspect ratio of the screen is 16:9. The operating temperature of this module is -30°C to +80°C, and the storage temperature is -30°C to +80°C. If the customer's product application needs to use high-brightness TFT, the TFT-H050A7SVISTKN40 module can be selected, and its module brightness is 1000 nits (typ.). The H050A7 series also has resistive (RTP) and capacitive touch panel (CTP) options.image.png
