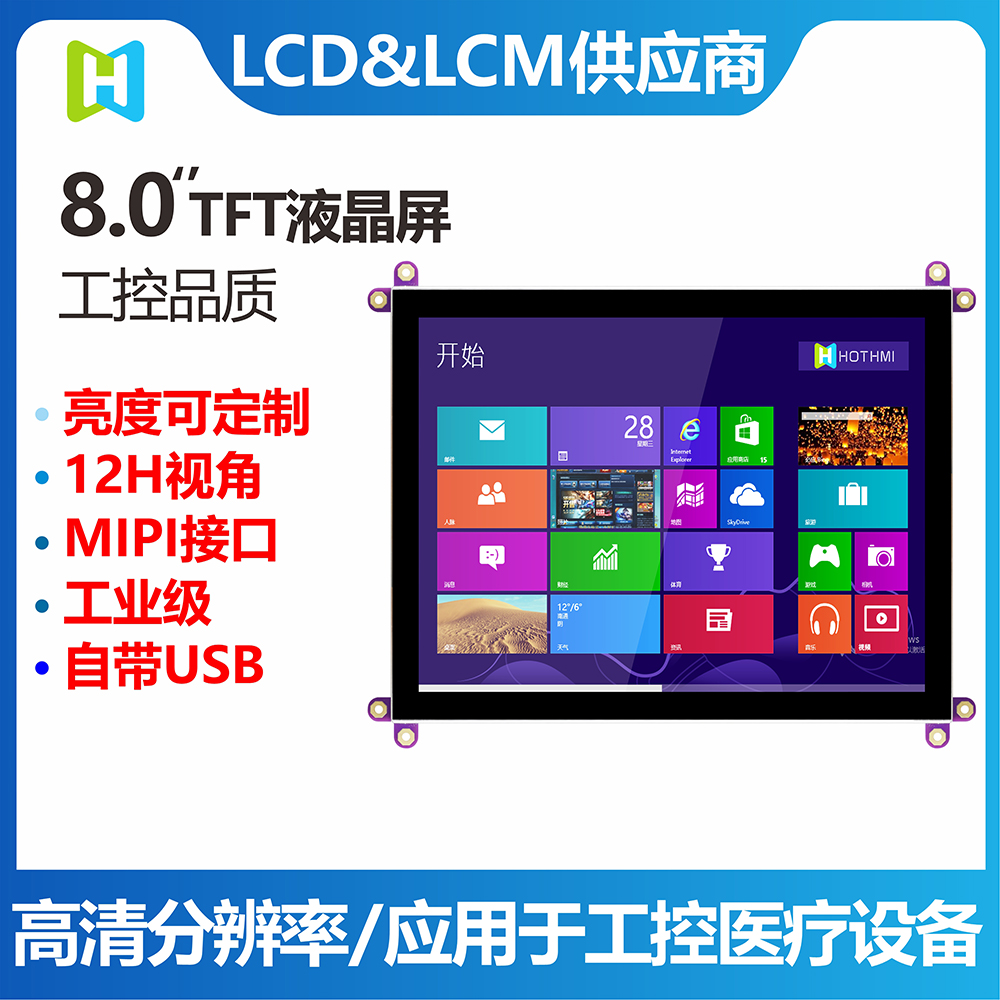

  • Model : 8.0 INCH TFT DISPLAY With USB Cap Touch

    Product type: DISPLAY

    Show contents:1024x768

    Outline size(mm) :203x161

    Size of View Window(mm):8.0

    Display size(mm) :8.0

    Effective size(mm):162.05x121.54

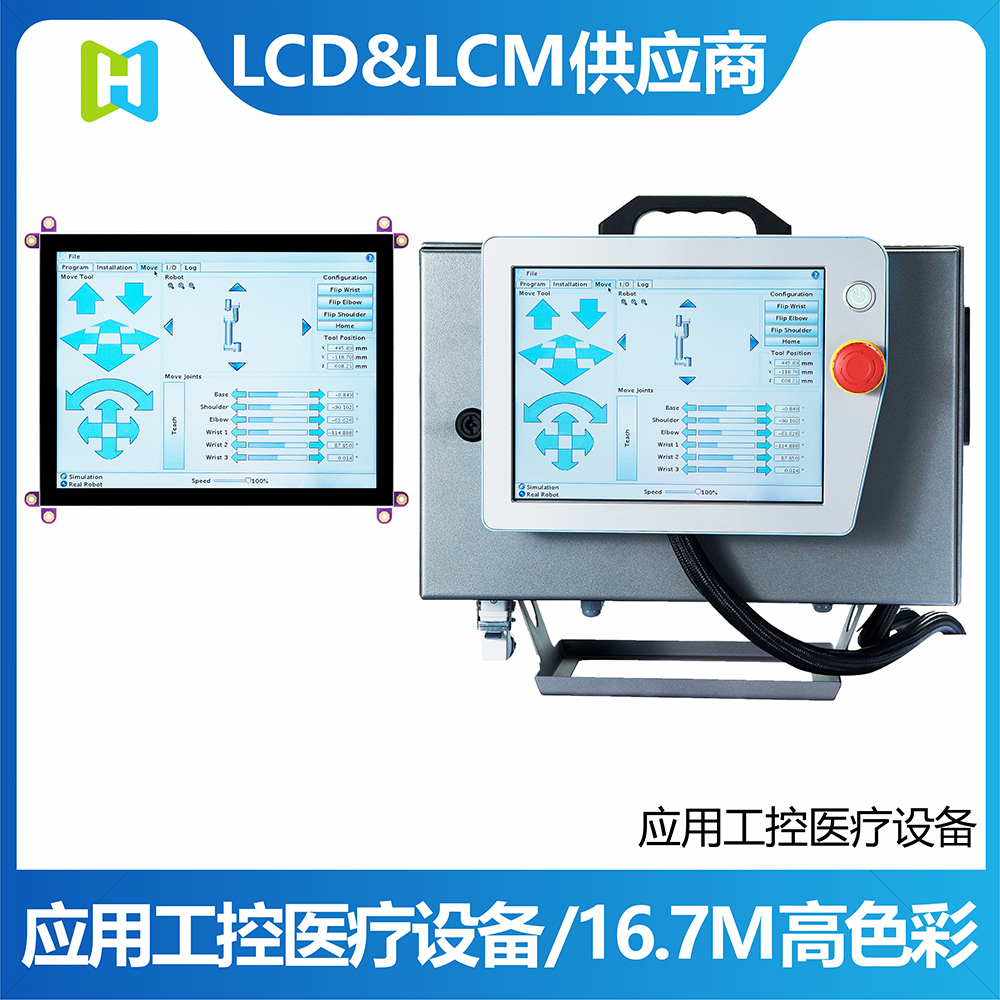

    Product application:Industrial display

    Visual angle:12H

    Backlight type or brightness:650

    Interface mode:VGA

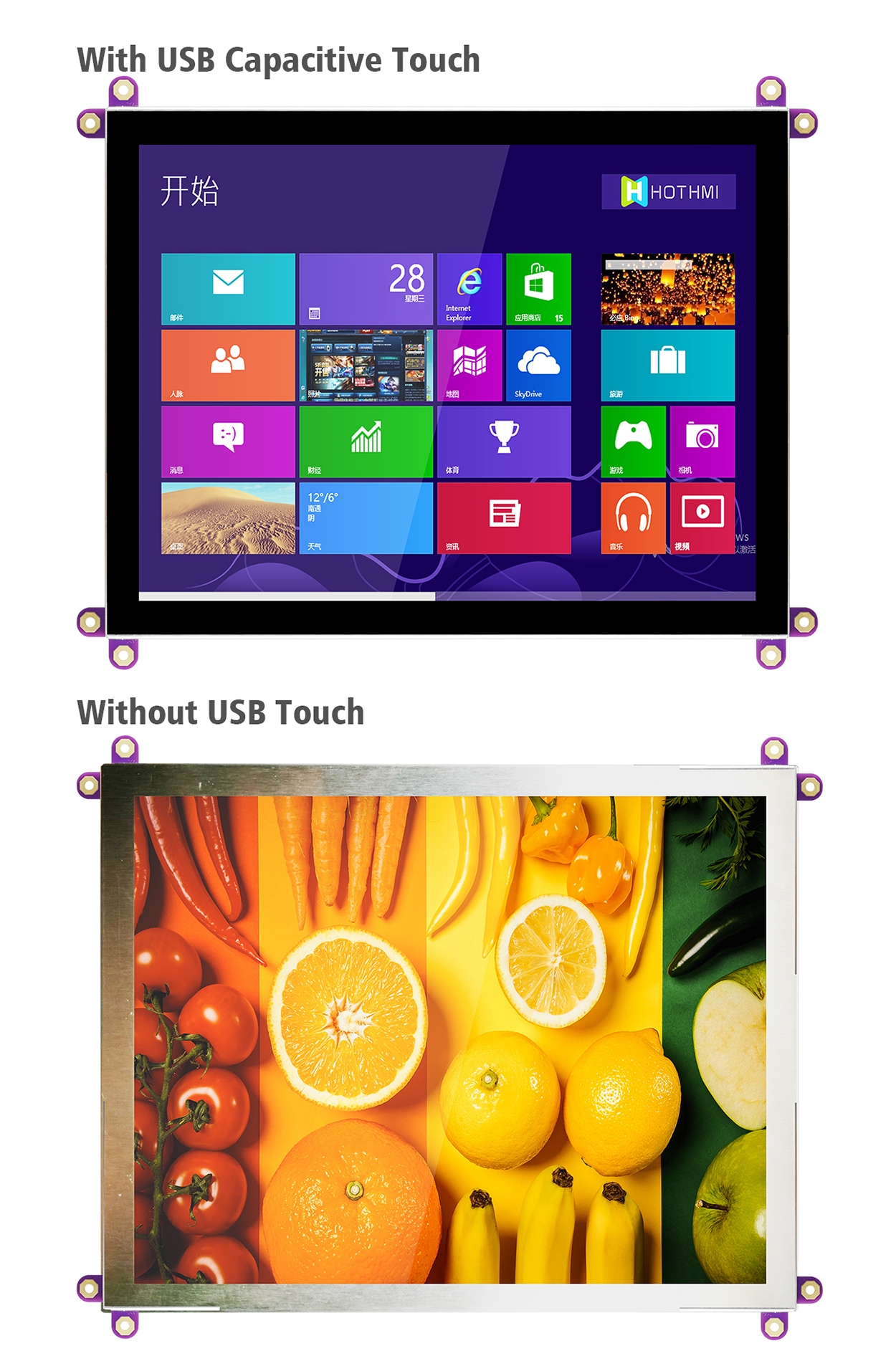

    Special instructions:With USB Cap Touch

    Working temperature:-20~70℃

    Power supply voltage:9~24V

Product description

Product Description Model: 8.0 inch  display+USB capacitive touch/1024x768 resolution/full viewing angle/VGA interface/TFT-080T61XGHDVUSDC


TFT-080T61XGHDVUSDC is a high-brightness 8-inch IPS TFT-LCD monitor that supports  signal interface. The resolution of this TFT module is XGA 1024x768. The control board of this module is designed to support  signal interface (only DVI) and 40-pin GPIO interface, which makes it more convenient for developers using Raspberry Pi. TFT-080T61XGHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80/down: 80/left: 80/right: 80 degrees, TFT module built-in TFP401 controller IC can support  signal interface (only DVI), this module Featuring a high brightness of 650 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), the TFT-080T61XGHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP) that supports one USB interface. The IC can support 5-finger touch indicators. TFT-080T61XGHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 9V-24v. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports embedded system with  signal interface, TFT-080T61XGHDVUSDC adopts 8-inch IPS TFT panel with wide viewing angle and high-definition display. The screen is also equipped with a high resolution of 1024x768. The module responds quickly and is compatible with most development software. It is ideal for various product applications, especially human-machine interfaces or POS systems, etc.
