  • Model : 10.1inch 1920x1200 IPS VGA TFT Module Sunlight Readable/HTM-H101A04

    Product type:TFT LCD

    Show contents:1920x1200

    Outline size(mm) :230.20x150.00x21.55

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):216.81x135.50

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Interface mode:VGA

    Special instructions:Anti-static ESD 8KV

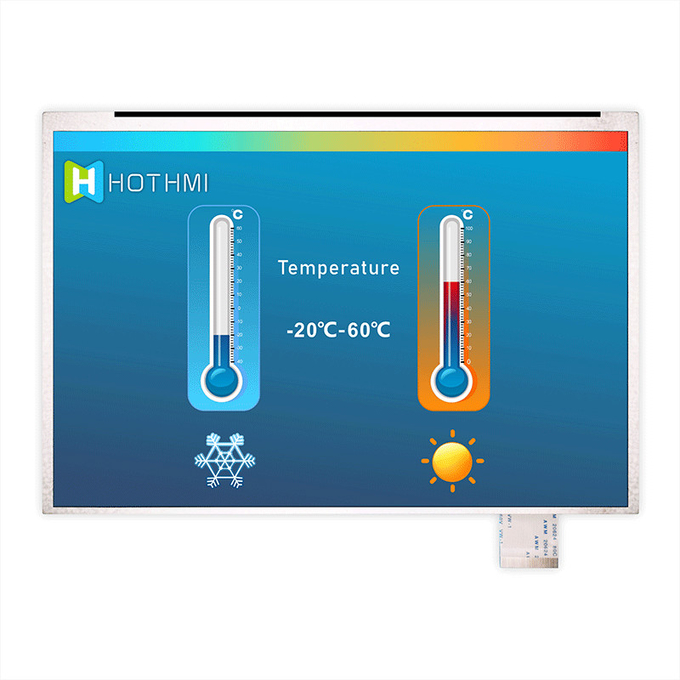

    Working temperature:-20~60℃

    Power supply voltage:12.0V

    Driver chip model:T.B.D

    PDF download
Product description

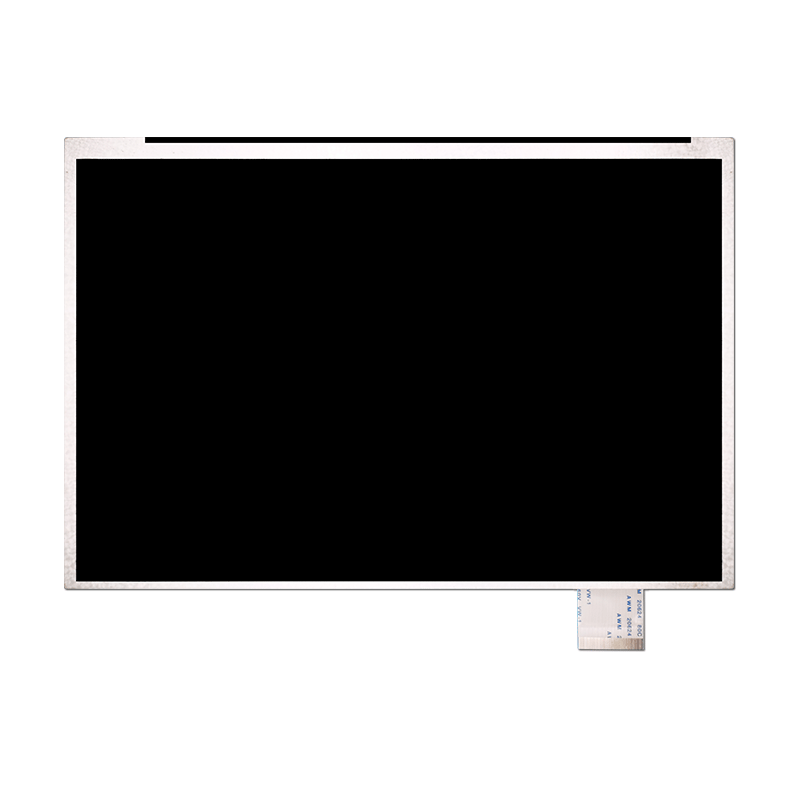

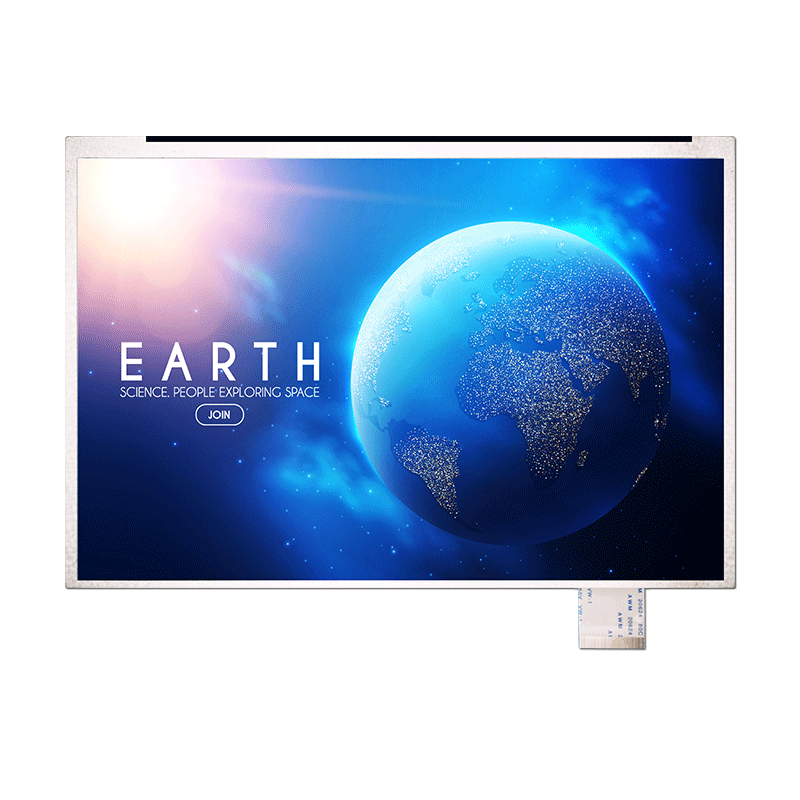

10.1inch 1920x1200 IPS VGA TFT Module Sunlight Readable/HTM-H101A04

HTM-H101A04 | 10.1" IPS LCD Display |  TFT Module with 2-Channel Stereo Audio Support | Mounting Bracket with Threaded Standoffs | No Touchscreen



This 10.1 inch, 24-bit true color, IPS TFT LCD module, has built-in  compatibility for a streamlined connection between devices with fewer cables. For extra protection, this 10.1" display also includes an EMI filter on the input power supply line. The IPS technology and 1920x1200 resolution screen deliver sunlight readable brightness, better color reproduction, better image consistency, and better optical characteristics at any angle. Assembled to the display, the custom PCB provides the user an all-in-one, plug-and-play  solution. It is attached to a steel mounting bracket with threaded standoffs and mounting holes compatible with rack unit (RU) spacing, for simple, secure installation. There are left and right speaker terminals suitable for 8ohm speakers up to 10 watts each. There is also an on-board analog devices ADV7611  receiver and a high brightness LED backlight with PWM. Whether you need a display for your Raspberry Pi, BeagleBone, Windows, or a touchscreen HMI for your Linux or other embedded system, this display offers a solution. This Liquid Crystal Display is also RoHS compliant and does not include a touchscreen.



Product introduction

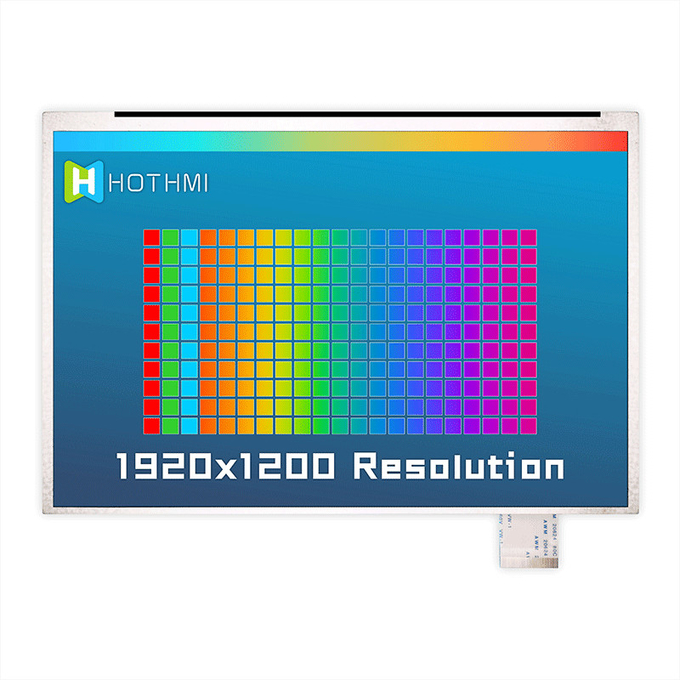

?10.1 inch standard display, 1920x1200 HD resolution

?The display brightness is up to 1000 cd/m 2 and the lifetime is up to 30,000 hours. Of course, higher brightness and longer life can be customized as  needed.

?Support OSD control keys to help users adjust the LCD to the best state for different applications, OSD menu can be switched between Chinese and English. Of course, other languages can be customized as needed.

?Supports 1.4A compliant digital input interface

? Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.



General Feature



Item

Standard Value

Unit

Display Size

10.1

Inch

Number of Pixels

1920(H)*3(RGB)* 1200(V)

dots

Active Area

216.81(H)* 135.50(V)

mm

Outline Dimension

230.20(H) * 150.00(V) * 21.55(D)

mm

Viewing Direction

FULL O'clock

-

Interface

1.4

-

Driver IC

T.B.D-

Driver Condition

VCI=3.3V(Typ)

V

Backlight

-

-

Touch Panel

WHITOUT TOUCH


CTP Driver IC

--

Driver Condition

VDD=12V

V

TFT Operation AT

-20 ~ +60

TFT Storage AT

-30 ~ +85



TFT Pin Description



Port Description

?Power Input Connector Description

1,Polarity: inside positive and outside negative

2,Contact inner diameter: 2mm/contact outer diameter: 6.3mm

3,Rated load: 12V/2A



 Pin NO.

Symbol

1VIN
2~3GND



?HI Type A Connector Description



Pin NO.

Symbol

1TMDS D2+
2TMDS D2 Shield
3TMDS D2-
4TMDS D1+
5TMDS D1 Shield
6TMDS D1-
7TMDS D0+
8TMDS D0 Shield
9TMDS D0-
10TMDS CK+
11TMDS CK Shield
12TMDS CK-
13NC
14NC
15DDC CLK
16DDC DATA
17GND
18+5V Power
19HPD



All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.



Search keyword: tft 10.1, tft 10.1", 10.1 tft lcd, 10.1" tft lcd, 10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display,10.1 inch tft display, tft display 10.1, tft display 10.1"

10.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 010.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 110.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 210.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 310.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 410.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 510.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 710.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 8



TFT Custom Solutions

10.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 9

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


10.1inch 1920x1200 IPS HI TFT Module Sunlight Readable/HTM-H101A04-HI 10

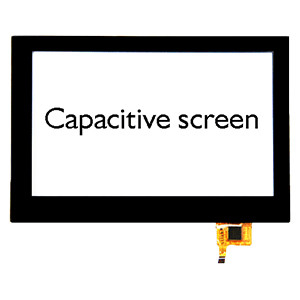

Touchscreen Add-on
