  • Model : 5 Inch 800x480 IPS Resistive TFT LCD Display Wide Temperature/HTM-H050A7-LVDS-USBRTP

    Product type:TFT Module

    Show contents:800x480

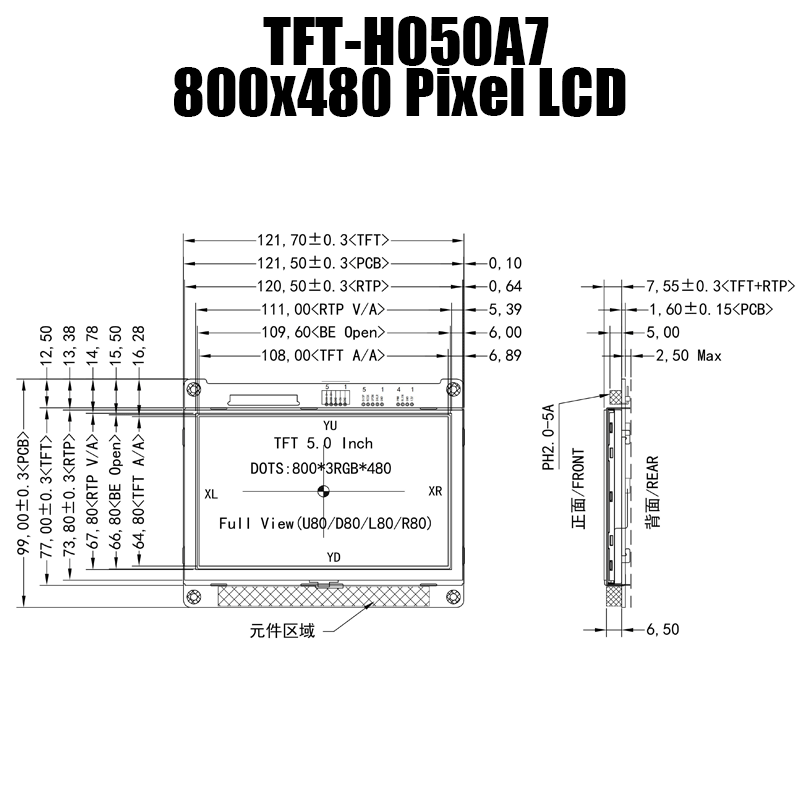

    Outline size(mm) :121.7x99x7.55mm

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):108x64.8mm

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:20pin

    Interface mode:LVDS

    Special instructions:With Resistive touch function

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7262

    PDF download
Product description

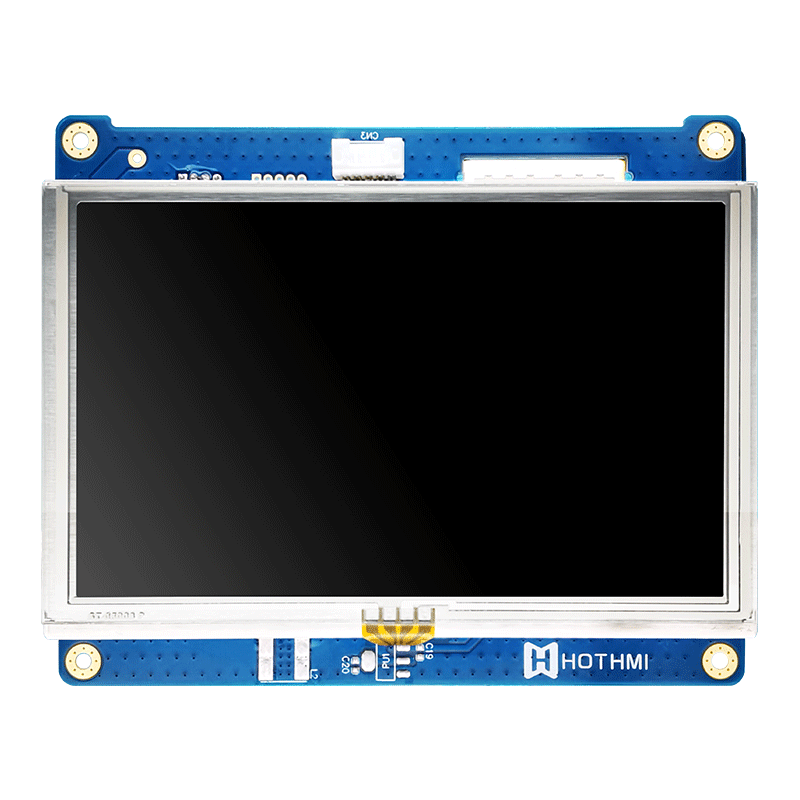

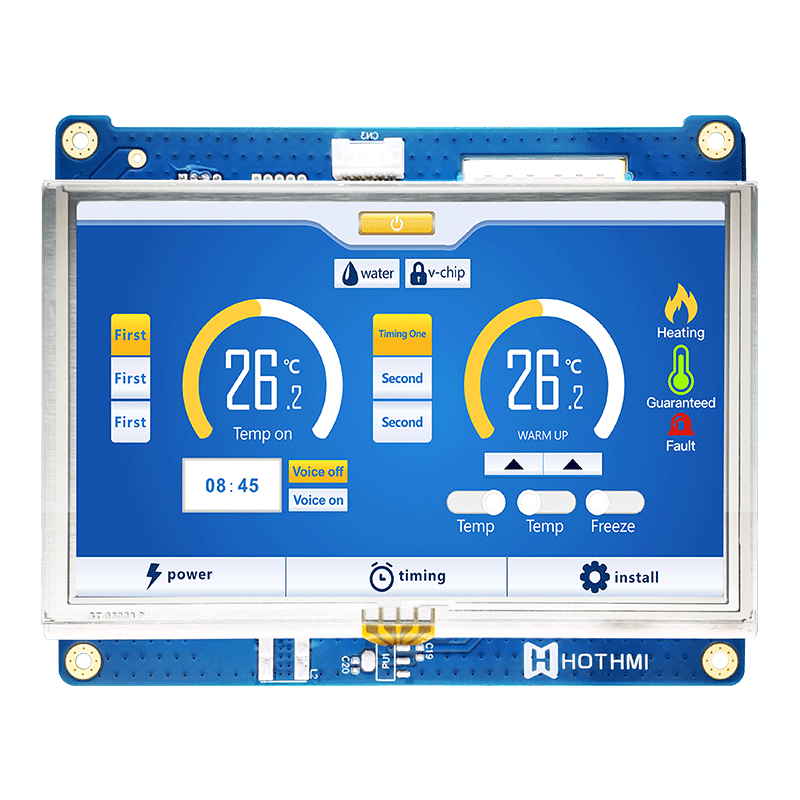

5 Inch 800x480 IPS Resistive TFT LCD Display Wide Temperature/HTM-H050A7-LVDS-USBRTP

HTM-H050A7-LVDS-USBRTP | 5.0" IPS LCD | 800x480 Pixels | Resistive Touchscreen | Wide Temperature



Introducing the HTM-H050A7-LVDS-USBRTP, a premium 5.0-inch IPS LCD display that boasts an impressive 800x480 pixel resolution. With its resistive touchscreen, this display is highly responsive and easy to use, making it an excellent choice for a wide range of applications.

One of the standout features of the HTM-H050A7-LVDS-USBRTP is its wide temperature range, which makes it ideal for use in harsh environments where other displays may fail. With its advanced technology, this display can withstand extreme temperatures, ensuring reliable performance even in the toughest conditions.

Whether you're looking for a display for a medical device, industrial equipment, or any other application where performance and reliability are essential, the HTM-H050A7-LVDS-USBRTP is the perfect choice. With its high-quality construction and advanced features, this display is sure to meet all of your needs and exceed your expectations.

In addition to its impressive features, the HTM-H050A7-LVDS-USBRTP is also easy to install and use. The display comes with a user-friendly interface and a range of connectivity options, including LVDS and USB. This means you can easily connect the display to a variety of devices and start using it right away.

The HTM-H050A7-LVDS-USBRTP is also highly versatile, making it an excellent choice for a wide range of applications. Whether you're using it in a medical device, industrial equipment, or any other type of device, this display offers exceptional performance and reliability.

With its advanced technology, high-quality construction, and impressive features, the HTM-H050A7-LVDS-USBRTP is the ideal choice for anyone looking for a high-performance display. So why wait? Order yours today and experience the difference for yourself!



General information



ItemSpecificationUnit
Outline Dimension121.7x99x7.55mmmm
Display area108x64.8mmmm
Number of Pixel800(H) x 480(V)pixels
Pixel pitch-mm
Pixel arrangementRGB Vertical Stripe
Display modeNormally Black
NTSC70(Typ.)%
Surface treatmentAntiglare, Hard-Coating (3H)
Weight-g
Back-lightSingle LED (Side-Light type)

Power

Consumption

Logic System (White Pattern)

ST7262

W
B/L System-W



All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
