Location:Home  >  Product center  >  Graphic lattice LCD module  >  Plated COG LCD Module  >  128X64 SPI ST7567 FSTN 圖形 LCD 模塊寬溫儀表/HTM-COG12864T01A-SPI
  • Model : 128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation

    Product type:COB LCD Module

    Show contents:128x64

    Outline size(mm) :58x51.2x6.2

    Size of View Window(mm):54.6x39.2

    Display size(mm) :128x64

    Point spacing(mm):0.38x0.32

    Effective size(mm):45.2x27

    Product application:Instrumentation

    Visual angle:6H

    Connection PIN Number:12pin

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

    Driver chip model:ST7567

    PDF download
Product description

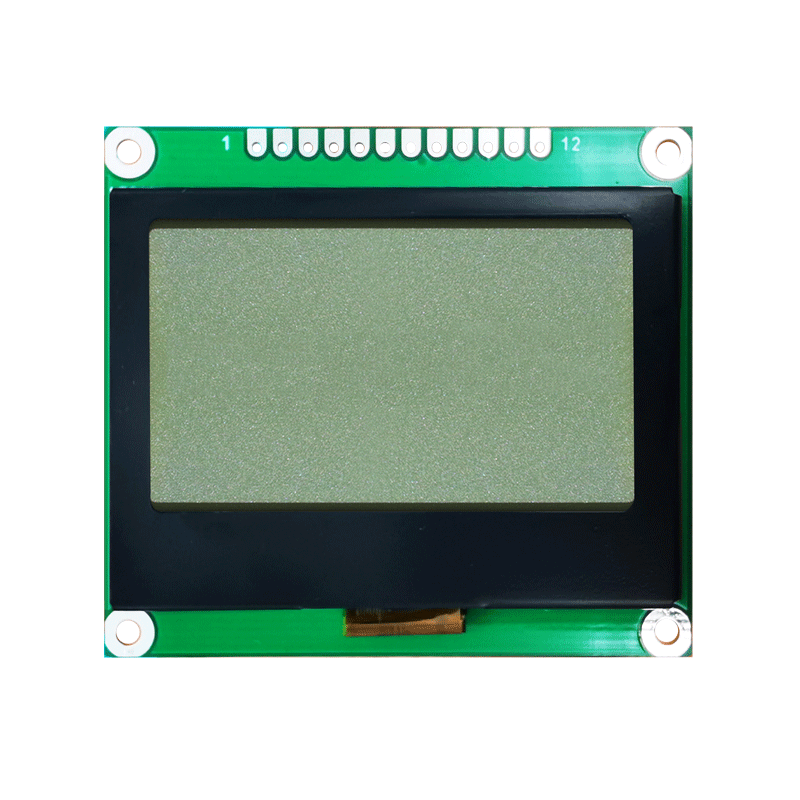

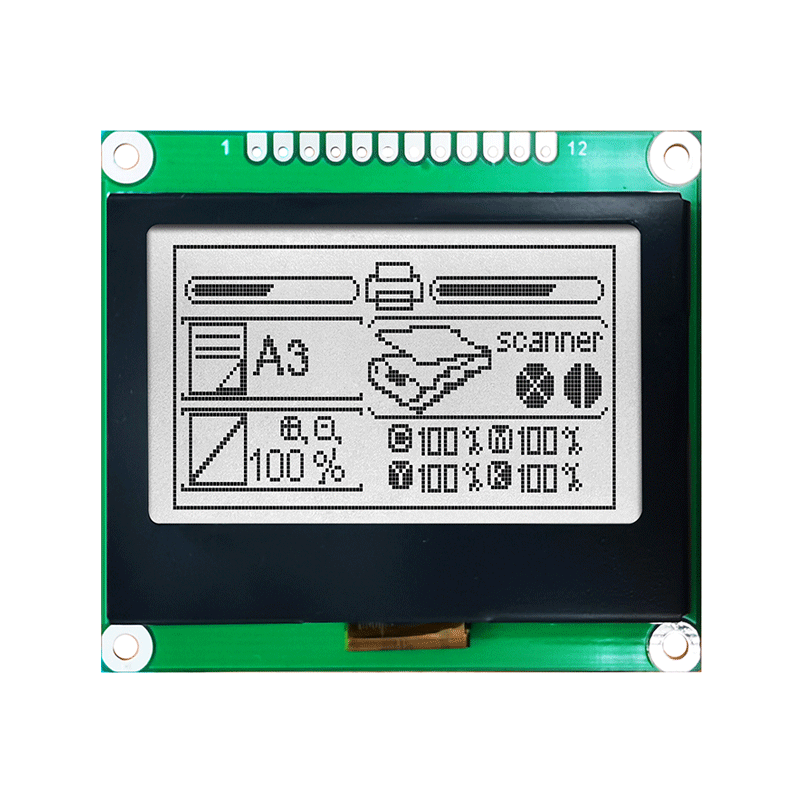

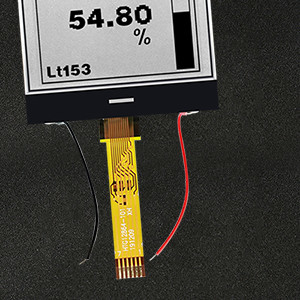

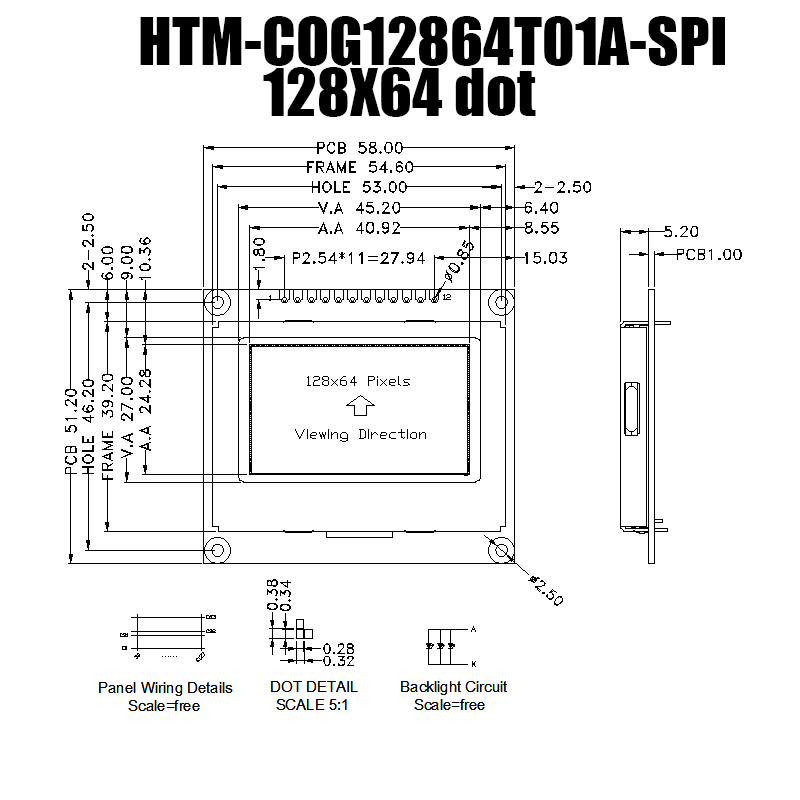

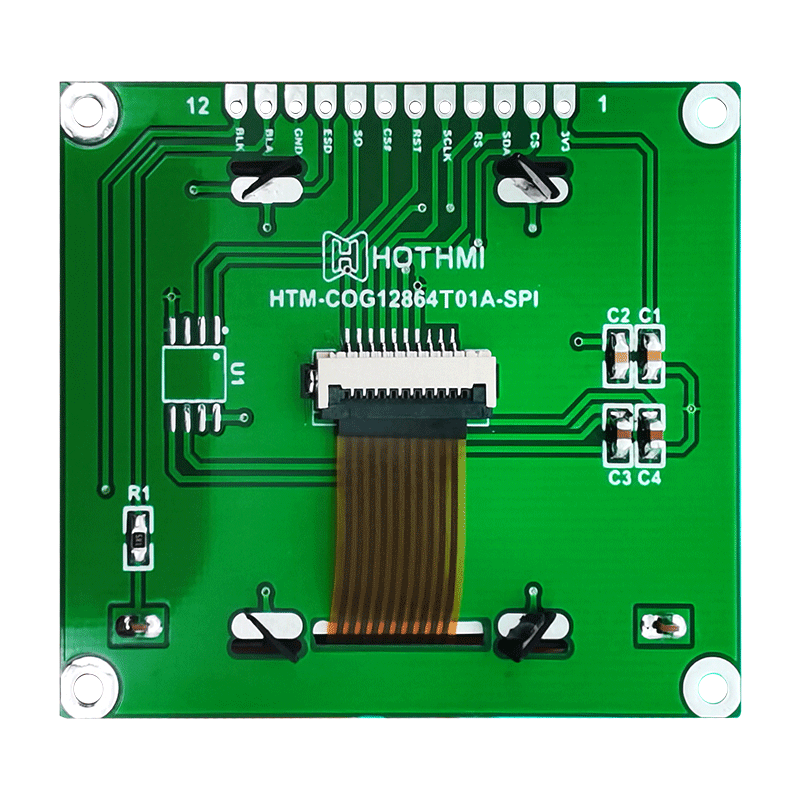

128X64 SPI ST7567 FSTN Graphic LCD Module Wide Temperature For Instrumentation



HTM-COG12864T01A-SPI | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Built-in Negative Voltage | IN-STOCK



Introducing the HTM-COG12864T01A-SPI, a reliable and high-quality monochrome graphic module perfect for instrumentation applications that require a wide temperature range. With its operating temperature range of -30℃~80℃, this module can perform in harsh environments and extreme conditions.

Featuring a 128x64 pixel transflective LCD display, this module offers clear and easy-to-read visuals with a 6 o'clock viewing angle. The FSTN (+) positive display and built-in negative voltage ensure excellent contrast and sharpness, making it suitable for use in both bright and dimly lit environments. The side white backlight provides additional visibility in low-light conditions.

The HTM-COG12864T01A-SPI is IN-STOCK, making it readily available for your instrumentation projects. Order now and take advantage of this reliable and high-performance LCD module to enhance your designs.



Product parameters



ITEMSTANDARD VALUEUNIT
Number of dots128x64dots
Module dimension58x51.2x6.2mmmm
View display area54.6x39.2mmmm
Dot size0.34x0.28mm
Dot pitch0.38x0.32mm
Operating temp-30~80
Storage temp-40~80
Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction6H
Display modeFSTN
Display typeTRANSMISSIVE / NEGATIVE
Driver ICST7567
Backlight

WHITE

Product applicationindustrial control, instrumentation
