  • Model : 5 Inch For VGA TFT Module Display 800x480 Dots Panel With LCD Controller Board HTM-H050A7-B2

    Product type:TFT Module

    Show contents:800x480

    Outline size(mm) :121.70x96.00x15.60

    Size of View Window(mm):5.0

    Display size(mm) :5.0

    Effective size(mm):108.00x64.80

    Product application:Outdoor instrumentation, vehicle

    Visual angle:Full view

    Backlight type or brightness:500cd/m2

    Interface mode:VGA

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:5.0V

    Driver chip model:T.B.D

    PDF download
Product description

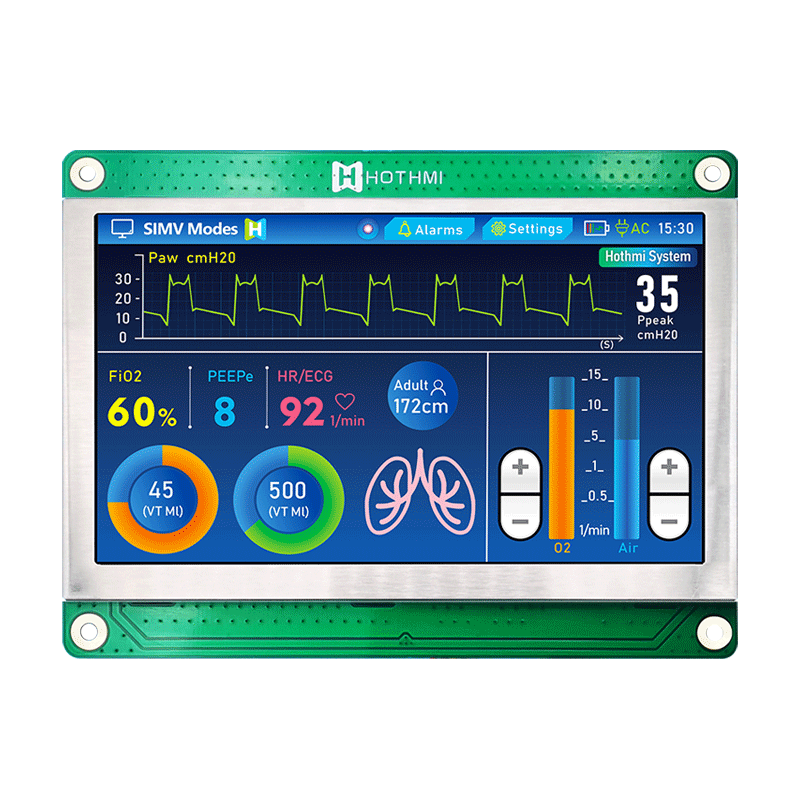

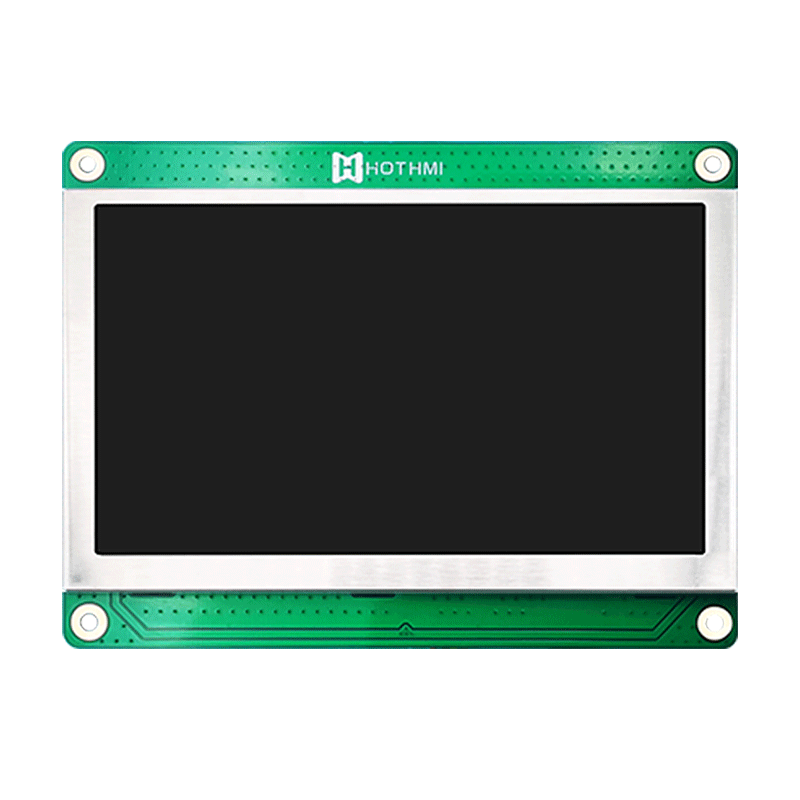

5 Inch For  VGA TFT Module Display 800x480 Dots Panel With LCD Controller Board HTM-H050A7-B2

HTM-H050A7-B2 | 5.0 inch LCD | TFT Module | 800x480 dots | Luminance 500cd/m2 | Operating Temperature -20°C ~ 70

Introducing the HTM-H050A7-B2, a high-quality 5.0-inch LCD TFT module with an 800x480 dot panel and a luminance of 500cd/m2. This module comes equipped with an LCD controller board and is designed to operate in temperatures ranging from -20°C to 70°C, making it suitable for a wide range of applications.

The 800x480 dot panel ensures crisp and clear images, while the high luminance ensures that the display remains visible even in bright ambient lighting conditions. The  interface provides seamless connectivity, allowing you to easily integrate this display module into your existing setup.

Whether you're looking to add a display to your project, create an interactive kiosk, or simply upgrade your existing display, the HTM-H050A7-B2 is the perfect choice. Its compact size, high-quality display, and wide temperature range make it ideal for use in a variety of settings, from industrial applications to consumer electronics.
