Product type：Character LCM
Show contents：16x2
Outline size(mm) ：100X42X13
Size of View Window(mm)：87.8X31.5
Display size(mm) ：80X20.5
Point spacing(mm)：0.83x0.98
Product application：Instrumentation
Visual angle：12H
Connection PIN Number：16pin
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

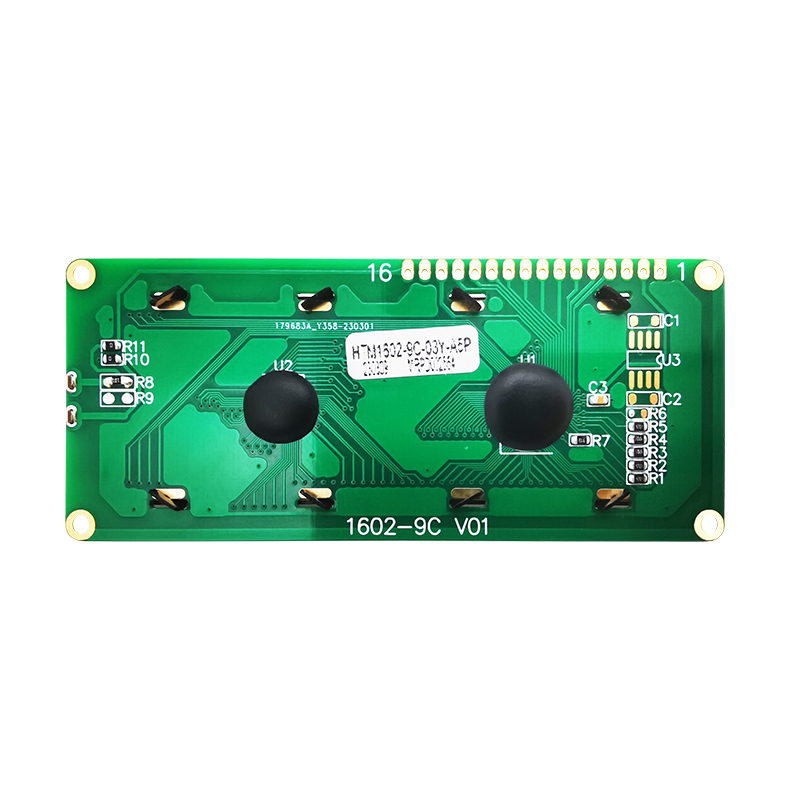

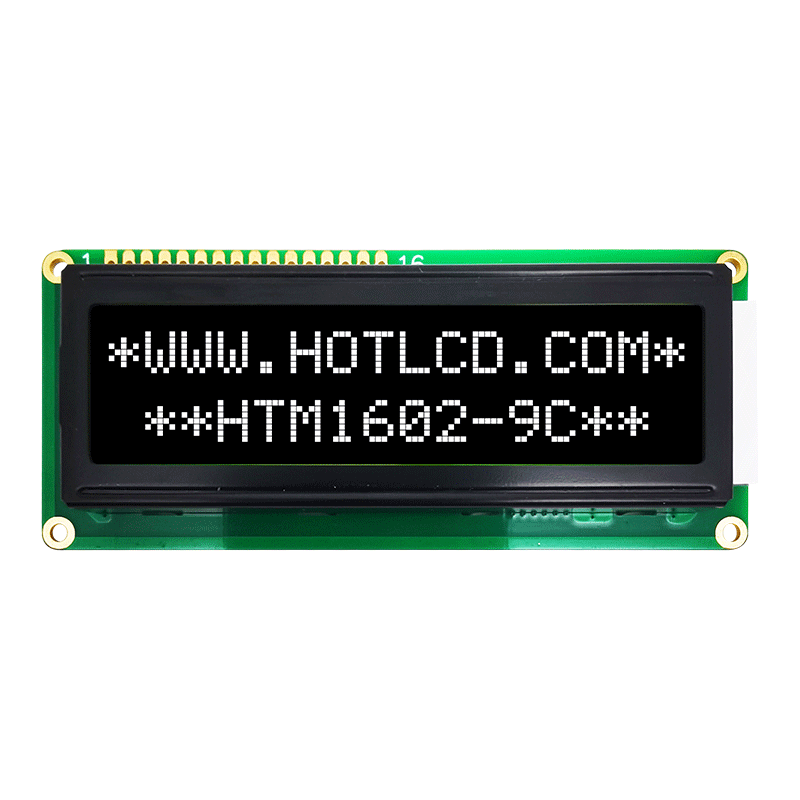

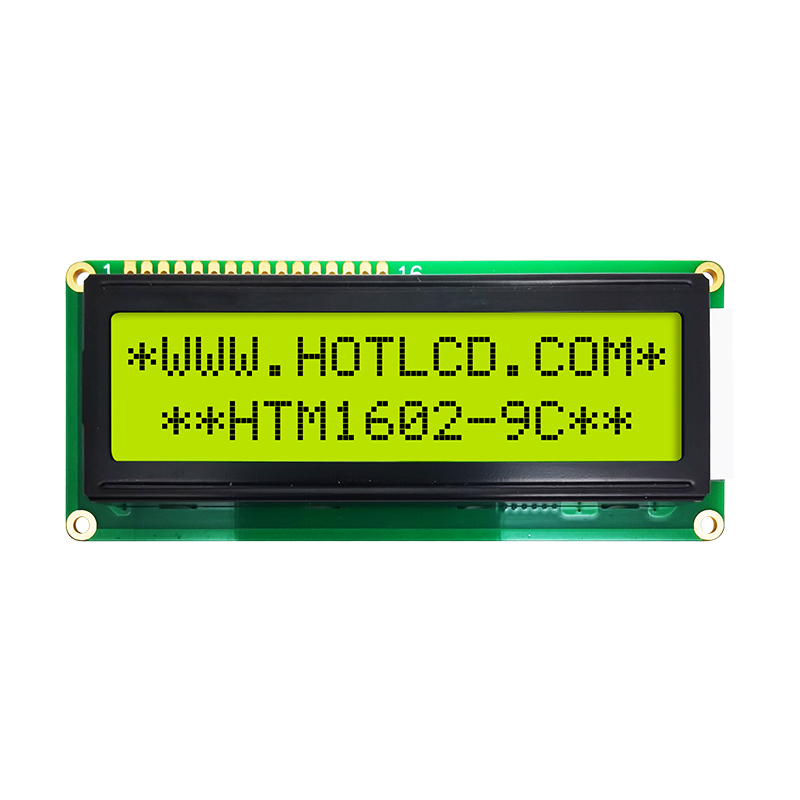

HTM1602-9C LCD Display Module 16 Character x 2 Lines with LED backlight provides various backlight color combinations, such as yellow-green, blue, white, amber, red. This LCD module without backlight is also available.
If you want to know about related 16 Characters x 2 Lines LCD Display Module, please feel free to contact us!
Quick detail
Product Type - Standard COB Character LCM
Display content - 16x2 characters

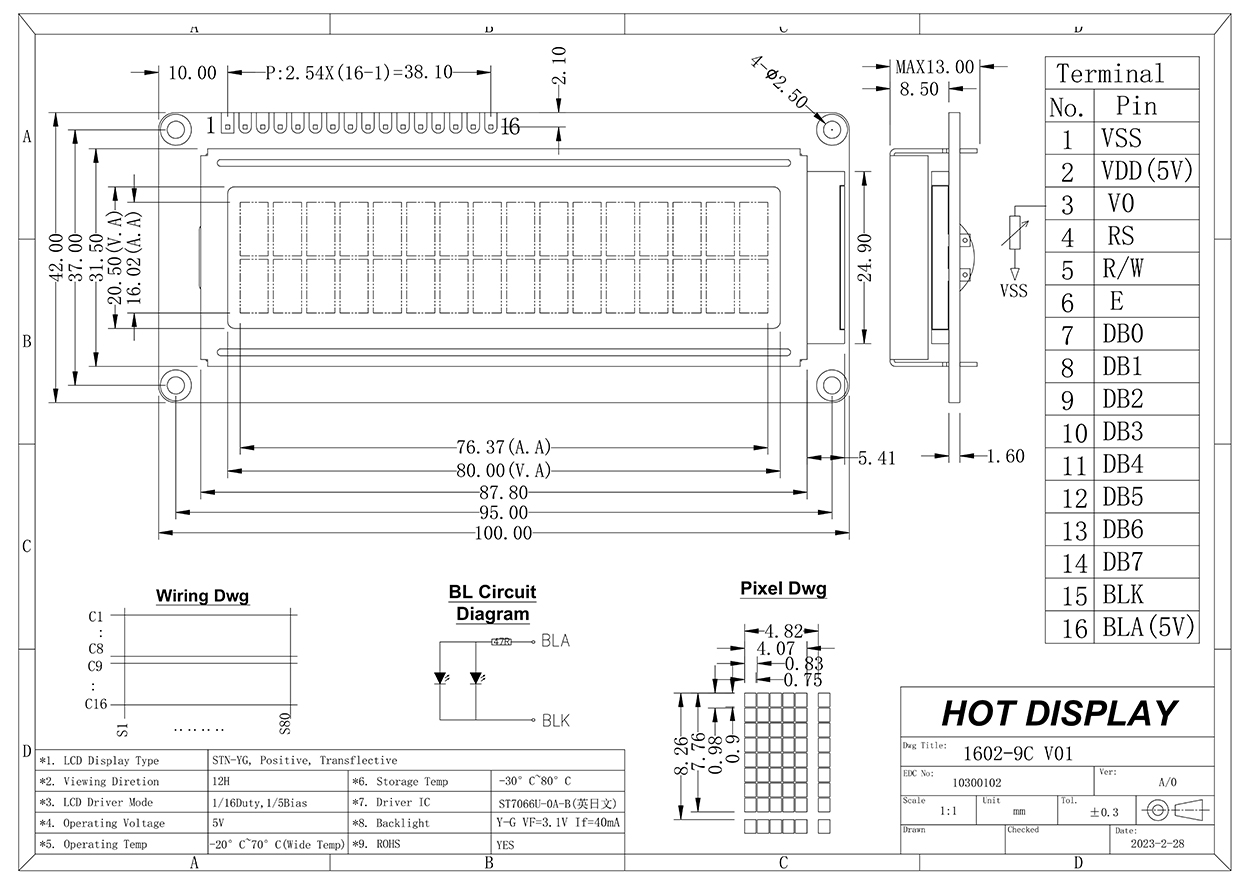

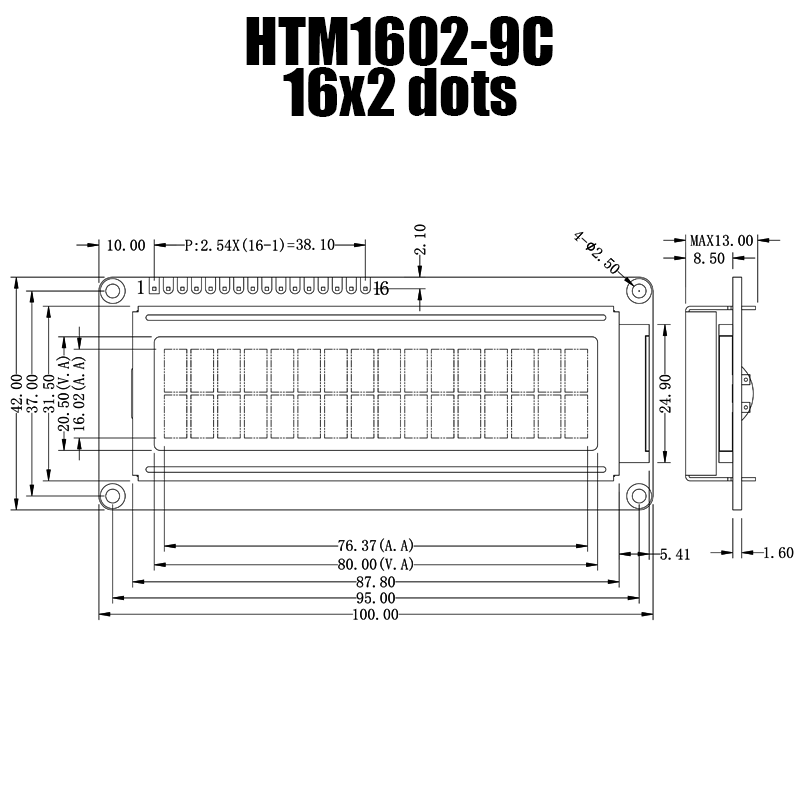

Dimensions (mm) - 100X42X13
Viewport window size (mm) - 87.8X31.5
Display size (mm) - 80X20.5
Dot Spacing mm - 0.75X0.9
Product Application - Instrumentation
Viewing Angle - 12H
Backlight Type or Brightness - Yellow Green
Connection method PIN number - 16PIN
Interface - MCU/8bit
Working temperature - (-10~60℃)
Supply Voltage - 5.0v
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/ Instruction select signal |
| 5 | R/W | Read/Write select signal |
| 6 | E | Enable signal |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | A | Power supply for B/L + |
| 16 | K | Power supply for B/L - |
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 100X42X13 | mm |
| Viewing Area | 87.8X31.5 | mm |
| Mounting Hole | 80X20.5 | mm |
| Character Size | 0.75X0.9 | mm |
| Item | Symbol | Standard Value typ. | Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C | VDD-VO | 3.70 | V |
| Display Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DD RAM Address | 00 | 01 | 0F | |||||||||||||
| DD RAM Address | 40 | 41 | 4F |
