  • Model : 15.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel LVDS TFT-H156FHDIK03-LVDS

    Product type:TFT LCD

    Show contents:1920x1080

    Outline size(mm) :363.8x215.9

    Size of View Window(mm):15.6

    Display size(mm) :15.6

    Effective size(mm):344.16x193.59

    Product application:Industrial Control Equipment

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:36pin

    Interface mode:LVDS

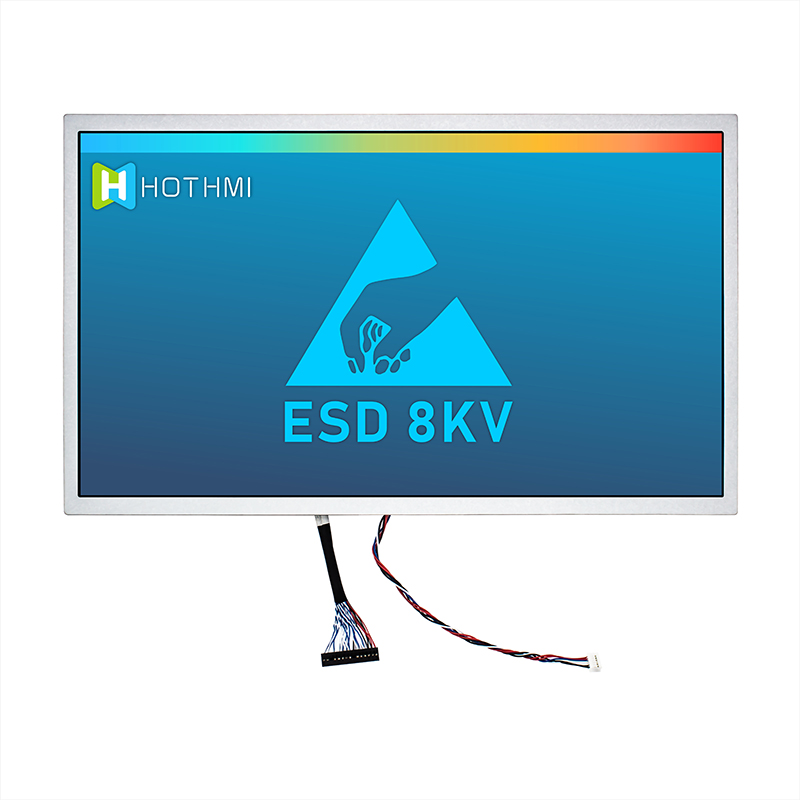

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~85℃

    Power supply voltage:3.3V~12V

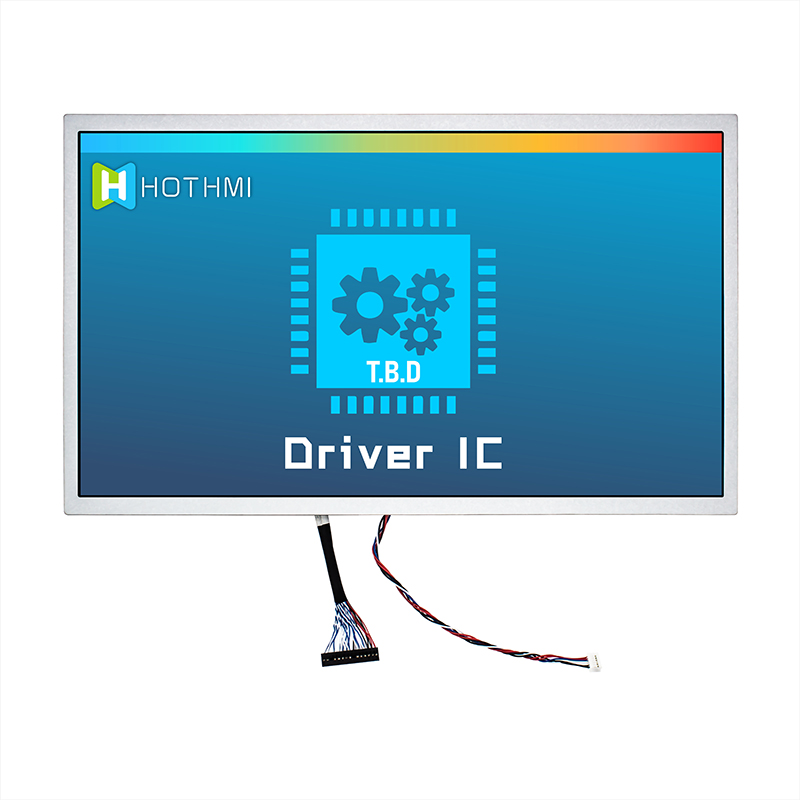

    Driver chip model:T.B.D

    PDF download
Product description

15.6 Inch IPS 1920x1080 Wide Temperature TFT Display Panel LVDS TFT-H156FHDIK03-LVDS

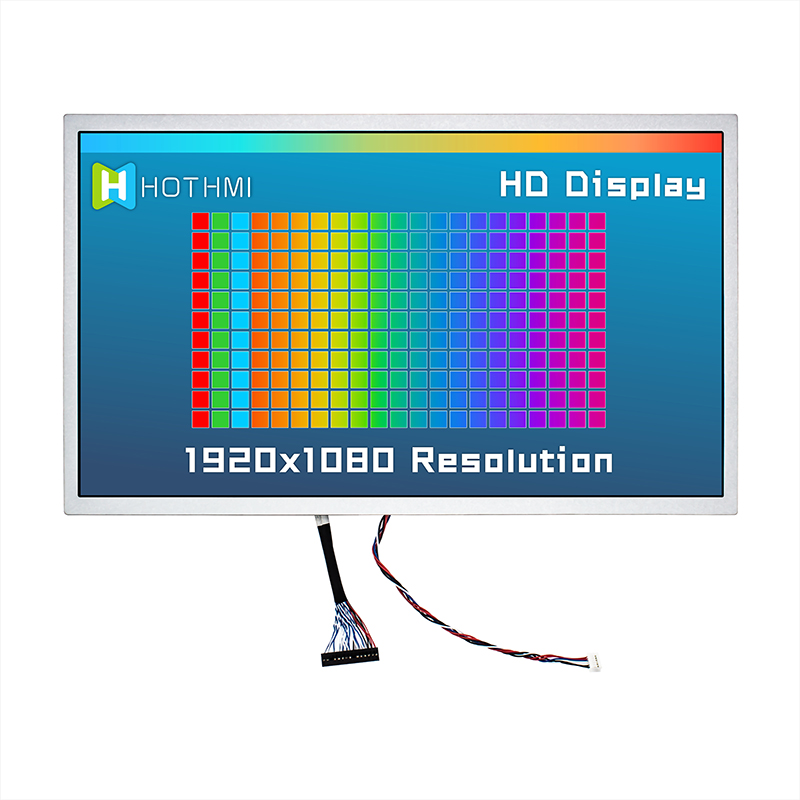

Introducing the TFT-H156FHDIK03-LVDS: a cutting-edge 15.6-inch IPS TFT LCD display designed to meet the demands of industrial computing environments. With its impressive 1920x1080 HD resolution, this display offers crystal-clear visuals and exceptional clarity for a superior viewing experience.

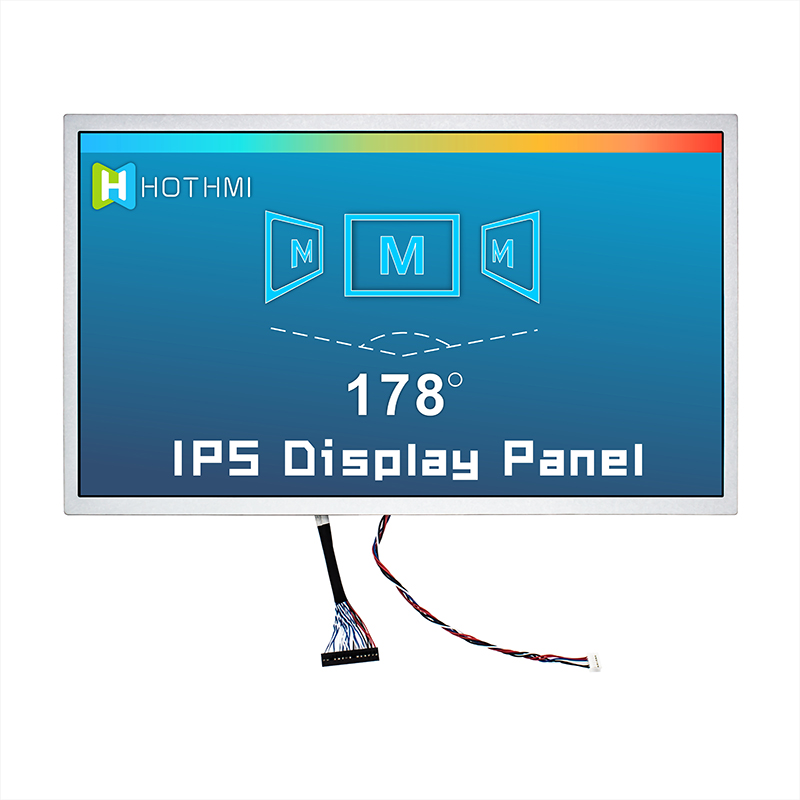

Unleash the Power of IPS: The TFT-H156FHDIK03-LVDS boasts In-Plane Switching (IPS) technology, ensuring wide viewing angles and vibrant colors. Whether you're viewing the screen from the side or head-on, you'll enjoy consistent and accurate imagery.

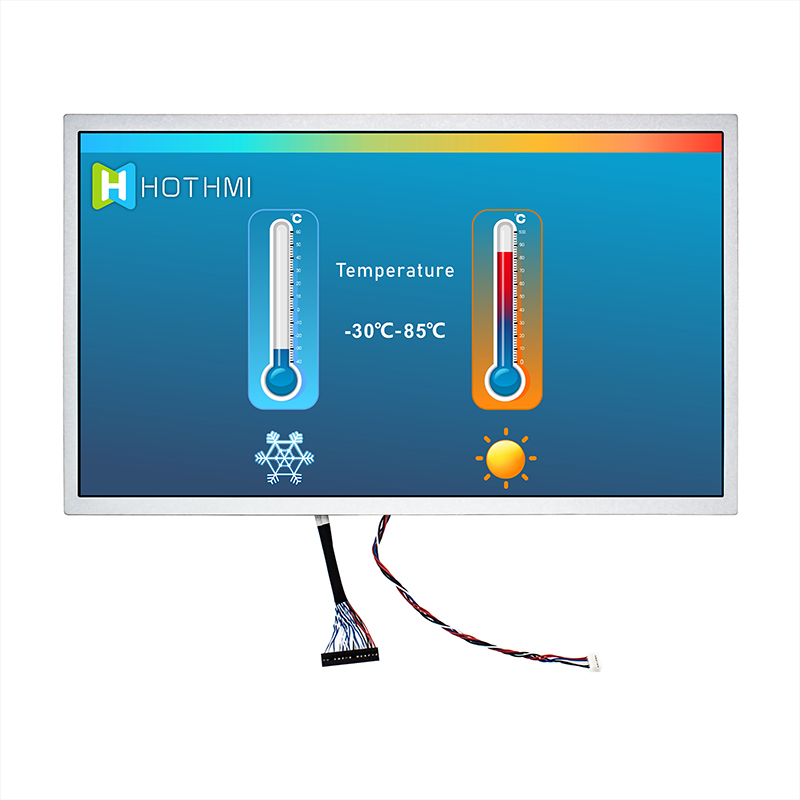

Built to Withstand Extreme Conditions: This display is engineered to perform reliably in the most challenging conditions. With a temperature range of -30℃ to 85℃, it can thrive in both freezing cold and scorching hot environments, making it an ideal choice for industrial applications.

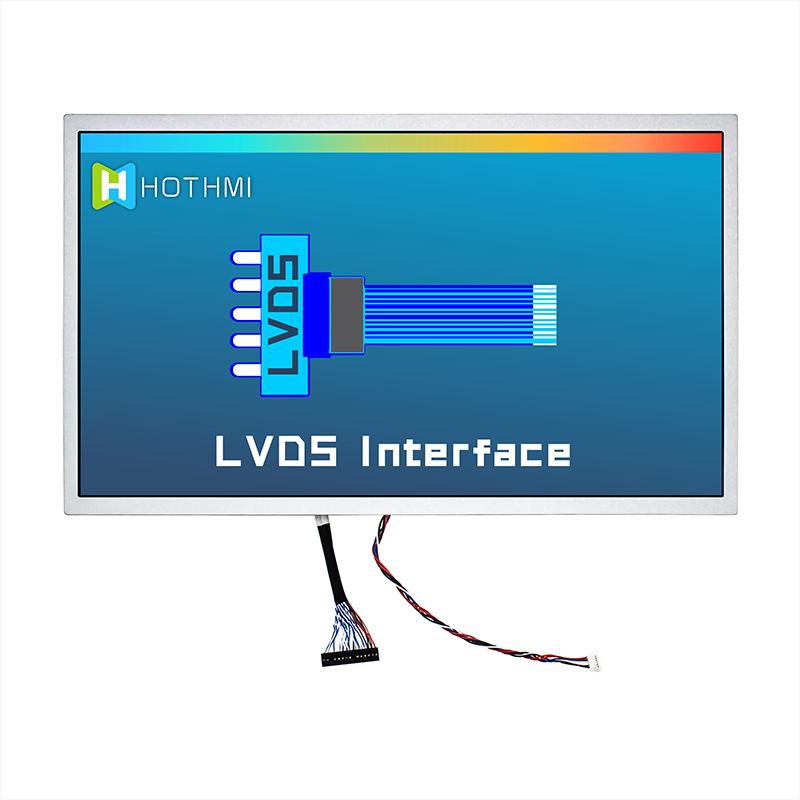

Seamless Connectivity: The LVDS interface guarantees seamless and efficient data transmission, allowing for quick and reliable communication between your device and the display. Experience smooth operation and reduced latency for enhanced user interactions.

Designed for Industrial Excellence: The TFT-H156FHDIK03-LVDS is purpose-built for industrial computers, ensuring that it meets the rigorous demands of industrial settings. Whether it's in manufacturing, automation, or other heavy-duty applications, this display is up to the task.

Elevate Your Visual Experience: Elevate your projects and applications with the TFT-H156FHDIK03-LVDS. Its wide temperature range, high-resolution display, and dependable performance make it the perfect choice for industrial computing needs. Discover unparalleled quality and durability in one advanced package.

Upgrade to the Future: Embrace the future of display technology with the TFT-H156FHDIK03-LVDS. Experience stunning visuals, robust construction, and reliable performance, all designed to elevate your industrial computing endeavors. Make this display an integral part of your setup today.
