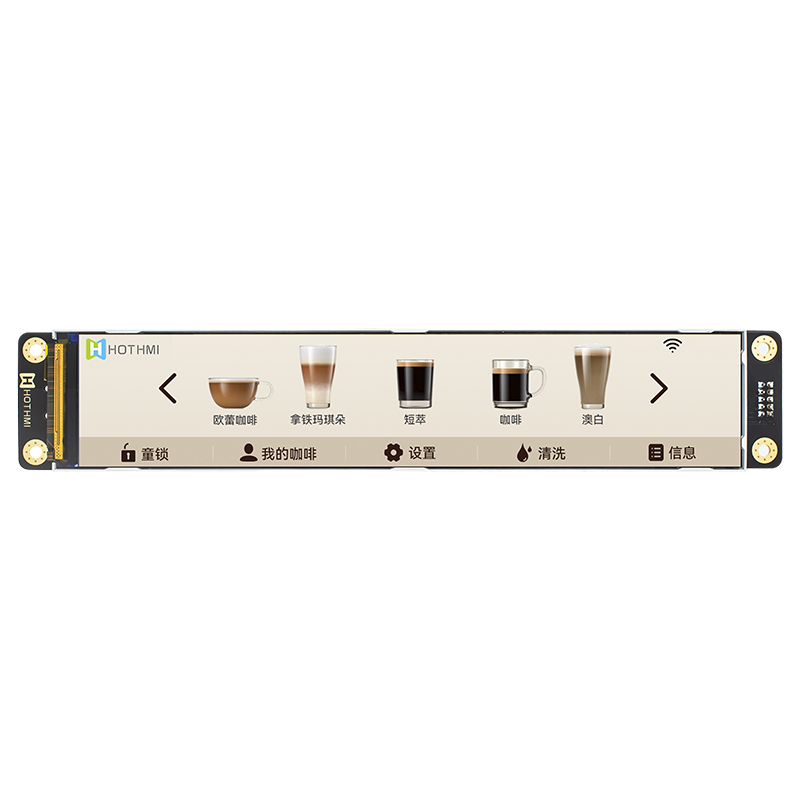

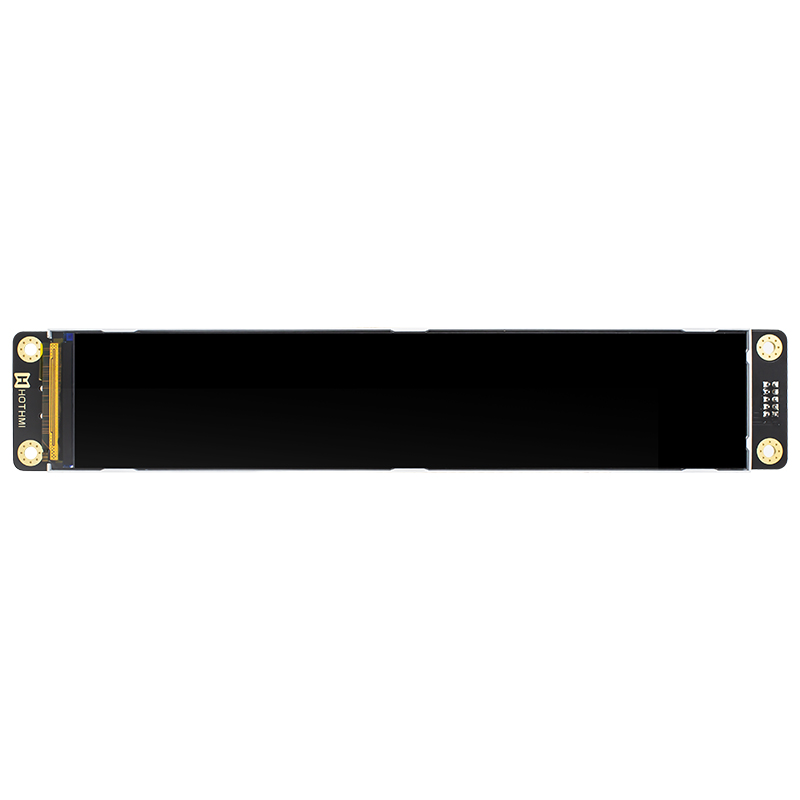

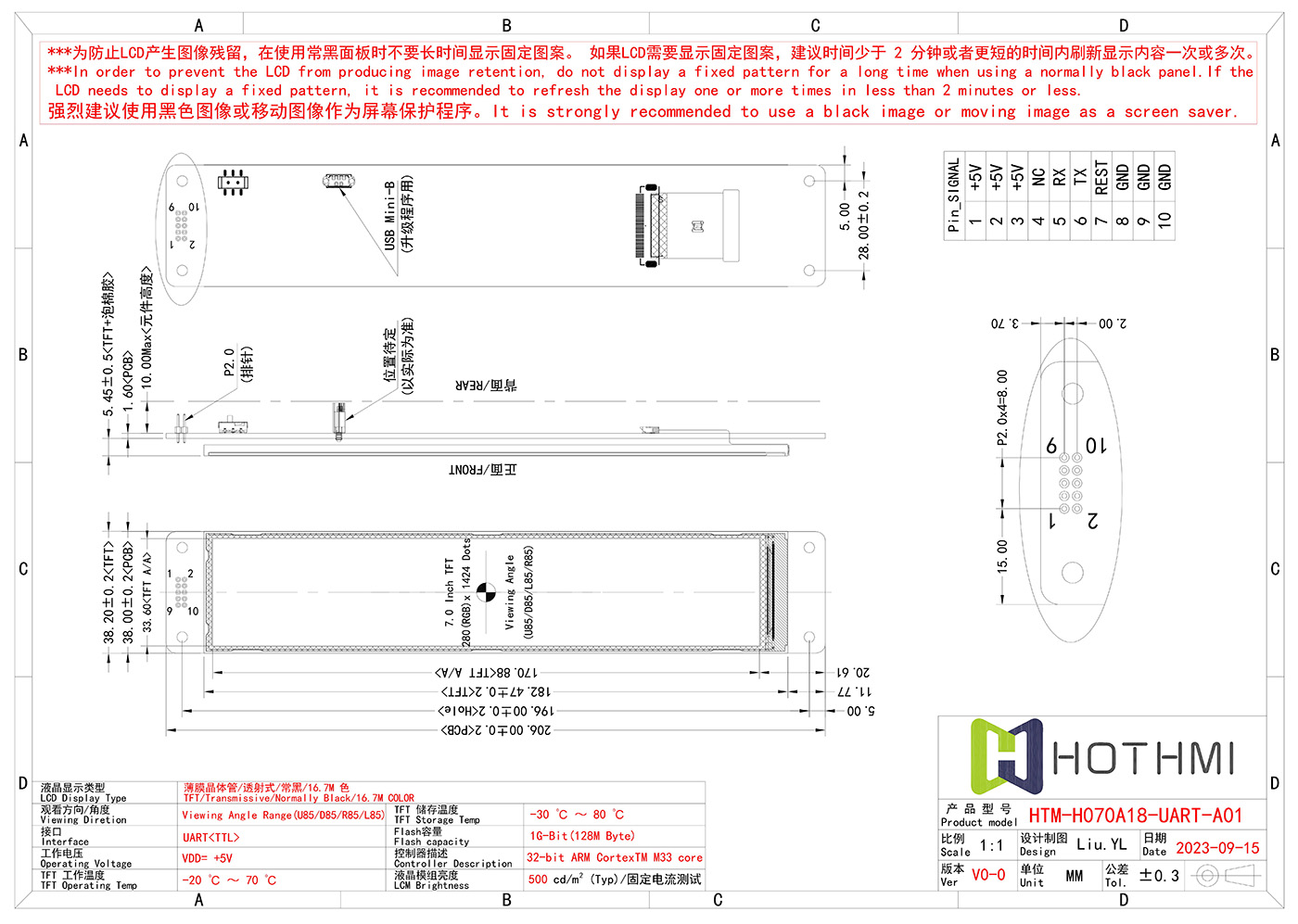

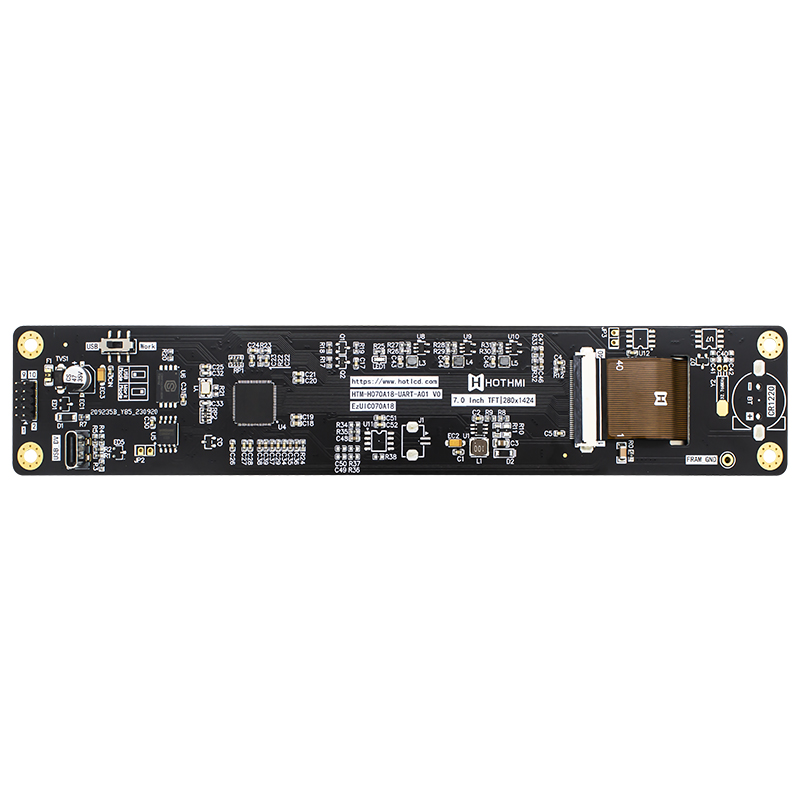

  • Model : 7-inch UART IPS smart serial screen TFT LCD display 280x1424 resolution HTM-H070A18-UART

    Product type:TFT Module

    Show contents:280x1424

    Outline size(mm) :206x38.2x5.45

    Size of View Window(mm):7.0

    Display size(mm) :7.0

    Point spacing(mm):182.47x38

    Effective size(mm):170.88x33.6

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:500cd/m2

    Connection PIN Number:10pin

    Interface mode:UART/RS232

    Special instructions:抗靜電ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:5.0V

    PDF download
Product description

Product name: HTM-H070A18-UART series smart serial screen



Product Description:


Color TFT display size: 7 inches (diagonal)

Resolution: 280x1424 dot matrix, 16-bit color depth, HD screen

Internal resource memory size: 128M bytes

Power supply requirements: 5V DC power supply

External interface: serial UART (TTL level) interface

Communication protocol: ASCII string format, suitable for interface operations with Arduino systems and other MCUs



Standard configuration:


5-inch diagonal color TFT screen, standard no touch/resistive touch/capacitive touch

Resolution: 280x1424 dot matrix, 65536 colors

Power supply mode: 5V DC power supply

Serial interface: ART serial interface (TTL level), supports 9600~1000000bps

Built-in resource memory: 128M bytes

Standard RTC real-time clock module

Built-in 6x10, 8x16, 10x20, 16x32-point ASCII code Western font library



Features:


Supports basic drawing instructions, including drawing points, straight lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG picture, PNG picture display, etc.

Support audio and video playback instructions

The resource memory supports GBK2312 secondary Chinese character library, vector font library, BIG5 font library, BMP bitmap, JPEG pictures, PNG picture display, ASCII Western character library, etc.

Supports interface switching effect settings, such as transparency fade-in, random fast fade-in, blind fade-in, and buffer fast switching

Supports area button controls, which can be configured with multiple attributes, and the control message response can be configured

Supports bitmap (BMP/JPG/PNG) button controls, which can be configured with multiple attributes, and the control message response can be configured

Supports numeric controls, can input integers and floating point numbers, multiple attribute configurations

Supports string control, supports Chinese and English string input, and multiple attribute configurations

Support drop-down selection control, control message response is configurable

Supports waveform controls, allowing up to four waveform lines to be displayed in the same ID number control

Supports progress bar control, control message response is configurable

Support bitmap animation control, control message response is configurable

Support time display and date display controls

Support dial display control

Supports slider control, control message response is configurable

Support QR code




The latest EzUI series smart LCD module launched by HOTHMI has the following characteristics:


E (easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop full-color graphic touch screen human-machine interfaces, allowing users to easily design and develop color LCD modules.


The biggest feature of the EzUI series of smart LCD modules is its ease of use and rich functions. Users can choose simple or complex usage, achieving the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, control configuration and response settings of the human-machine interface, and then copy the resource files generated by the tool software to the EzUIH series module to complete the required human-machine interface. Design and production of interactive interfaces without the need to program and control microcontrollers or other controllers. In order to meet users with special requirements, the EzUIH series modules still retain most of the display control instructions, allowing users to control the module display more freely. EzUIH is a function and performance enhanced version of the EzUI series. Although the hardware platform is different, it is fully compatible with the functions of the EzUI series.


Currently, the EzUI series offers a variety of sizes for customers to choose from, including 2.8-inch, 3.2-inch, 3.5-inch, 4.3-inch, 5.0-inch, 7.0-inch, 8.0-inch and 10.1-inch. These modules are commonly used in industrial control equipment and medical equipment.




The characteristics and application scope of EzUI series intelligent LCD modules are as follows:


Easy to use: The EzUI series modules adopt a simple and easy-to-use design concept, allowing users to easily get started and quickly carry out interface design and development. Through the interface development tool software (EzUITool), users can design, edit, control configuration and response settings of the human-machine interface.


Zero Code: EzUI series modules achieve the goal of code-free user interface design. Users do not need to program the microcontroller or other controllers. They only need to copy the resource files generated by the tool software to the corresponding EzUIH series modules to complete the design and production of the human-computer interaction interface.


Rich functions: EzUI series modules provide rich functions and performance. Users can choose simple or complex usage according to their needs, and freely control the display functions of the module. EzUIH series modules also retain most of the display control instructions to meet users with special requirements.


Multiple size options: The EzUI series provides a variety of sizes for customers to choose from, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches and 10.1 inches, etc. These modules of different sizes are suitable for different application scenarios, such as industrial control equipment and medical equipment.


In short, Xinhongtai HOTHMI's EzUI series intelligent LCD modules are easy to use, zero code, and feature-rich. They can help users quickly develop full-color graphic touch screen human-machine interfaces, and are widely used in industrial control equipment and medical equipment and other fields. .
