  • Model : 12.1 inch 800x600 pixel TN TFT LCD display for ventilator TFT- H121E01SVTWZ4N20

    Product type:TFT LCD

    Show contents:800x600

    Outline size(mm) :276x 209 x 9.1

    Size of View Window(mm):12.1

    Display size(mm) :12.1

    Effective size(mm):246.00x184.50

    Product application:Vehicle, medical, industrial control

    Visual angle:6H

    Backlight type or brightness:400cd/m2

    Connection PIN Number:26

    Interface mode:LVDS

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    PDF download
Product description

TFT-H121E01SVTWZ4N20 | 12.1" IPS LCD | 800x600 pixel screen | EMI shielded | LVDS connector | 26-pin FFC connection

This 12.1-inch 6H o'clock TFT LCD display brings together advanced technologies to deliver superior visual output for high-end projects. It has 800x600 pixel resolution, uses an upgraded FPC design, and the cable is equipped with EMI shielding to ensure stable signal transmission. The 400 cd/m2 LED backlight makes it perform well in a variety of environments.

Built-in TN technology provides users with stunning clarity, superior color reproduction and high contrast at all viewing angles. In terms of connection, it supports LVDS interface and is easily integrated and compatible with various Arduino models. Using 26-pin FFC flexible flat cable connection method, electrical connection is more convenient.

Built-in driver IC ensures excellent performance and reliability. Optimized drivers ensure smooth monitor operation and accurate rendering of images and graphics.

Complying with RoHS standards and strictly abiding by environmental and safety standards, it is a powerful, simple and practical device that can be applied to oxygen machines and monitors.

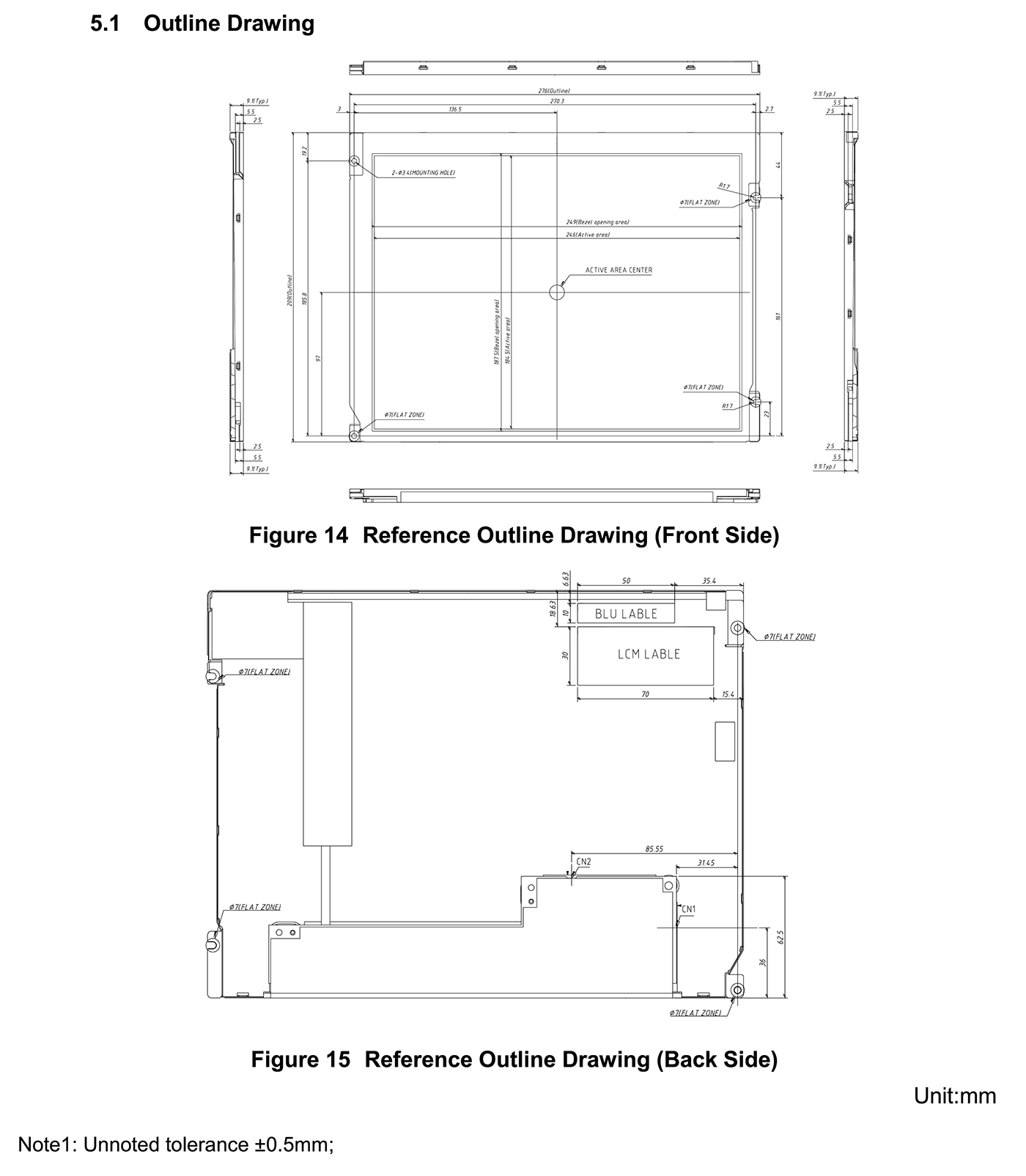

TFT-H121E01_V0 使用說明書_18.jpg
