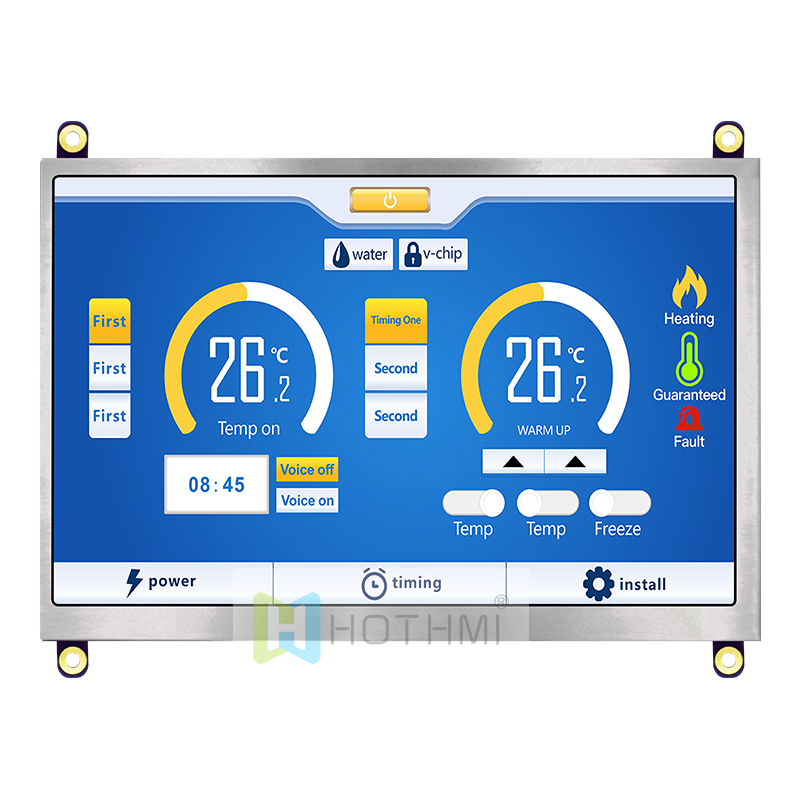

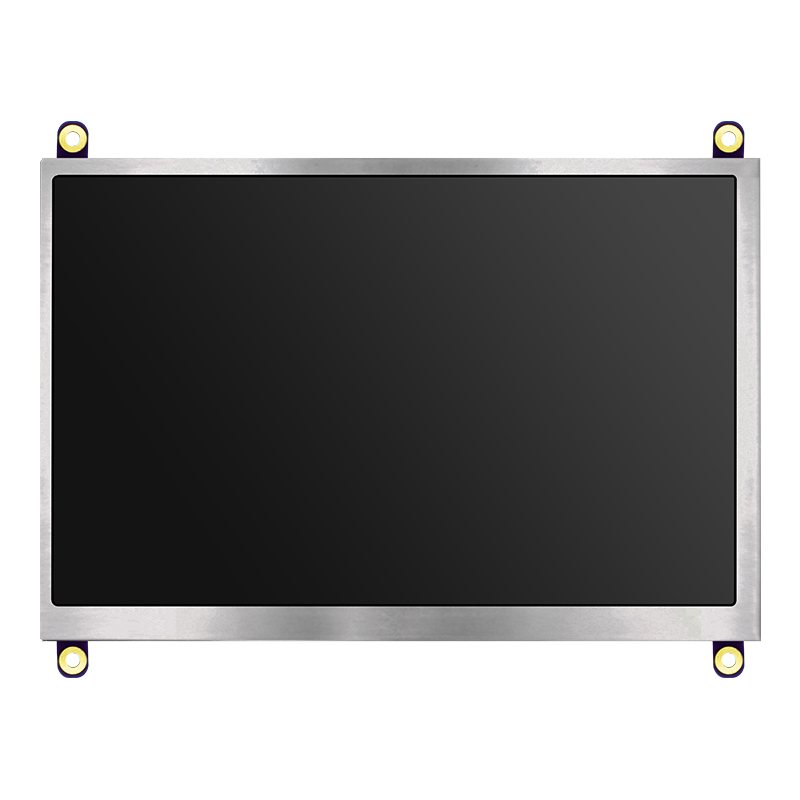

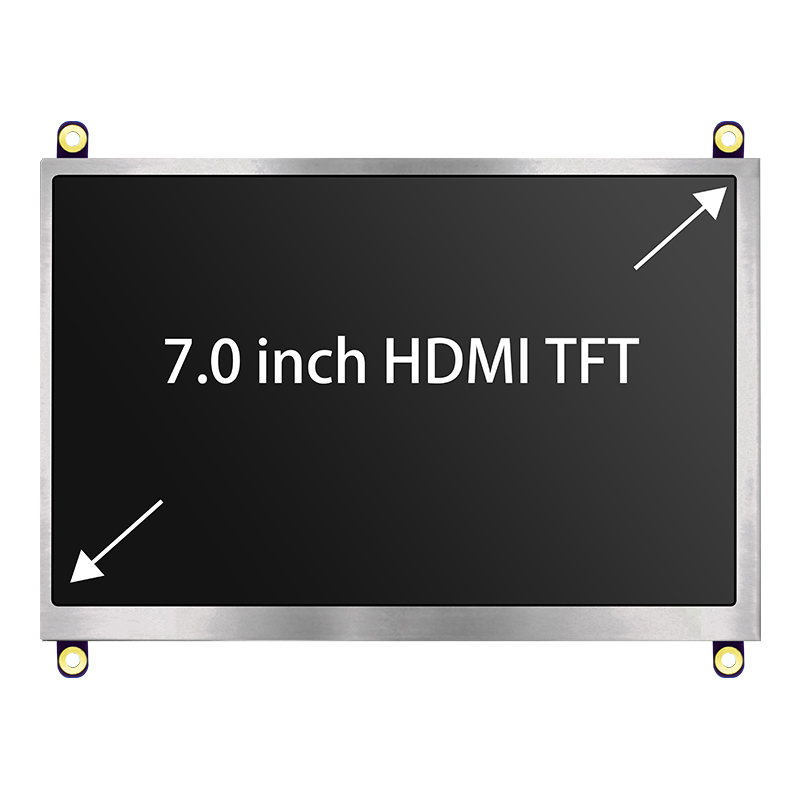

  • Model : 7 inch 1024x600px TFT color LCD module with driver board/optional touch function/HTM -TFT070 A7

    Product type: TFT Module

    Show contents:1024x600

    Outline size(mm) :166.1x101.2x8.3

    Size of View Window(mm):7.0

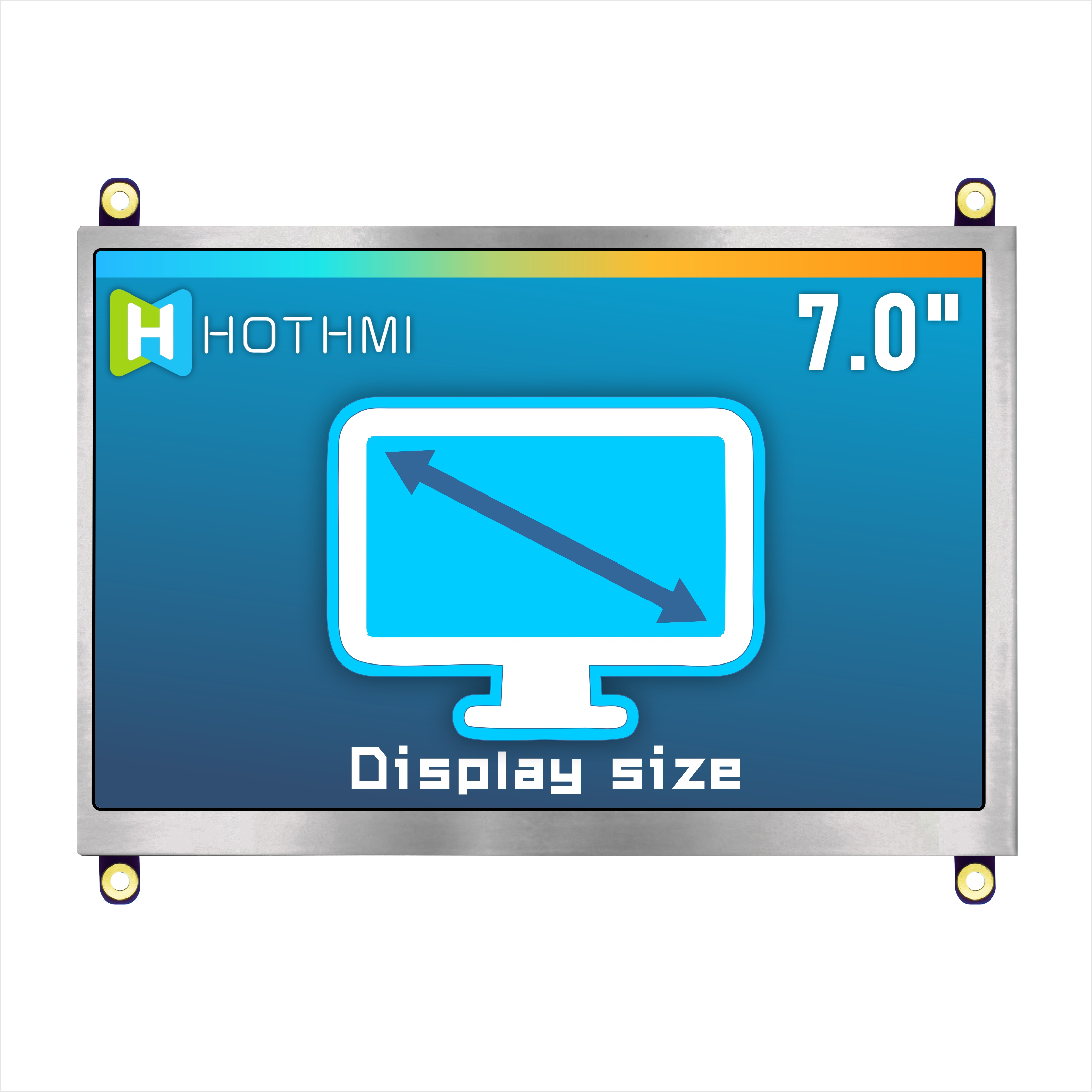

    Display size(mm) :7.0

    Effective size(mm):154.21x85.92

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

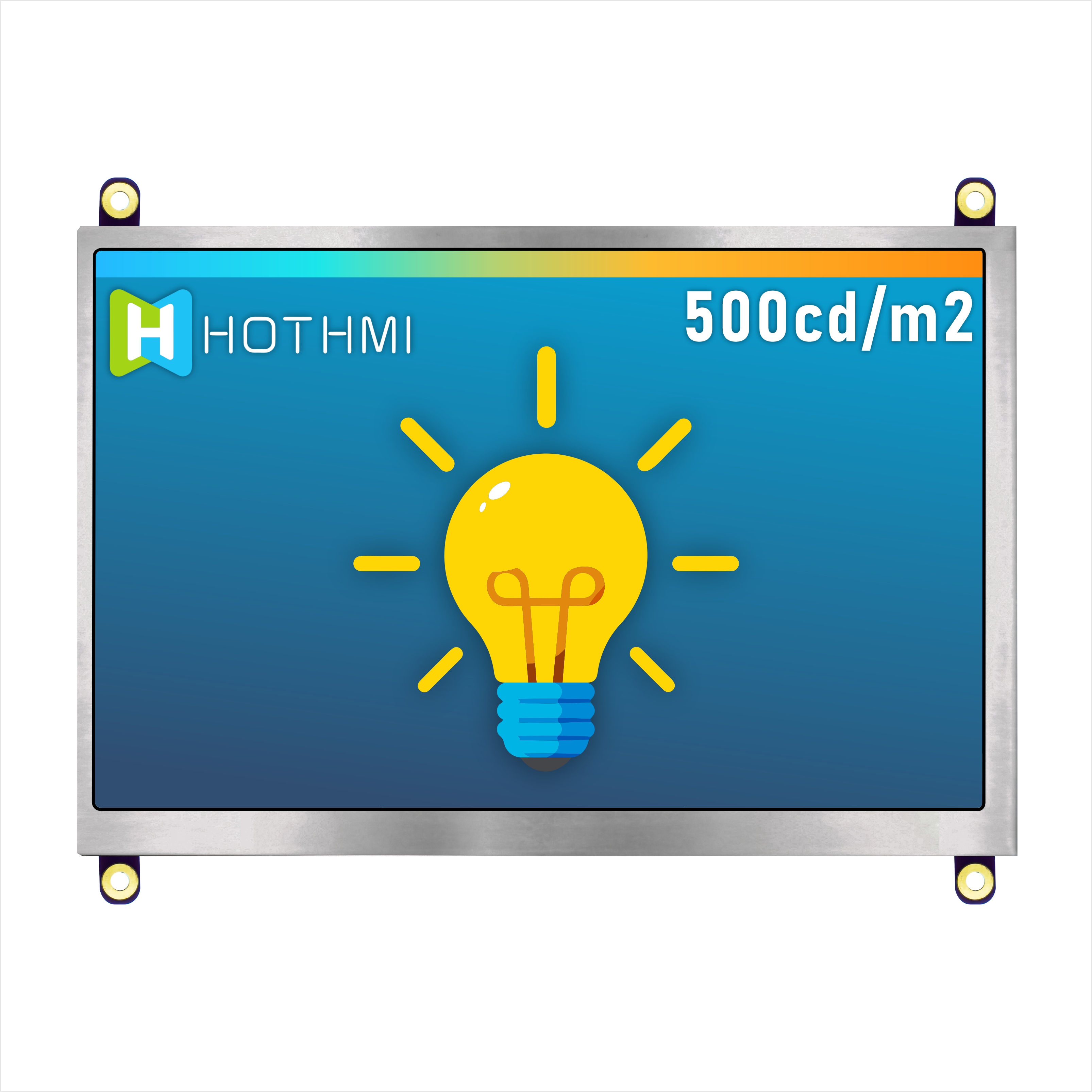

    Backlight type or brightness:500cd/m2

    Connection PIN Number:22pin

    Interface mode:VGA

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:9V~12V

    Driver chip model:T.B.D

Product description

HTM -TFT070 A7| 7.0" LCD  Driver-Free Module | 1024x600 Pixels |  Interface | 23-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen

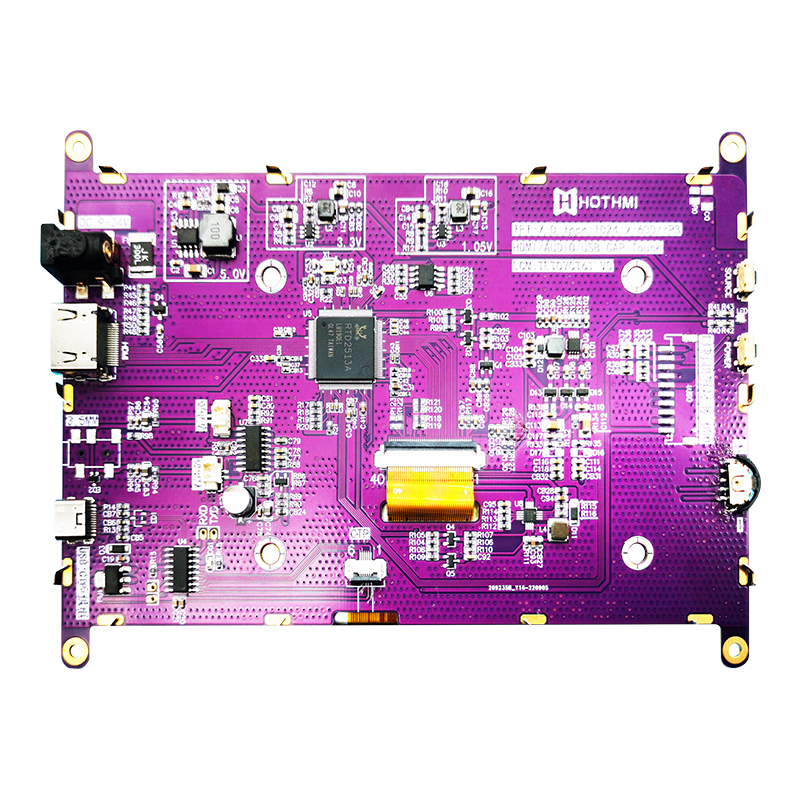

HTM-TFT070 A7- Is A 7-Inch Color LCD Display Module With  Driver Board, 1024x600 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen With USB Interface Driver Board. In Order To Make It More Convenient For Customers To Use, We Redesigned The  Driver Board To Integrate It With The Display Screen, Which Can Save More Space For Customers. Four Positioning Holes Make Installation More Convenient For Customers. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Vehicles, Security, Various Instruments, Smart Devices, Etc. Suitable For Raspberry Pi, Etc. When Used On Raspberry Pi, It Is Compatible With Raspbian, Ubuntu, WIN10 IOT And Other Operating Systems, And Supports Single-Touch. Desktop Computers Are Compatible With Windows 7/8/8.1/10 And Other Systems, And Support 5-Point Touch. All Materials Comply With Environmental Requirements RoHS Standards.
