COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

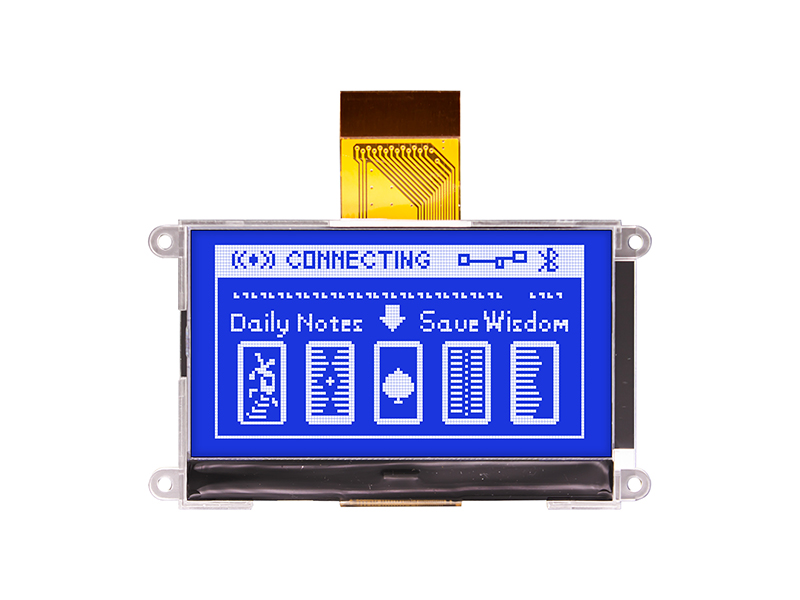

| 128x64 Blue COG LCD Display with ST7565R For C8051-Arduino HTG12864-53B-25W-20C10 -V01 | COG | 128x64 |
|
65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||||

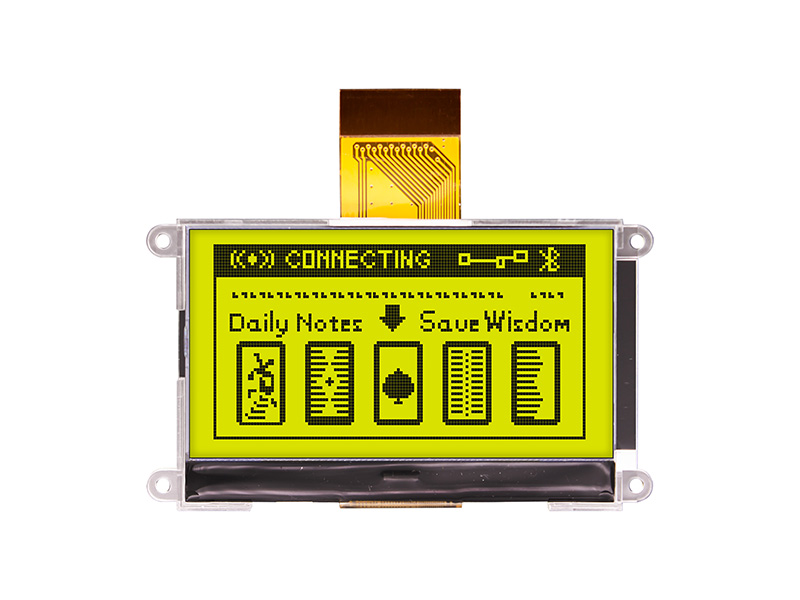

| 2.8-inch 128x64 yellow-green COG graphic LCD-STN(+) Graphic COG-ST7565R-Arduino HTG12864-53B-11Y-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

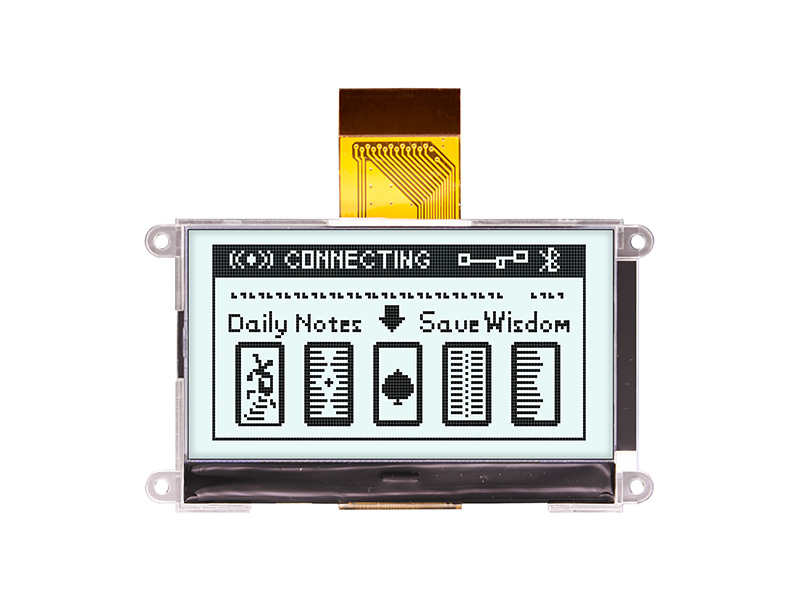

| 128x64 Dot Matrix COG LCD for Arduino HTG12864-53B-11W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||
| 2.8 inch DFSTN(-)COG Display with ST7565R for Arfuino HTG12864-53B-41W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||
| 128x64 inch Gralhic LCD Display - FSTN(+)Black on white - ST7565R -Arduino HTG12864-53B-31W-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

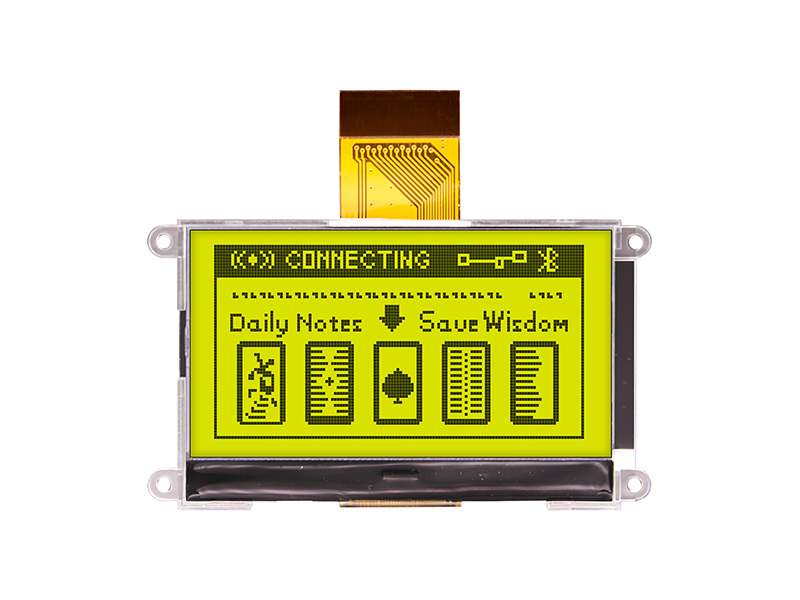

| 2.8 inch 128x64 Dot Matrix LCD Display with ST7565R Controller HTG12864-53B-01Y-20C10 -V01 | COG | 128x64 |
|
74x48x5.4 | 70.0x37.0 | 65.265x32.625 | 0.51x0.51 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

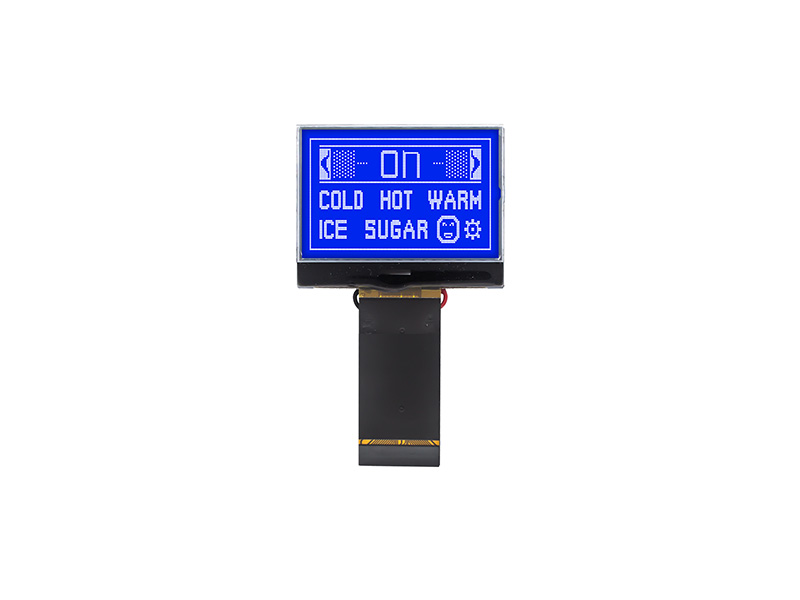

| 1.5 inch 128x64 COG LCD display module | STN(-) white on blue COG | ST7565R HTG12864C09-25W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

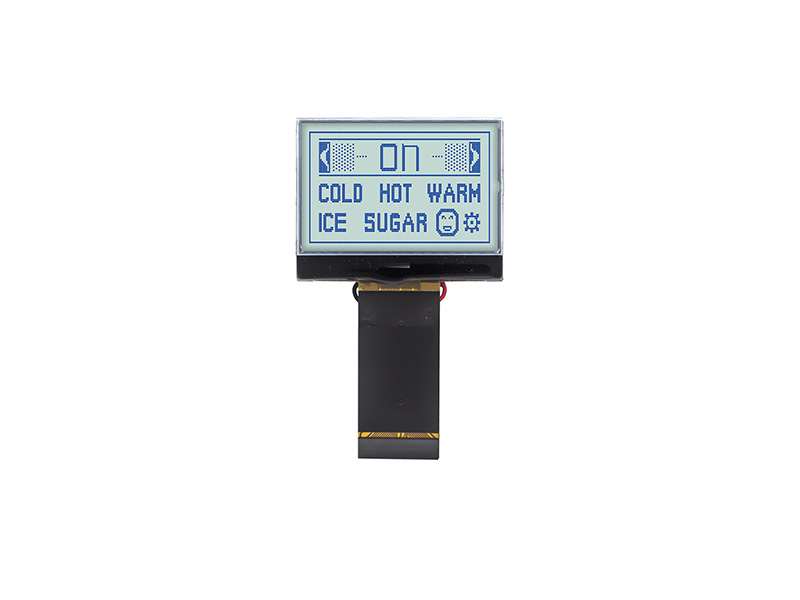

| 128x64 dot matrix 1.5-inch COG LCD display | STN(+) gray background blue text COG | ST7565R 3.3V HTG12864C09-11W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

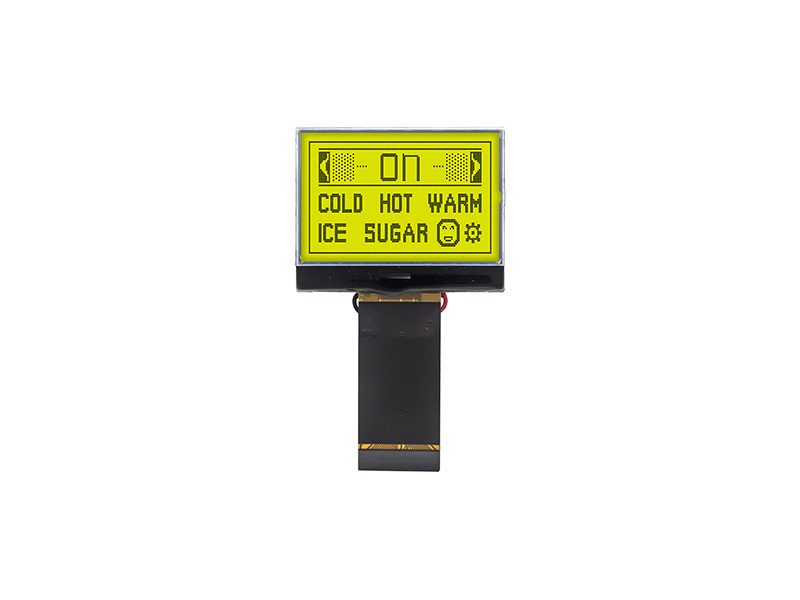

| 1.5 inch 128x64 COG LCD display | STN(+) YG dot matrix COG | ST7565R HTG12864C09-11Y-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R | ||

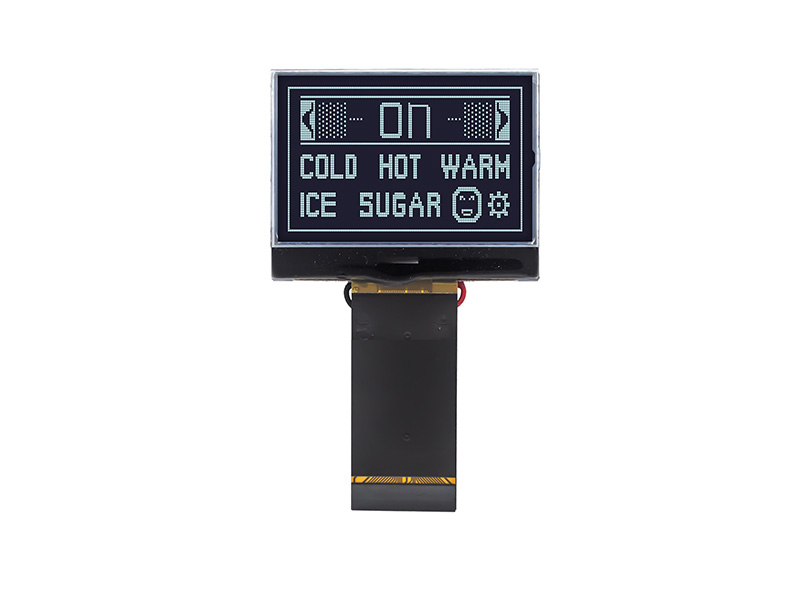

| 128x64 Graphic LCD | DFSTN- Black Display with Side White | ST7565R HTG12864C09-41W-30C05-V46 | COG | 128x64 |
|
39.0x31.1x4.2 | 36.0x23.5 | 33.26x20.46 | 0.32x0.26 | 6H | 30PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7565R |
