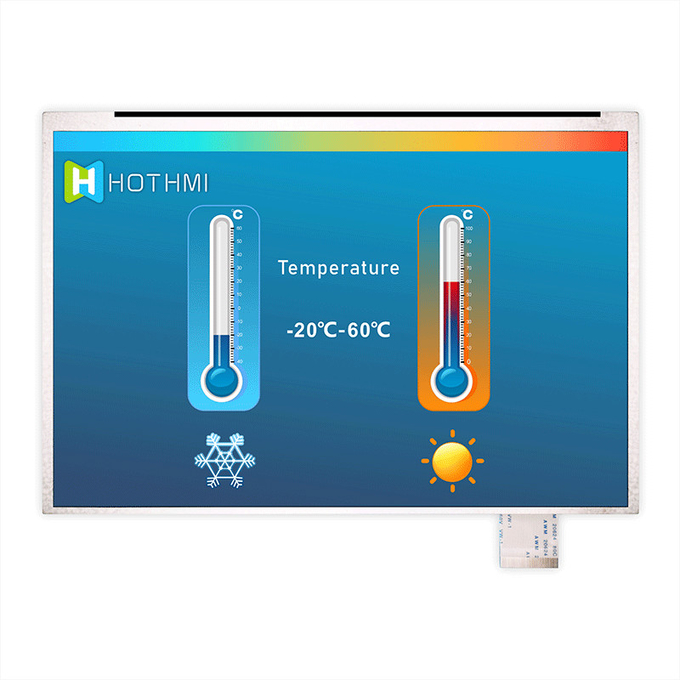

類型：TFT橫屏
顯示像素：1920x1200
外形尺寸 ：230.20x150.00x21.55

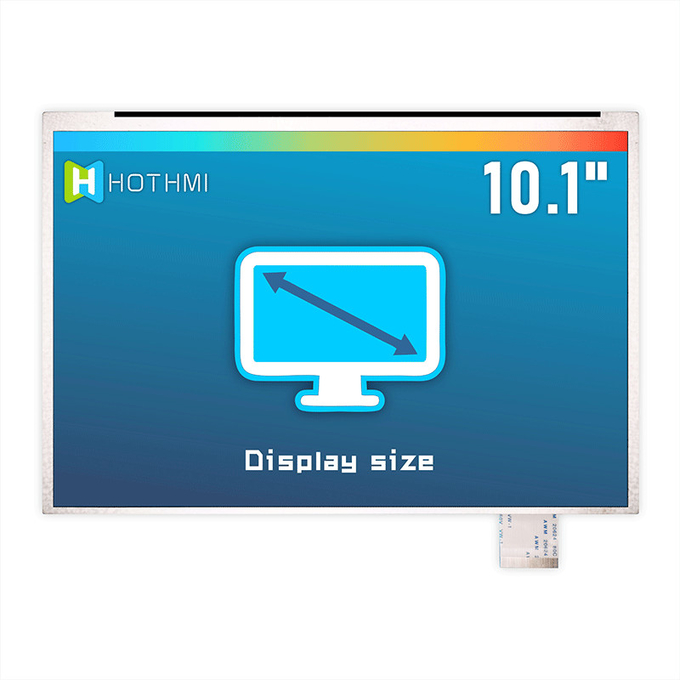

VA尺寸：10.1
AA尺寸 ：10.1
有效尺寸mm：216.81x135.50
應用：車載，醫療，工控

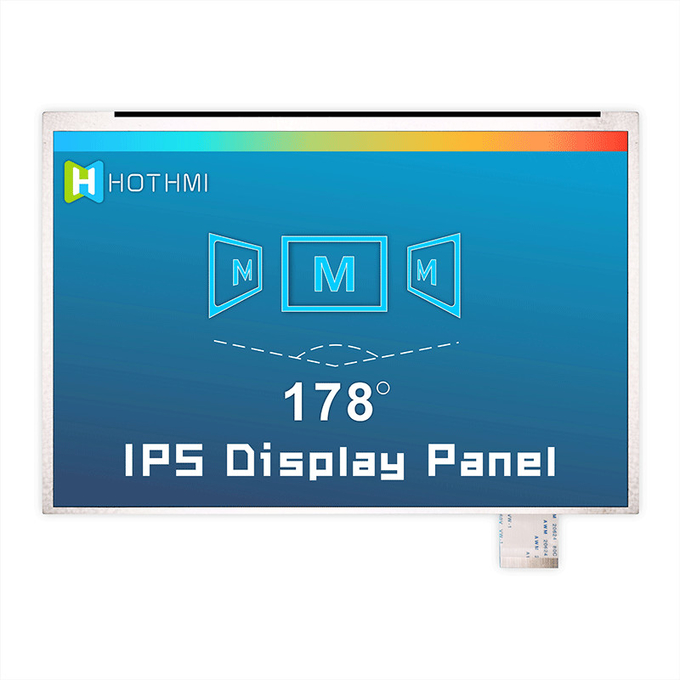

視角：全視角
背光/亮度：1000cd/m2
接口方式：VGA

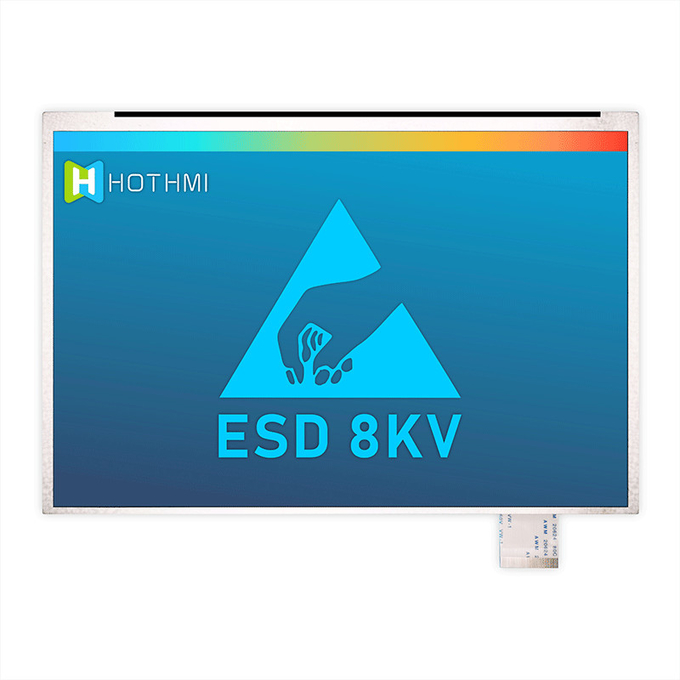

特殊說明：抗靜電ESD 8KV
工作溫度：-20~60℃
供電電壓：12.0V
驅動芯片：T.B.D
這款 10.1 英寸、24 位真彩色 IPS TFT LCD 模塊具有內置的 兼容性，可通過更少的電纜簡化設備之間的連接。 為了提供額外保護，這款 10.1" 顯示器還在輸入電源線上包含一個 EMI 濾波器。IPS 技術和 1920x1200 分辨率屏幕提供陽光下可讀的亮度、更好的色彩再現、更好的圖像一致性以及在任何角度下都更好的光學特性。組裝到 顯示器，定制 PCB 為用戶提供一體化、即插即用的 HI 解決方案。它連接到鋼制安裝支架，帶有螺紋支架和與機架單元 (RU) 間距兼容的安裝孔，簡單、 安全安裝。左右揚聲器端子適用于 8 歐姆揚聲器，每個揚聲器功率高達 10 瓦。還有一個板載模擬設備 ADV7611 接收器和一個帶 PWM 的高亮度 LED 背光。是否需要為您的 Raspberry Pi 顯示 、BeagleBone、Windows 或適用于 Linux 或其他嵌入式系統的觸摸屏 HMI，此顯示器提供了解決方案。此液晶顯示器也符合 RoHS 標準，不包括觸摸屏 重新。
產品介紹

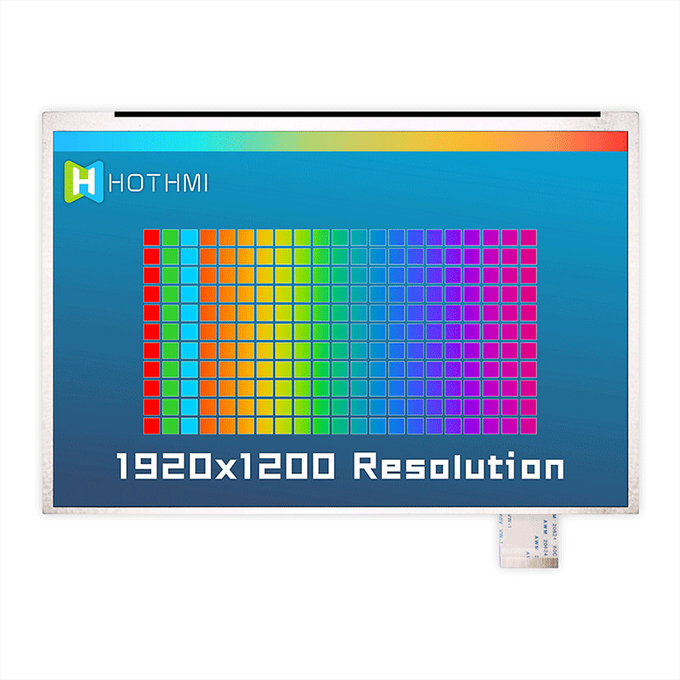

-10.1寸標準顯示器，1920x1200高清分辨率

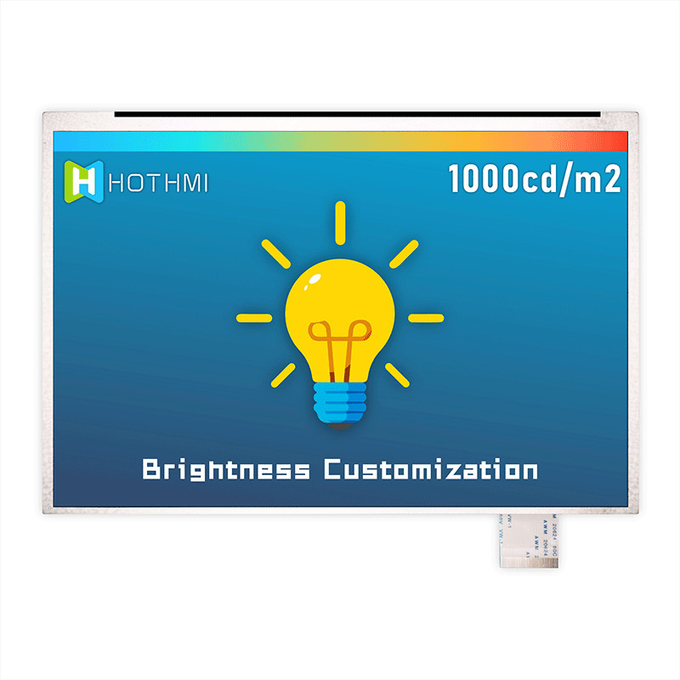

-顯示亮度高達1000 cd/m 2 ，壽命長達30,000小時。 當然可以根據需要定制更高的亮度和更長的壽命。
-支持OSD控制鍵，幫助用戶將LCD調整到適合不同應用的最佳狀態，OSD菜單可中英文切換。 當然也可以根據需要定制其他語言。
-支持VGA 1.4A兼容數字輸入接口

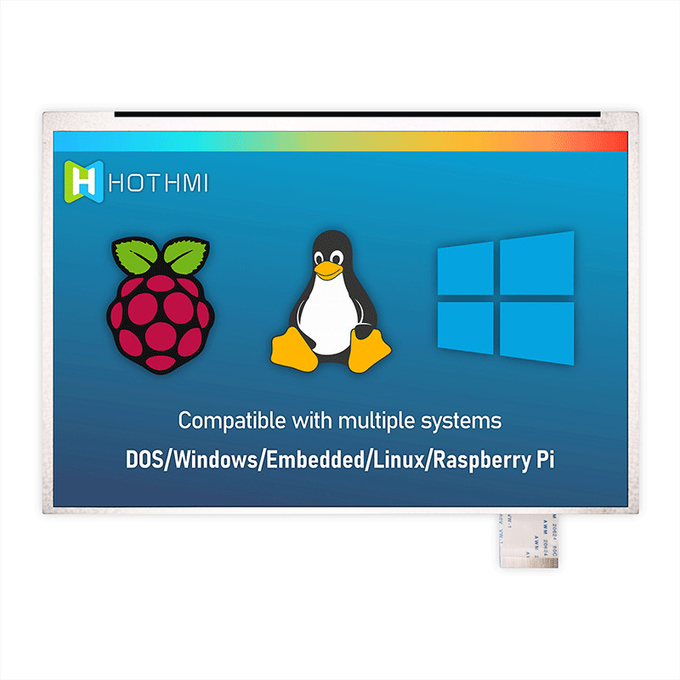

-兼容DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux等主流操作系統和嵌入式操作系統。
General Feature
Item | Standard Value | Unit | ||
Display Size | 10.1 | Inch | ||
Number of Pixels | 1920(H)*3(RGB)* 1200(V) | dots | ||
Active Area | 216.81(H)* 135.50(V) | mm | ||
Outline Dimension | 230.20(H) * 150.00(V) * 21.55(D) | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | 1.4 | - | ||
Driver IC | T.B.D | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=12V | V | ||
TFT Operation AT | -20 ～ +60 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
Port Description
?Power Input Connector Description
1,Polarity: inside positive and outside negative
2,Contact inner diameter: 2mm/contact outer diameter: 6.3mm
3,Rated load: 12V/2A
| Pin NO. | Symbol |
| 1 | VIN |
| 2~3 | GND |
?HI Type A Connector Description
| Pin NO. | Symbol |
| 1 | TMDS D2+ |
| 2 | TMDS D2 Shield |
| 3 | TMDS D2- |
| 4 | TMDS D1+ |
| 5 | TMDS D1 Shield |
| 6 | TMDS D1- |
| 7 | TMDS D0+ |
| 8 | TMDS D0 Shield |
| 9 | TMDS D0- |
| 10 | TMDS CK+ |
| 11 | TMDS CK Shield |
| 12 | TMDS CK- |
| 13 | NC |
| 14 | NC |
| 15 | DDC CLK |
| 16 | DDC DATA |
| 17 | GND |
| 18 | +5V Power |
| 19 | HPD |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

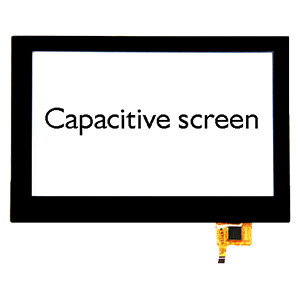

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
