類型：TFT豎屏

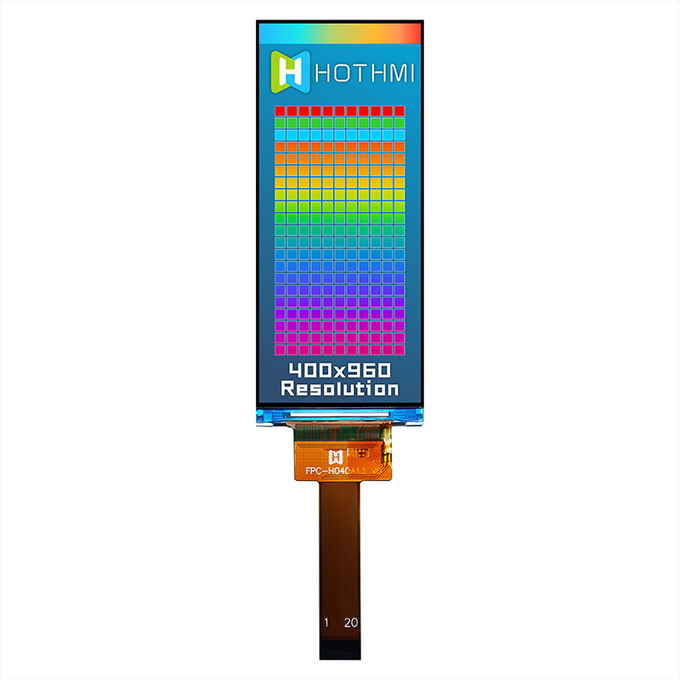

顯示像素：400x960
外形尺寸(mm) ：101.58×41.40×2.04
VA尺寸(mm)：4.0
AA尺寸(mm) ：4.0
有效尺寸mm：94.03x39.18
應用：儀器儀表

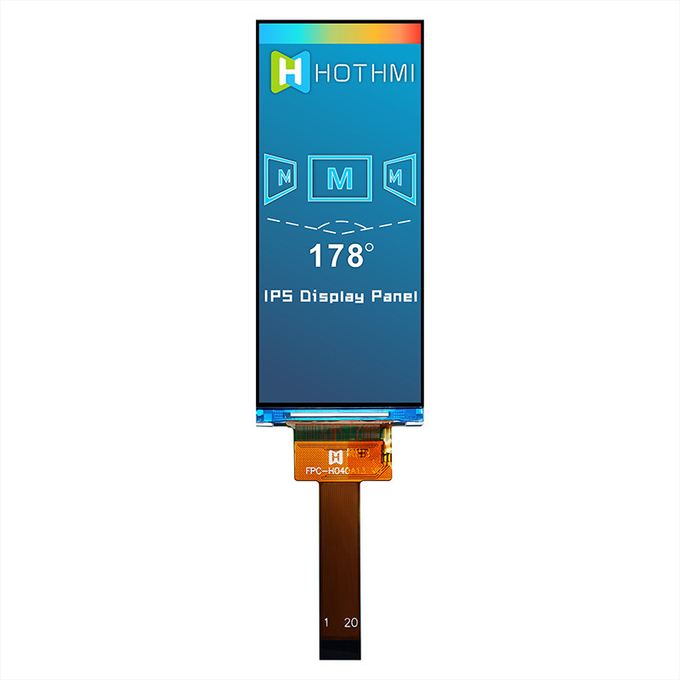

視角：全視角

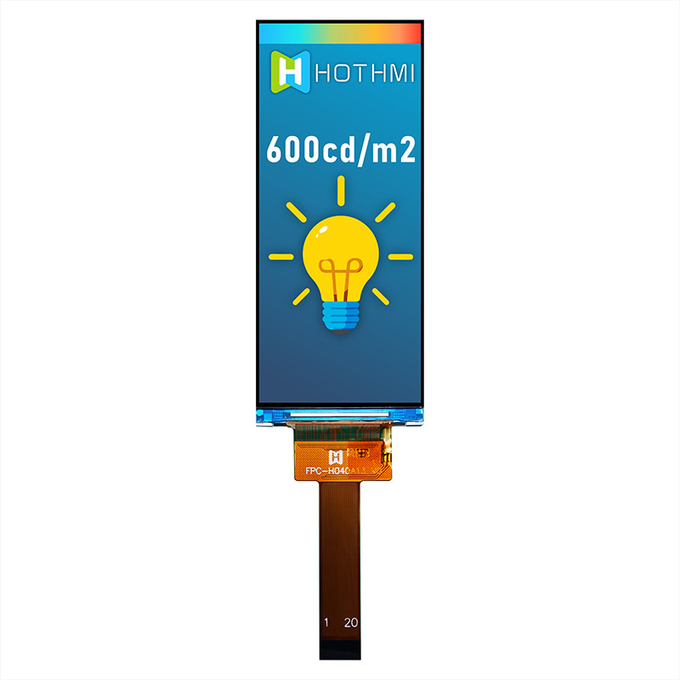

背光/亮度：600cd/m2
引腳：20pin
接口方式：MIPI

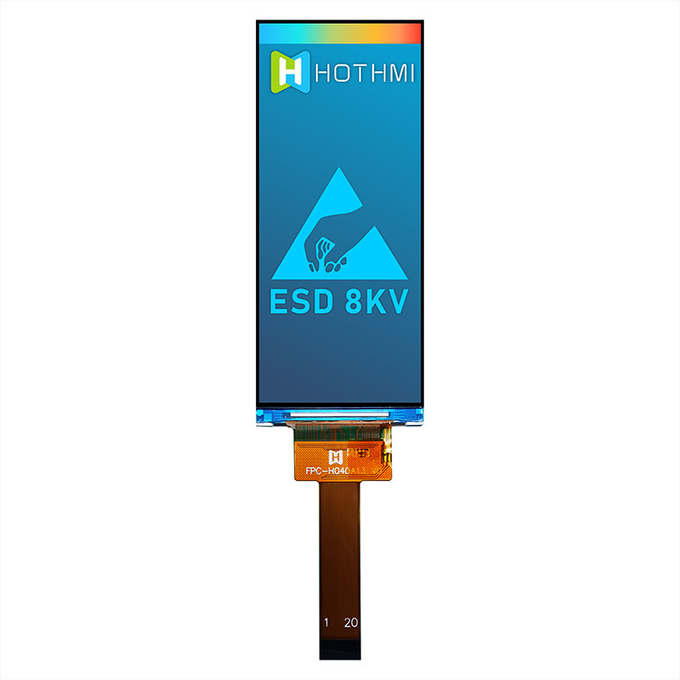

特殊說明：抗靜電ESD 8KV

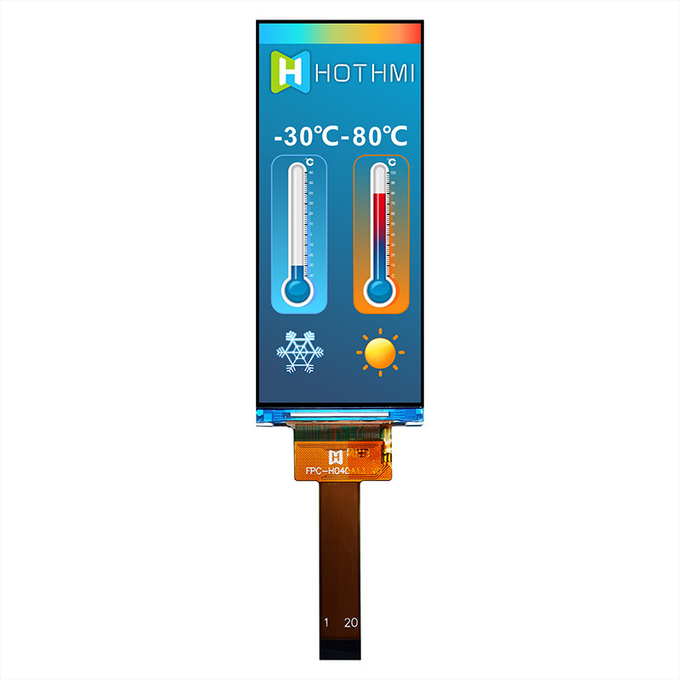

工作溫度：-30~80℃
供電電壓：3.3V

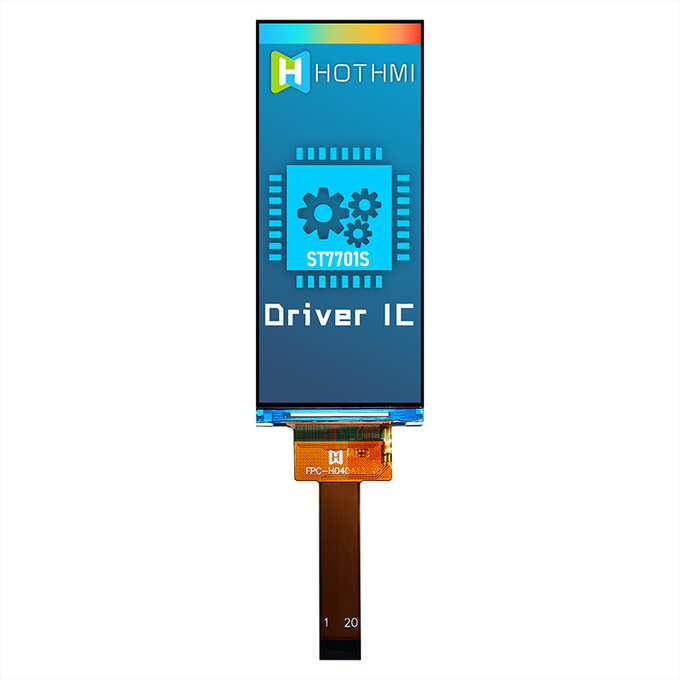

驅動芯片：ST7701S

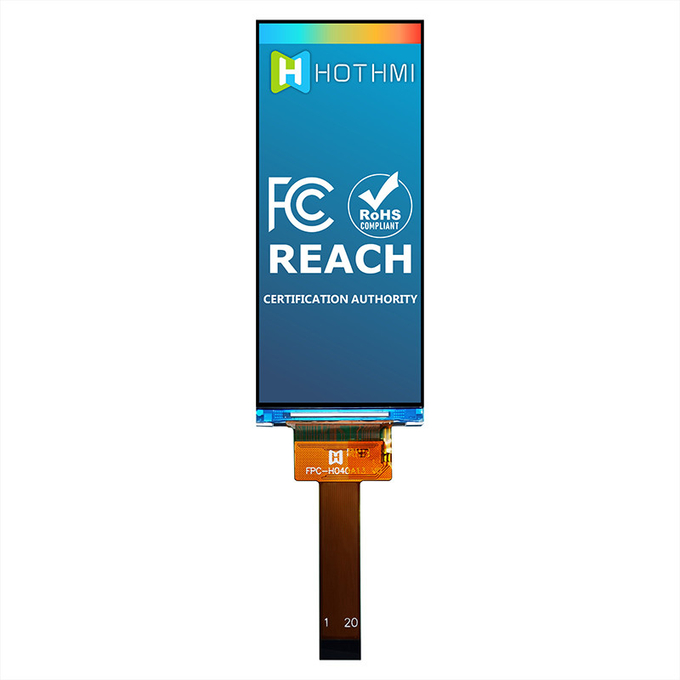

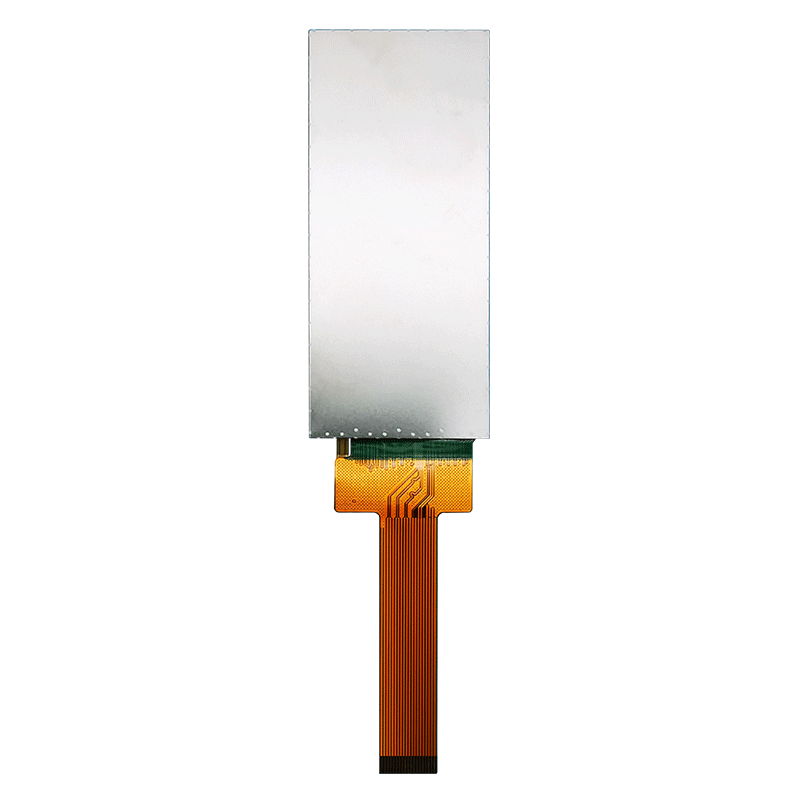

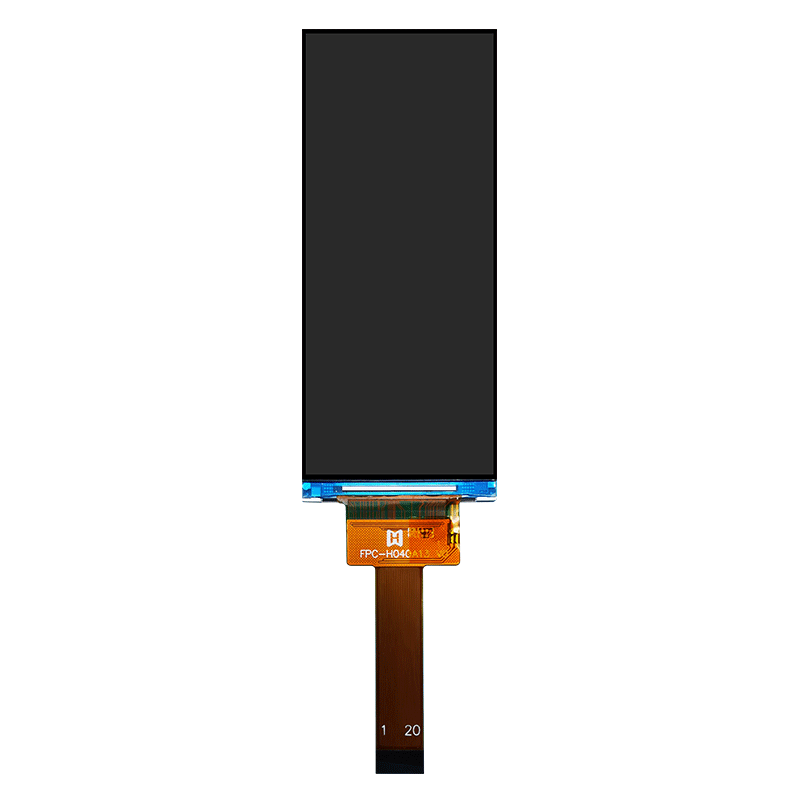

4.0寸長條形TFT 400x960分辨率 IPS全視角 高亮度 寬溫 TFT-H040A13ZDIST6N20
TFT-H040A13ZDIST6N20 | 4.0" IPS液晶顯示屏 | TFT液晶顯示屏制造商 | 400x960分辨率 | -30℃~80℃ | 可用于儀器儀表 | 陽光可讀 | 寬溫度范圍
這款4.0英寸IPS液晶顯示屏是一款專門設計用于戶外儀器儀表的高性能顯示器。它具有高分辨率的400x960像素，保證了清晰、生動的圖像展示效果。此外，該顯示屏還具備出色的陽光可讀性能，讓您在強烈日光下也能輕松查看信息。作為一款TFT液晶顯示屏制造商的產(chǎn)品，我們的TFT-H040A13ZDIST6N20采用高品質材料和先進工藝，確保了其長壽命和高可靠性。寬廣的工作溫度范圍（-30℃~80℃）意味著它可以在惡劣的環(huán)境條件下正常工作，從而滿足各種戶外應用場景的需求。如果您需要一款可靠、高效、易于集成的液晶顯示屏來應用于戶外儀器儀表等場景，TFT-H040A13ZDIST6N20將是您的理想選擇。請聯(lián)系我們獲取更多信息。
General Feature
Item | Standard Value | Unit | ||

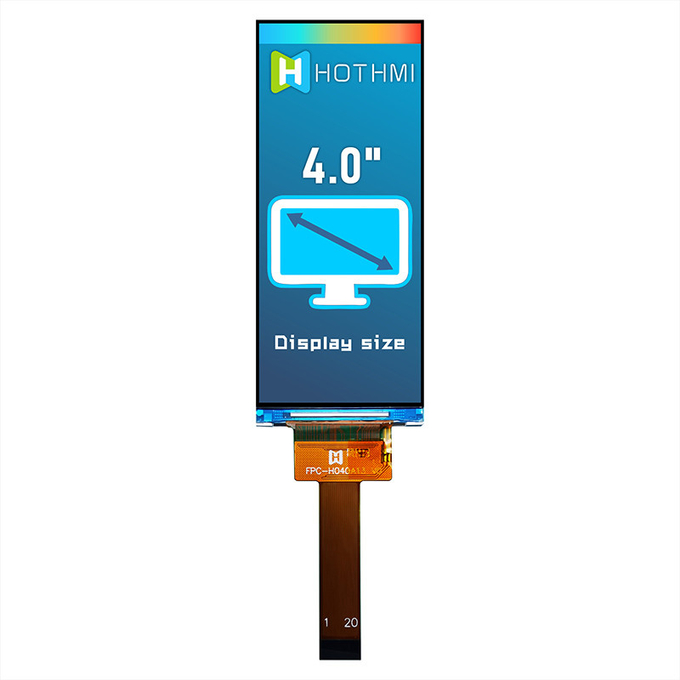

Display Size | 4.0 | Inch | ||
Number of Pixels | 400(H)*3(RGB)* 960(V) | dots | ||
Active Area | 94.03x39.18mm | mm | ||

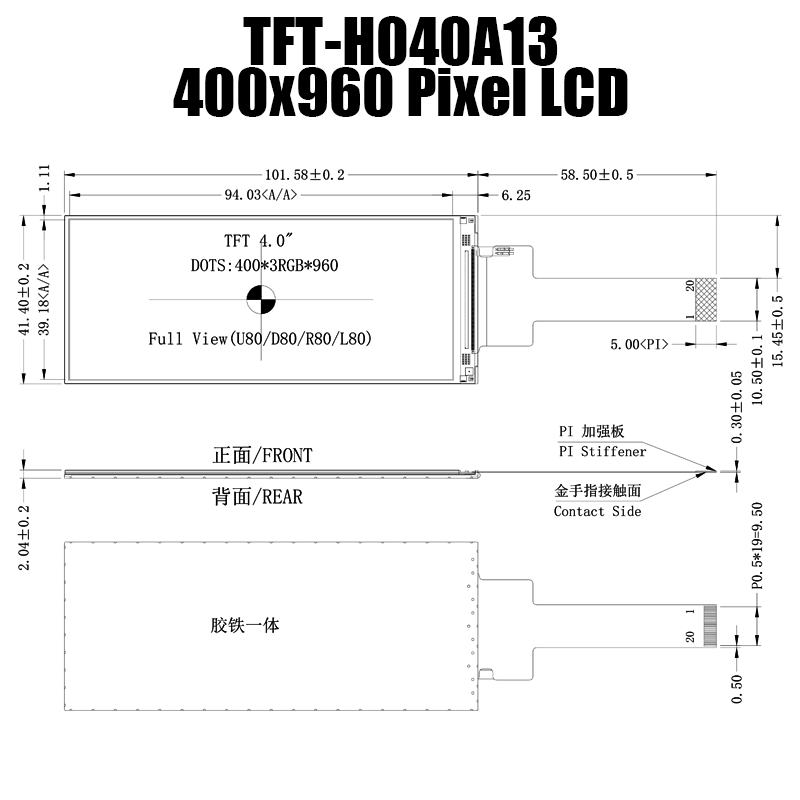

Outline Dimension | 101.58×41.40×2.04 | mm | ||
Viewing Direction | FULL O'clock | - | ||

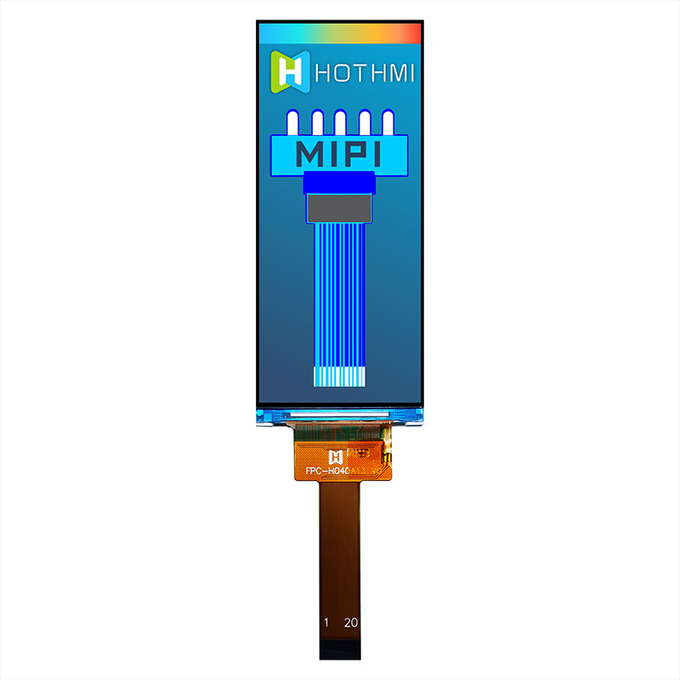

Interface | MIPI 4L | - | ||
Driver IC | ST7701S | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -30 ～ +80 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
