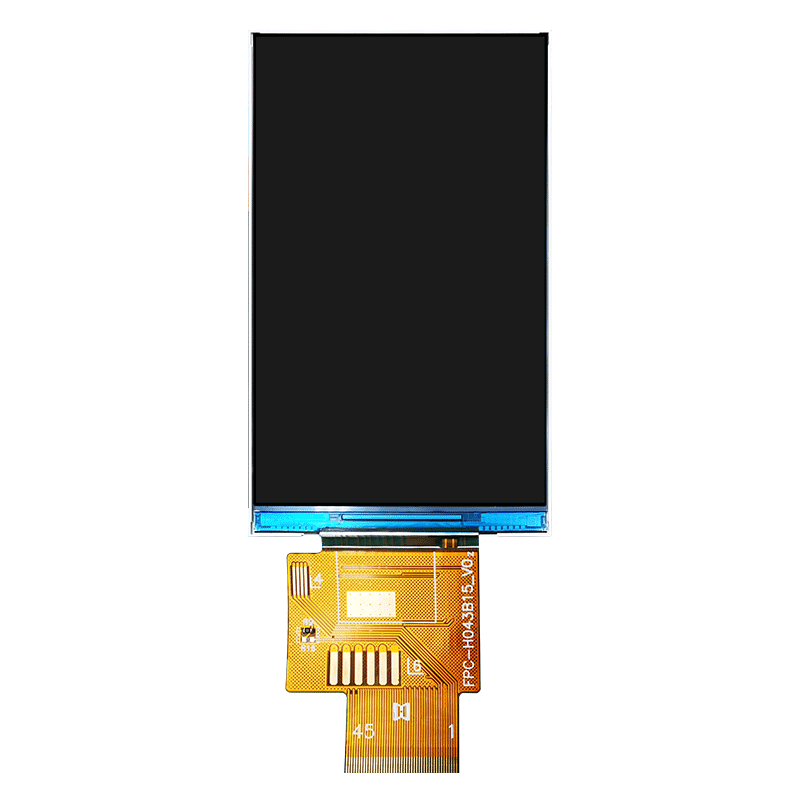

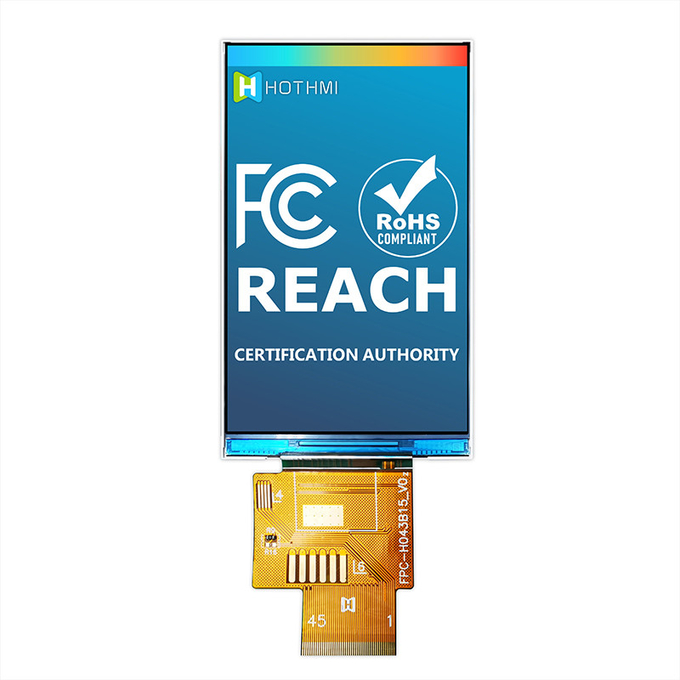

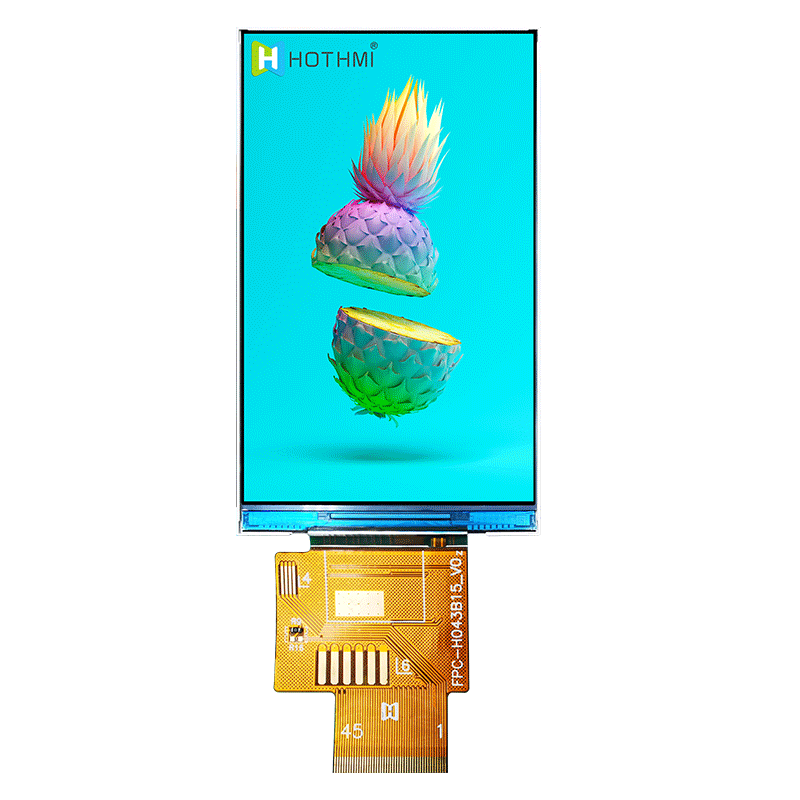

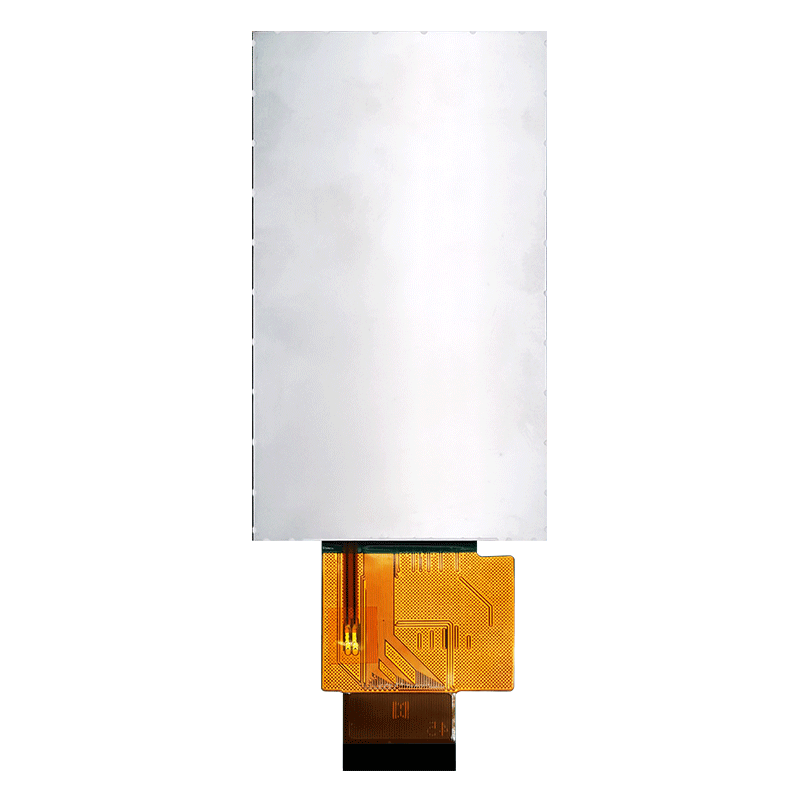

  • 型號: 4.3寸 TFT LCD 顯示模塊 480X800分辨率 TFT LCD 顯示器制造商用于儀器儀表 H043B15WVIST4N45

    類型:TFT豎屏

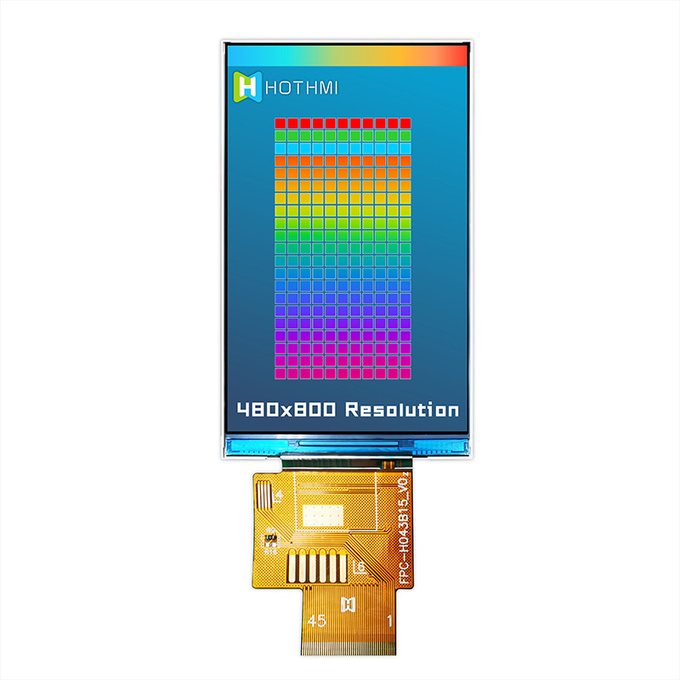

    顯示像素:480x800

    外形尺寸 :60.86x102.57x2.3

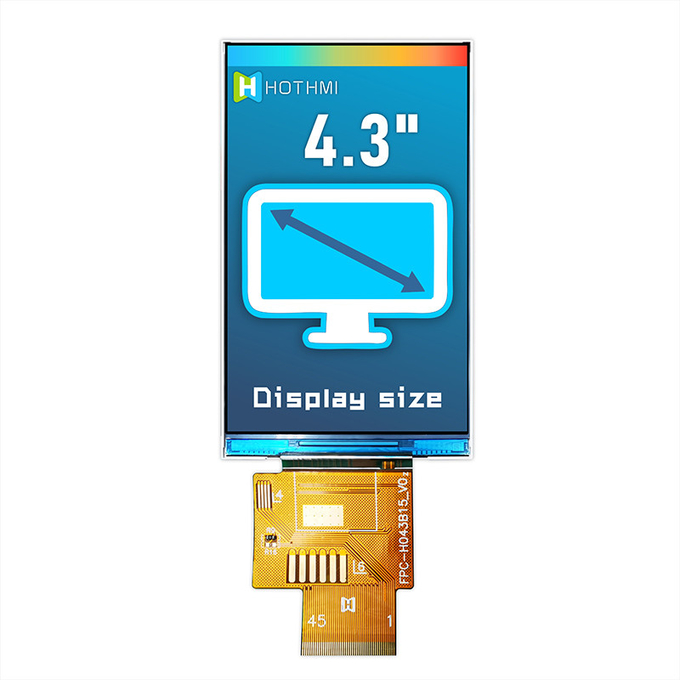

    VA尺寸:4.3

    AA尺寸 :4.3

    應用:儀器儀表

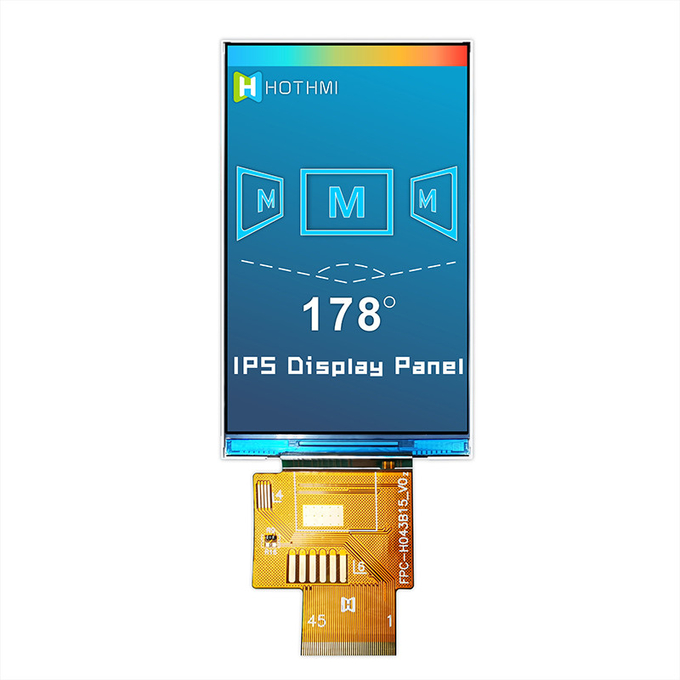

    視角:全視角

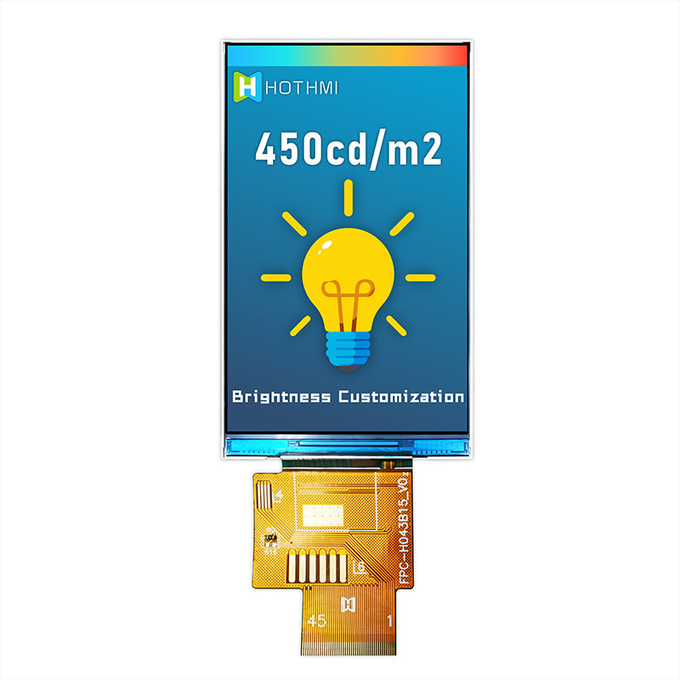

    背光/亮度:450cd/m2

    引腳:45pin

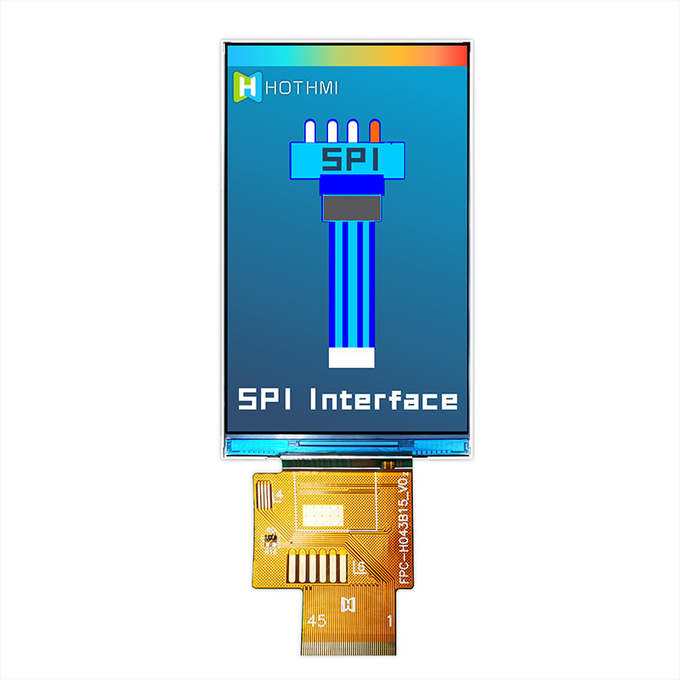

    接口方式:SPI

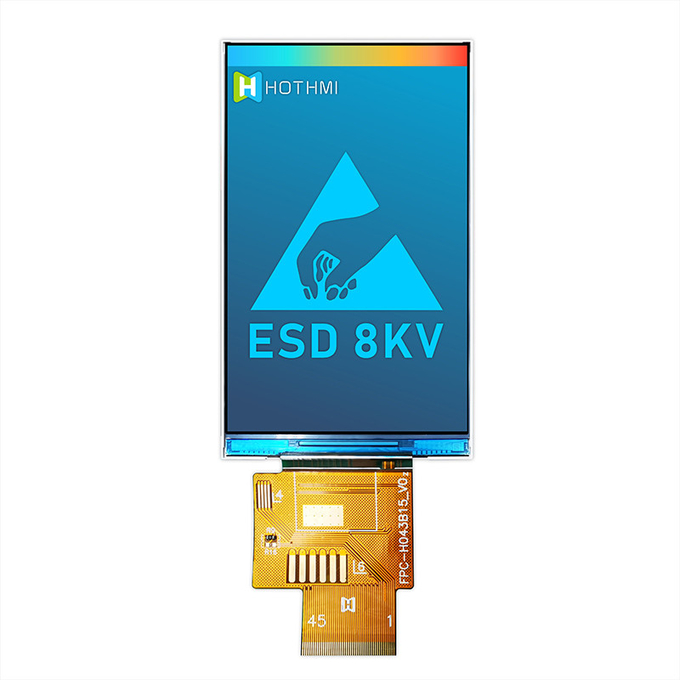

    特殊說明:抗靜電ESD 8KV

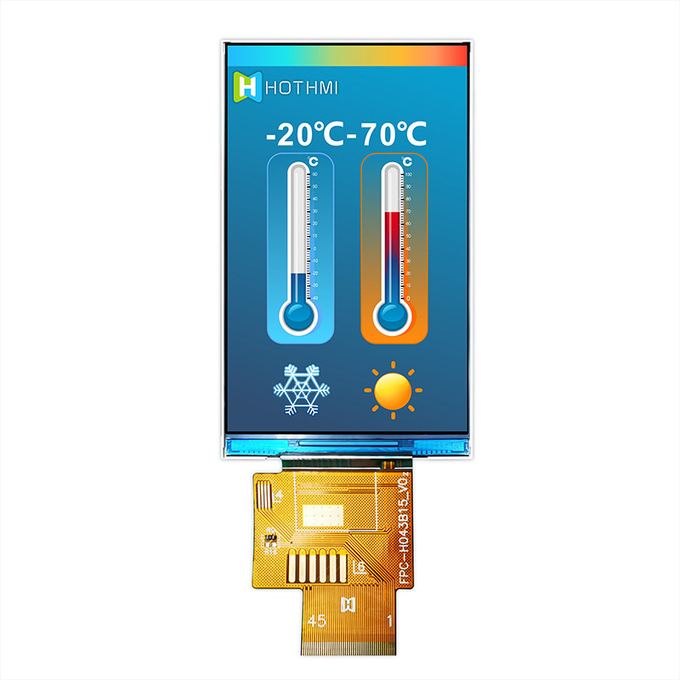

    工作溫度:-20~70℃

    供電電壓:2.8v

    驅動芯片:ST7701S

    PDF下載
產品敘述

4.3寸 TFT LCD 顯示模塊 480X800分辨率 TFT LCD 顯示器制造商用于儀器儀表 H043B15WVIST4N45



TFT-H043B15WVIST4N45 | 4.3英寸IPS LCD顯示屏 | TFT LCD顯示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于儀器儀表



隆重推出 TFT-H043B15WVIST4N45,這是一款專為儀表應用設計的高品質 4.3 英寸 TFT LCD 顯示模塊。 該模塊具有 480x800 像素的分辨率和 IPS LCD 顯示屏,可提供清晰的圖像和鮮艷的色彩,非常適合顯示關鍵數據和信息。

該模塊由領先的 TFT LCD 顯示器制造商設計和制造,具有 -20℃ 至 70℃ 的寬溫度范圍,適用于各種環境。 其緊湊的尺寸和易于使用的界面使其易于集成到您現有的儀器系統中。

無論您是設計新儀器還是升級現有儀器,TFT-H043B15WVIST4N45 都能提供完成工作所需的可靠性和性能。 憑借其高質量的顯示屏和耐用的結構,該模塊一定能滿足您未來幾年的需求。

那為什么還要等? 立即訂購您的 TFT-H043B15WVIST4N45 TFT LCD 顯示模塊,親身體驗不同之處!



General Feature



Item

Standard Value

Unit

Display Size

4.3

Inch

Number of Pixels

480(H)*3(RGB)* 800(V)

dots

Active Area

56.16x93.6mm

mm

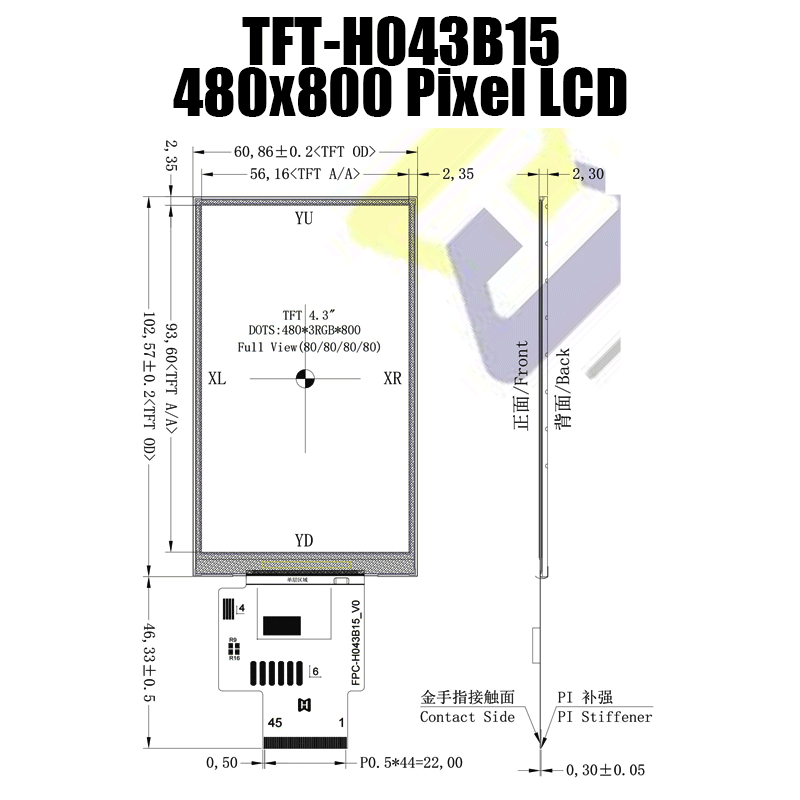

Outline Dimension

60.86x102.57x2.3

mm

Viewing Direction

FULL O'clock

-

Interface

SPI+RGB

-

Driver IC

ST7701S

-

Driver Condition

VCI=2.8V(Typ)

V

Backlight

-

-

Touch Panel

WHITOUT TOUCH


CTP Driver IC

--

Driver Condition

VDD=2.8

V

TFT Operation AT

-20 ~ +70

TFT Storage AT

-30 ~ +80



Pin Description



Pin NO.Symbol

Description

1RTP-XR/CTP-SCLTouch control pin
2RTP-YD/CTP-SDATouch control pin
3RTP-XL/CTP-INTTouch control pin
4RTP-YU/CTP-RESTouch control pin
5~6GNDGround
7VCIDigital Power
8IOVCCPower Supply for I/O System
9SDOSerial data output pin used for the SPI Interface.
10SDISerial data input/output bidirectional pin for SPI Interface.
11SCLSerial clock input for SPI interface.
12CSA chip select signal
13RESXTFT Reset Pin
14~21DR[7~0]Red data bus
22~29DG[7~0]Green data bus
30~37DB[7~0]Blue data bus



38



DEN

Data input enable.

Low: access enabled ;

High: access inhibited

39PCLKPixel clock input pin
40HSDHorizontal sync signal
41VSDVertical sync signal
42NCNo Connect
43LEDKLED Cathode
44NCNo Connect
45LEDALED Anode



All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
