Product type：Character LCD Module
Show contents：16x1
Outline size(mm) ：1.212x1.825
Size of View Window(mm)：120.0x23.0
Display size(mm) ：114.0x14.54
Point spacing(mm)：1.212x1.825
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

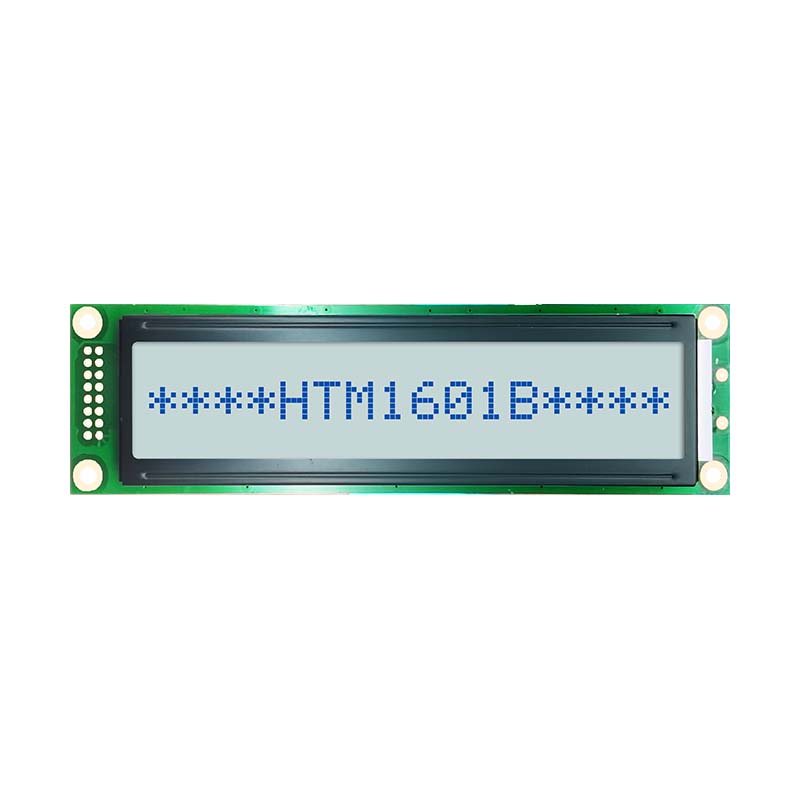

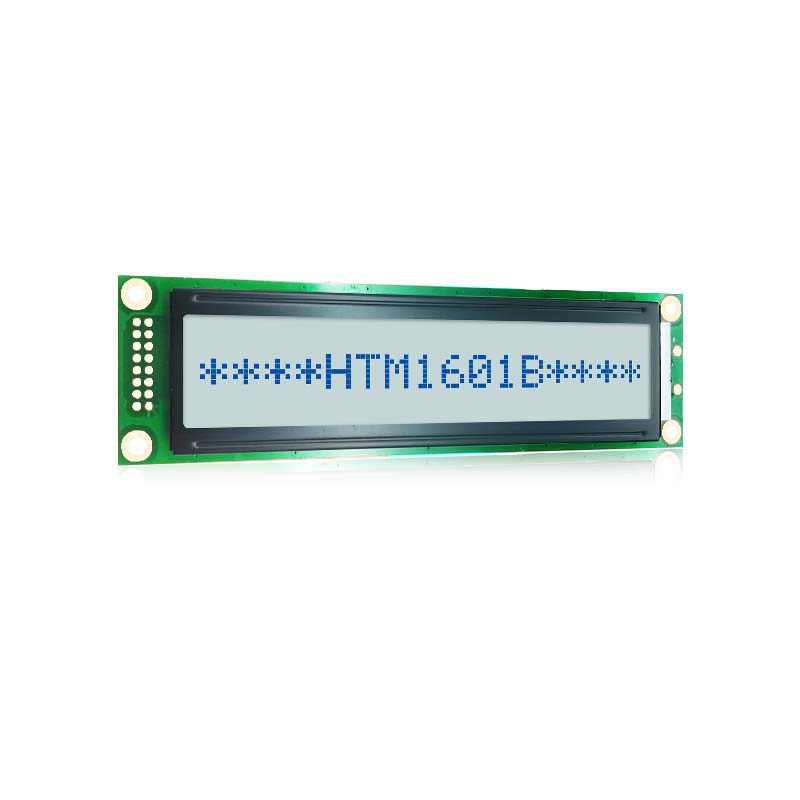

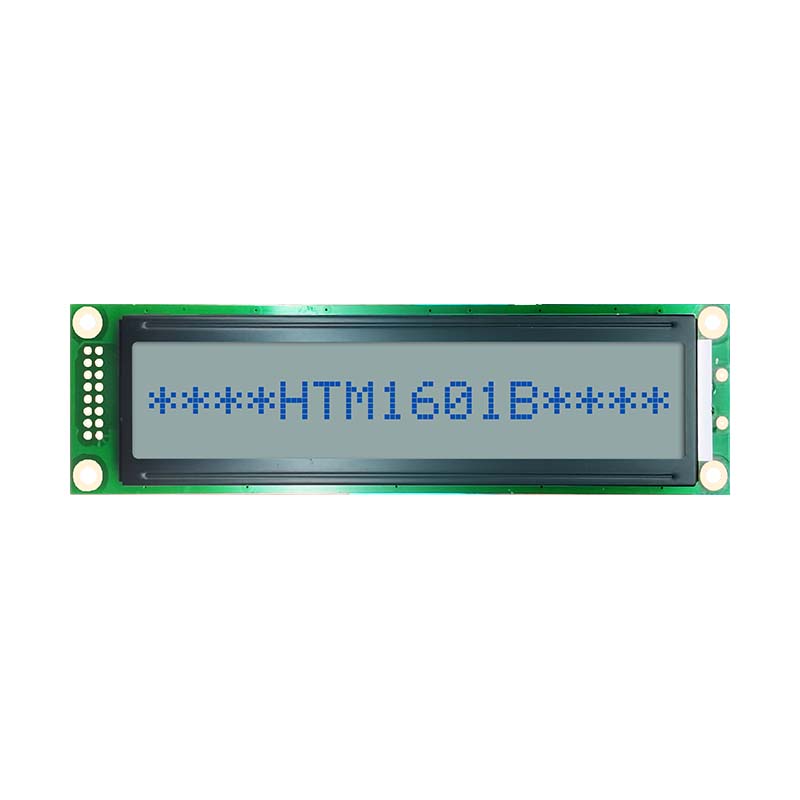

If you are looking for a reliable and easy to use 16 character, single-row LCD, the HTM-1601B-11W-A5P is an excellent option. It is a high-quality display that is suitable for applications . It operates at a supply voltage of 5V and is compatible with Arduino and other similar boards and microcontrollers. This reflective, monochrome display works flawlessly with C, C++, and Python and can be used with parallel communication. This 16-pin standard LCD has a wide operating temperature and is RoHS compliant.
