Product type：Character LCD Module
Show contents：16x1
Outline size(mm) ：151.0x40.0x9.6
Size of View Window(mm)：120.0x23.0
Display size(mm) ：114.0x14.54
Point spacing(mm)：1.212x1.825
Product application：Instruments
Visual angle：6H
Backlight type or brightness：R/G/B
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

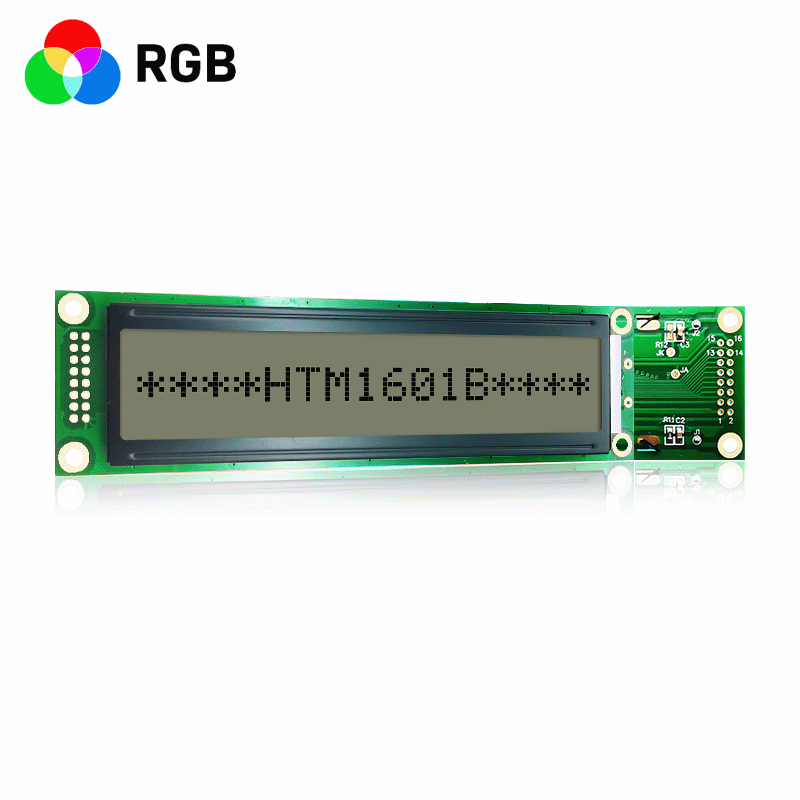

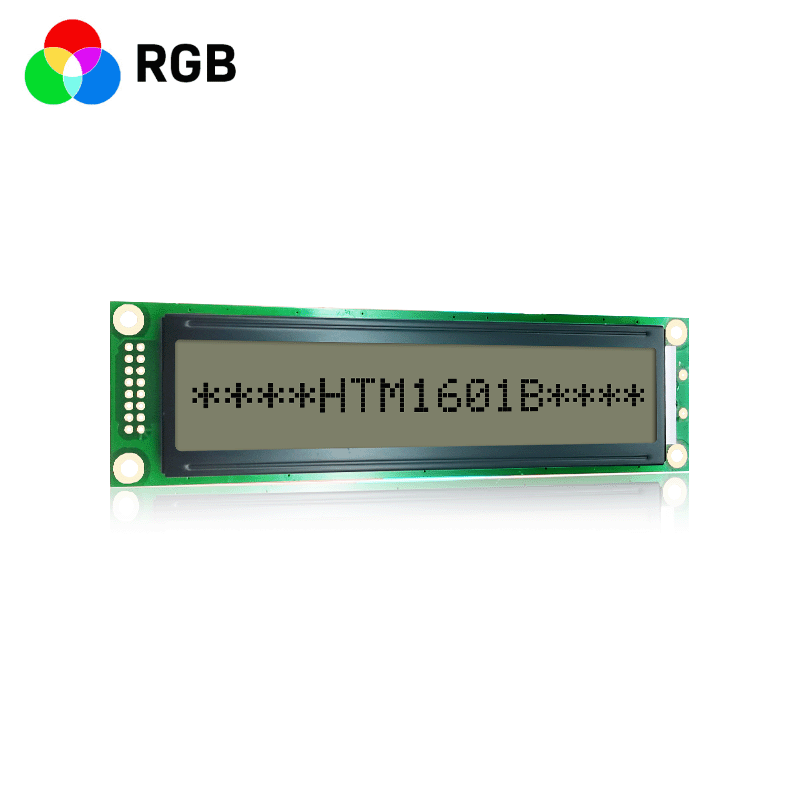

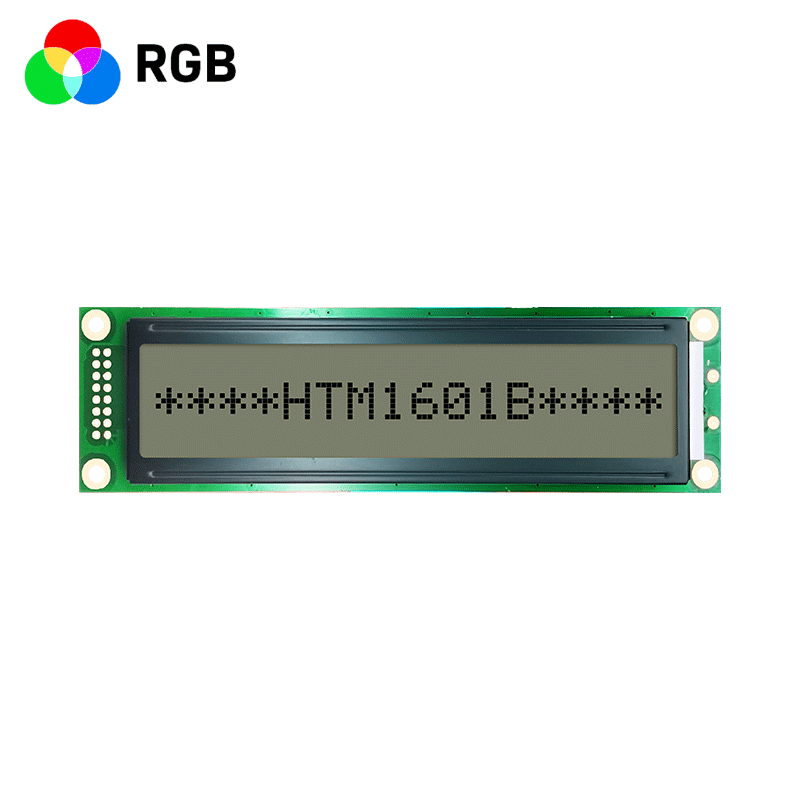

If you are looking for a reliable and easy to use 16-character single-line LCD, the HTM-1601B-35S-A5P is an excellent choice. It is a high-quality display suitable for the application. This is a FSTN forward display transflective character display module with RGB backlight, with an optimal viewing angle of 6:00. It operates at a power supply voltage of 5V and is compatible with Arduino and other similar boards and microcontrollers. This reflective monochrome display works well with C, C++ and Python, and can be used for parallel communication. This 16-pin standard LCD has a wide operating temperature range and is RoHS compliant.
