With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.7"720X1280HD/Full View/MIPI/TFT-H047C1HDIIL6N26 | TFT | 720x1280 |
|
63.4x113.28x2.5 | 4.7 | 4.7 | 58.104x103.296 | Full View | 600cd/m2 | 26PIN/AXT626124 | MIPI | 720HD | -20~70℃ | 2.8V | ILI9881D | |

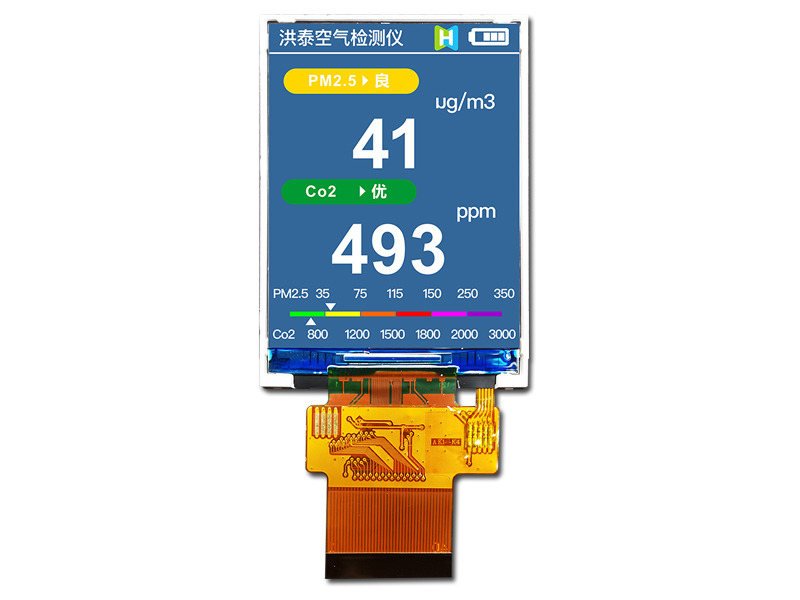

| 2.4TFT/QVGA/Wide viewing angles highlight TFT-H024B3QVIST8N29 | TFT | 240x320 |
|
42.32x59.91x2.4 | 2.4 | 2.4 | 36.72x48.96 | Full View | 850cd/m2 | 29P,FH26-29S-0.3SHW | MCU | MCU8/16bit | -20~70℃ | 2.8V | ST7789V | |
| 7.0"HD1024*600/Full View/CTP/TFT-H7001WSIF8C40 | TFT LCD | 1024x600 |
|
177.8x115.8x7.88 | 7.0 | 7.0 | 154.21x85.92 | Full View | 800cd/m2 | FPC-40PIN | RGB | TTL 24 bit | -20~70℃ | 3.3V | EK79001+EK73215,觸摸芯片F(xiàn)T5426 | |
| 2.4"/240*320/MIPI/TFT-H02402QVTST4N21 | TFT LCD | 240x320 |
|
42.72x60.26x2.30 | 2.4 | 2.4 | 36.72x48.96 | 12H | 400cd/m2 | FH26-21S-0.3SHW | MIPI | MIPI Video mode | -20~70℃ | 2.8V | ST7782M | |
| 2.4 inch wide viewing angles highlight /TFT-H024A1QVIST8N40 | TFT LCD | 240x320 |
|
42.32x59.91x2.4 | 2.4 | 2.4 | 36.72x48.96 | Full View | 850cd/m2 | 40pin | MCU | MCU8/16,SPI3L/4L | -20~70℃ | 3.3V | ST7789V |
