With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5-inch IPS TFT LCD module/480x800 dot matrix/ST7701S/MIPI interface/visible under sunlight/3.3V/compatible with Android/TFT-H035B22WVIST5N30 | TFT LCD | 480x800 |
|
51.32x 86.61x 3.6 | 3.5 | 3.5 | 45.36x76.15 | Full view | 500cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S | |
| 8 inch MIPI IPS 800x1280 high brightness TFT LCD display Module Android/TFT-H080B7HDINV5C30 | TFT LCD | 800x1280 |
|
124.60x194.10x4.70 | 8.0 | 8.0 | 107.64x172.224 | Full view | 500cd/m2 | FPC-30PIN | MIPI DSI | Radiation shielding film | -20~70℃ | 3.3V | NV3051F1 | |
| 3.5 Inch IPS TFT LCD Display RGB 640x480 Px ST7703/TFT-H035A17VGINV6N40 | TFT LCD | 640x480 |
|
76.9x63.9x4.8 | 3.5 | 3.5 | 70.08x52.56 | Full view | 500cd/M2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | NV3052,GT911 | |
| 3.5 Inch IPS TFT LCD Display RGB 640x480 Px ST7703/TFT-H035A17VGINV6N40 | TFT LCD | 640x480 |
|
76.9x63.9x3.5 | 3.5 | 3.5 | 70.08x52.56 | Full view | 600cd/M2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7703 | |
| 2.8 Inch 240x320 Dots MCU TFT LCD Display IC ST7789/TFT-H028A17QVTST2N37 | TFT LCD | 240x320 |
|
50.00x69.20x2.30 | 2.8 | 2.8 | 43.20x57.60 | 12H | 250cd/m2 | 37pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7789V | |
| 12.1 inch 800x600 pixel TN TFT LCD display for ventilator TFT- H121E01SVTWZ4N20 | TFT LCD | 800x600 |
|
276x 209 x 9.1 | 12.1 | 12.1 | 246.00x184.50 | 6H | 400cd/m2 | 26 | LVDS | Anti-static ESD 8KV | -20~70℃ | 3.3V | ||
| 2.0 inch 170x320 pixel IPS TFT LCD color LCD display SPI wide temperature TFT-H020A05QVIST7N10 | TFT LCD | 170x320 |
|
25.8x49.72 | 2.0 | 2.0 | 22.7x42.72 | Full view | 700cd/m2 | 10pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789 | |
| 3.0 inch IPS TFT LCD color LCD display RGB 360x640 pixels TFT-H030A9NHIST4N40 | TFT LCD | 360x640 |
|
43.68x77.02x2.3 | 3.0 | 3.0 | 36.72x65.28 | Full view | 400cd/m2 | 40pin | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7701 | |
| 7 inch TFT LCD IPS display module RGB/280x1424 dot matrix color screen module Sunlight readable For coffee machines TFT-H070A18ZBINV7N40 | TFT strip | 280x1424 |
|
182.47x38.2x3.45 | 7.0 | 7.0 | 170.88x33.6 | Full view | 750cd/m2 | 40pin | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |

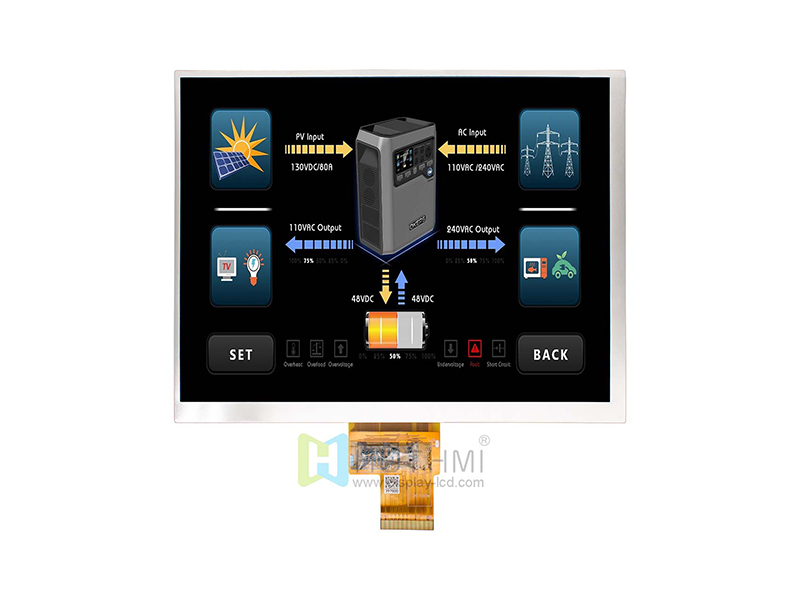

| 8-inch IPS TFT LCD color liquid crystal display module resistive touch screen/800x600 dot matrix/color screen module TFT-H080E09SVTHX2R50 | TFT LCD | 800x600 |
|
183x141x7.25 | 8.0 | 8.0 | 162x121.5 | Full view | 280cd/m2 | 50pin | TTL 24 bit | Anti-static ESD 8KV | -20~70℃ | 3.3V | HX8264+HX8696 |
