With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

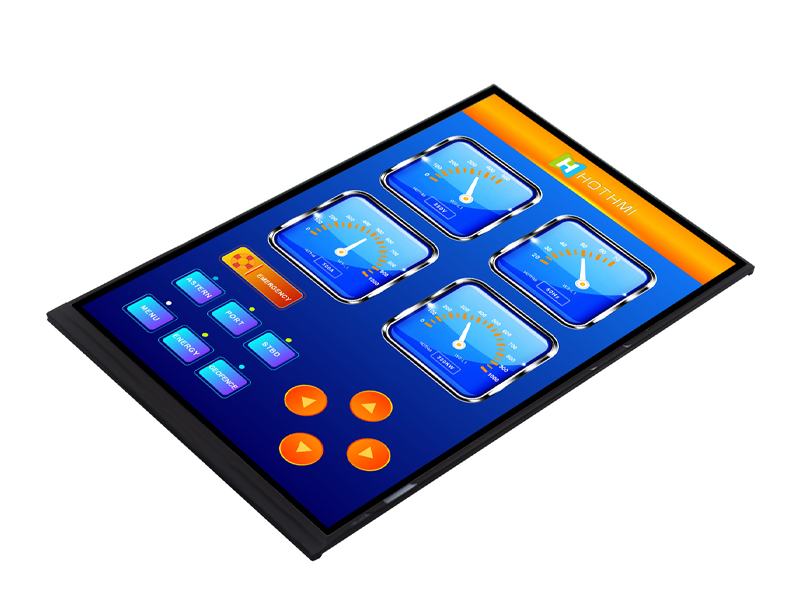

| 4.0 Inch IPS 480x800 Wide Temperature TFT Display Panel ST7701S For Industrial Computer TFT-H040A19WVIST5N40 | TFT LCD | 480x800 |
|
57.14x96.85 | 4.0 | 4.0 | 51.84x86.4 | Full view | 500cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S | |
| 5.0 Inch IPS 480x854 Wide Temperature TFT Display Panel ST7701S For Industrial Computer TFT-H050A12FWIST5N40 | TFT LCD | 480x854 |
|
64.76x118.7 | 5.0 | 5.0 | 61.63x109.65 | Full view | 500cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S | |
| 10.4 Inch IPS Resistive Touch 1024x768 Wide Temperature TFT Display Panel For Medical Devices TFT-H104IA-36A | TFT LCD | 1024x768 |
|
227x175.8x6.5 | 10.4 | 10.4 | 210.43x157.82 | Full view | 600cd/m2 | 30pin | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | T.B.D | |
| 3.5 Inch IPS 640x480 Wide Temperature TFT Display Panel ST7703 For industrial computer TFT-H035B20VGIST4N30 | TFT LCD | 640x480 |
|
76.9x63.9 | 3.5 | 3.5 | 70.08x52.56 | Full view | 450cd/m2 | 30pin | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |
| 3.5 Inch IPS 640x480 Wide Temperature TFT Display Panel ST7703 For Handheld TFT-H035B20VGIST4G30 | TFT LCD | 640x480 |
|
79.5x61.2 | 3.5 | 3.5 | 70.08x52.56 | Full view | 400cd/m2 | 30pin | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |
| 2.4 Inch IPS 240x320 TFT Display Panel ST7789V Sunlight Readable With Resistive Touch Panel TFT-H024B18QVIST8R40 | TFT LCD | 240x320 |
|
42.72x58.76 | 2.4 | 2.4 | 36.72x48.96 | Full view | 800cd/m2 | 40pin | MCU | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789V | |
| 2.4 Inch IPS 240x320 TFT Display Panel ST7789V Sunlight Readable For Industrial Control TFT-H024B18QVISTKN40 | TFT LCD | 240x320 |
|
42.72x58.76 | 36.72x48.96 | 36.72x48.96 | 36.72x48.96 | Full view | 1000cd/m2 | 40pin | MCU | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789V | |
| 3 Inch 480x854 ST7703 TFT LCD Display SPI Wide Temperature For Industrial Control TFT-H030A10FWIST3N40 | TFT LCD | 480x854 |
|
41.8x73.97x2.15 | 3.0 | 3.0 | 36.72x65.28 | Full view | 350cd/m2 | 40pin | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7701S | |
| 3.5 Inch 320x480 Sunlight Readable ST7796 TFT LCD Display MCU For Industrial Control TFT-H035A12HVISTKN40 | TFT LCD | 320x480 |
|
54.50x83.0x2.3 | 3.5 | 3.5 | 48.96x73.44 | Full view | 1000cd/m2 | 40pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7796 | |
| 5" INCH TFT LCD CAPACITIVE TOUCH SUNLIGHT READABLE DISPLAY FOR INDUSTRIAL CONTROL TFT-H050C09SVISTKC40 | TFT LCD | 800x480 |
|
120.7x75.8x4.85 | 5.0 | 5.0 | 108x64.8 | Full view | 1000cd/m2 | 40pin | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7262(TFT), MXT640T(CTP) |
