Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

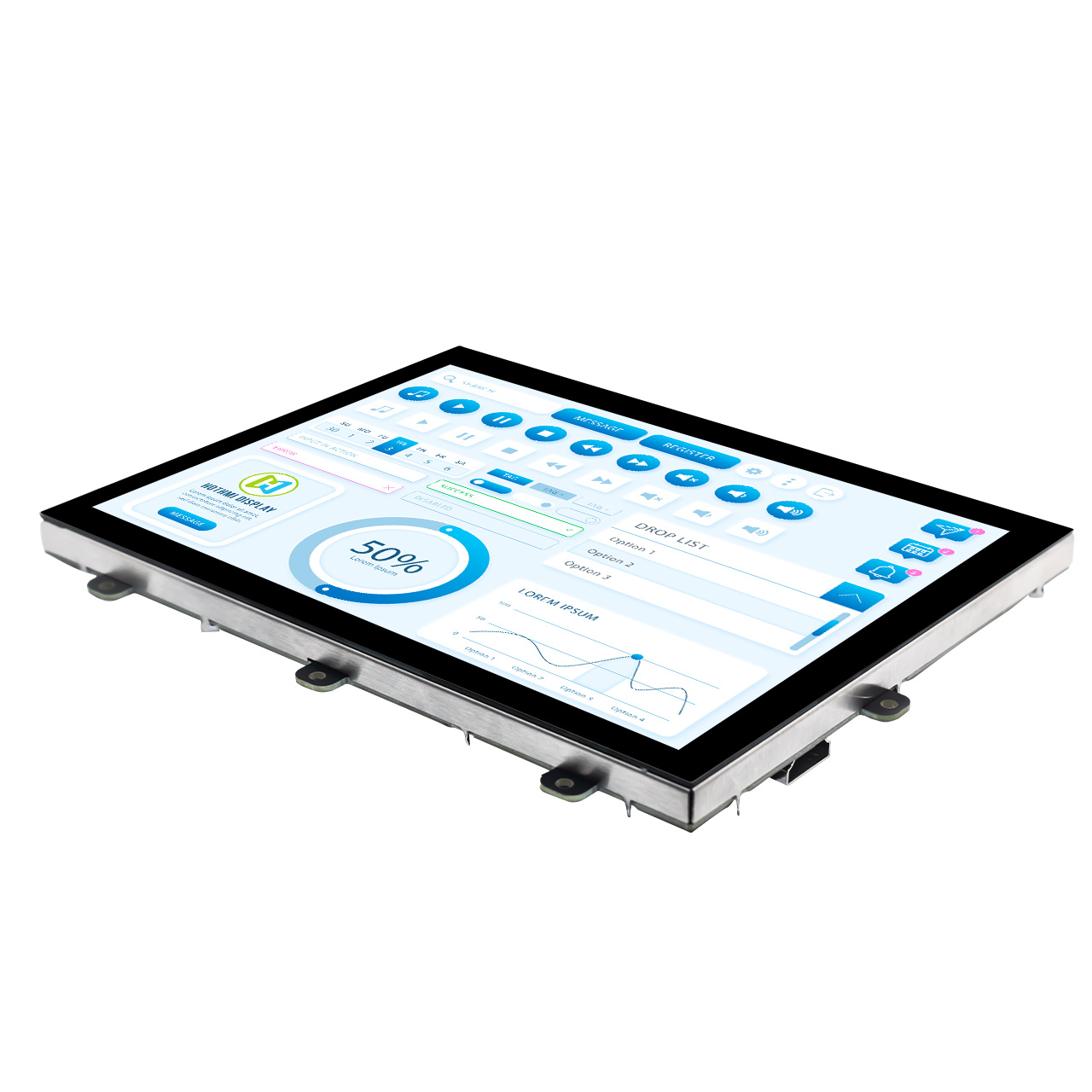

| 8.0" TFT LCD Display Modules | 1024x768 HI TFT Modules HTM-H080D13-HI-A01G | TFT Module | 1024x768 |
|
197.0x155.0x23.4 | 8.0 | 8.0 | 162.05x121.54 | IPS | 300cd/M2 | HI | IPS | -20~70℃ | 5.0V | |||

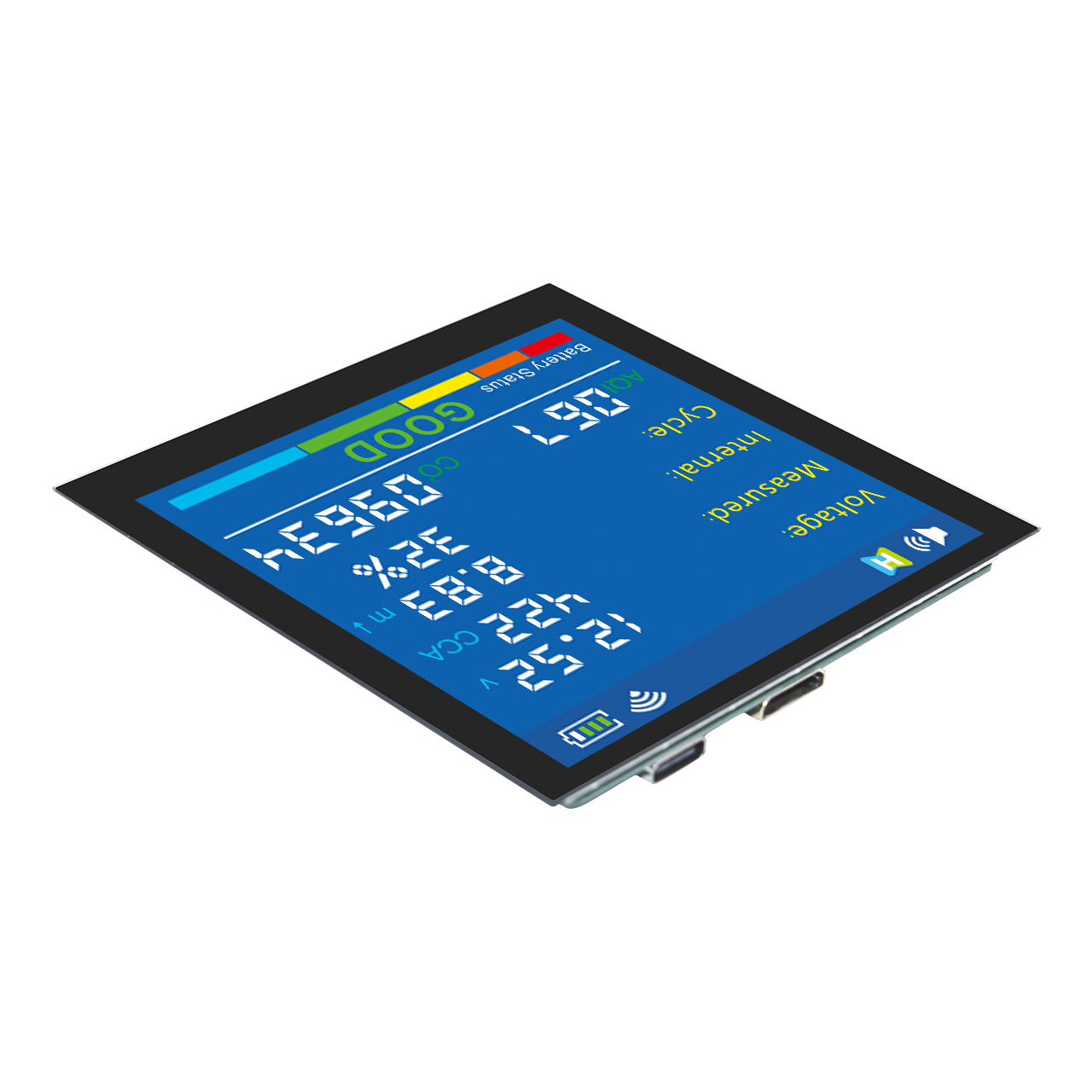

| 4.0 inch TFT LCD display Module | 720x720 IPS TFT Screen HTM-H040A24-HI-T V0.0 | TFT Module | 720x720 |
|
84x84x0.7 | 4.0 | 4.0 | 71.928x71.928 | IPS | 350cd/m2 | HI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||

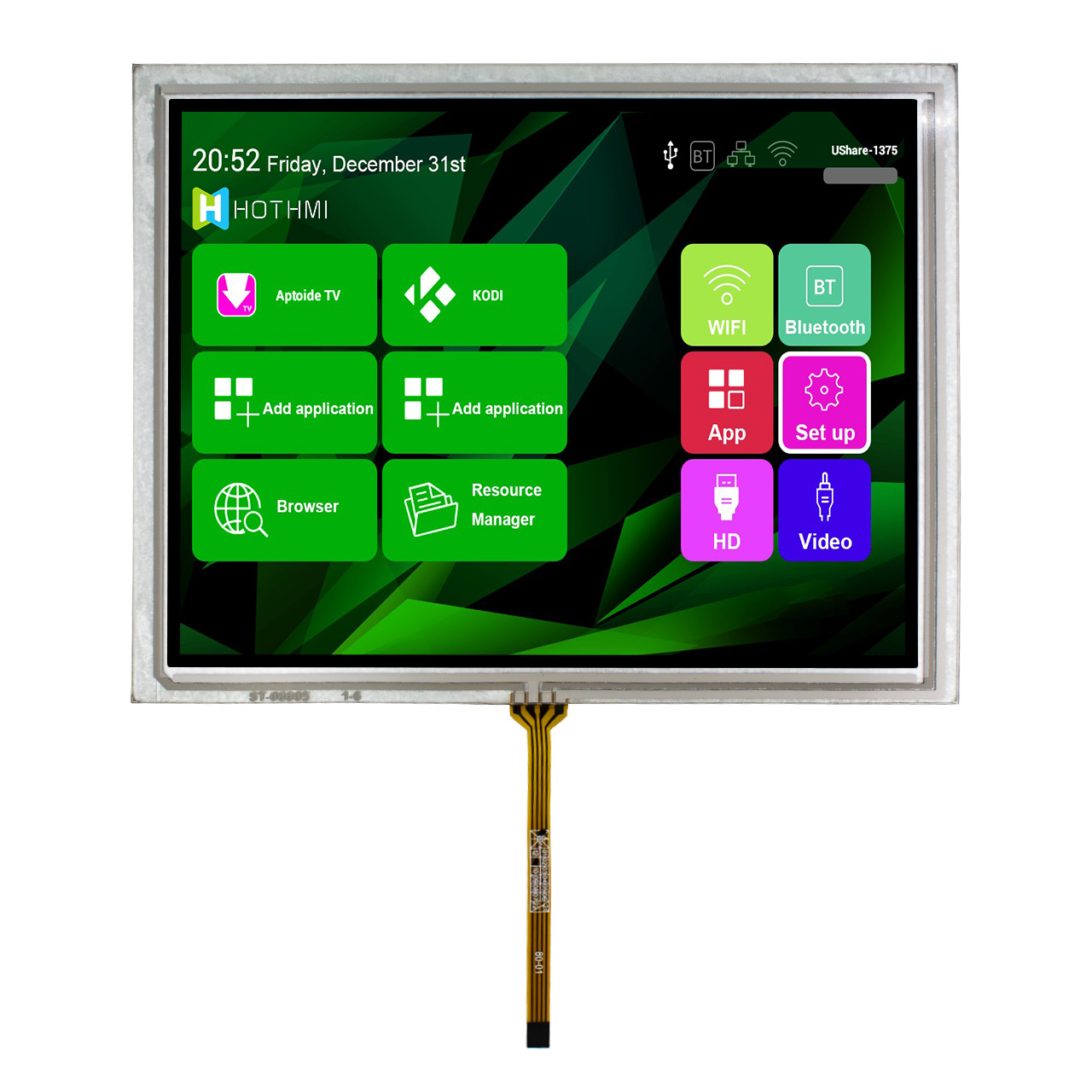

| 8.0" TFT Display Module | 1024x768 LVDS Resistive TFT Panel | T.B.D HTM-H080D14- LVDS-A01R | TFT Module | 1024x768 |
|
183.0x141.0x7.1 | 8.0 | 8.0 | 162.048x121.536 | IPS | 1000cd/M2 | FPC-30 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | T.B.D | |

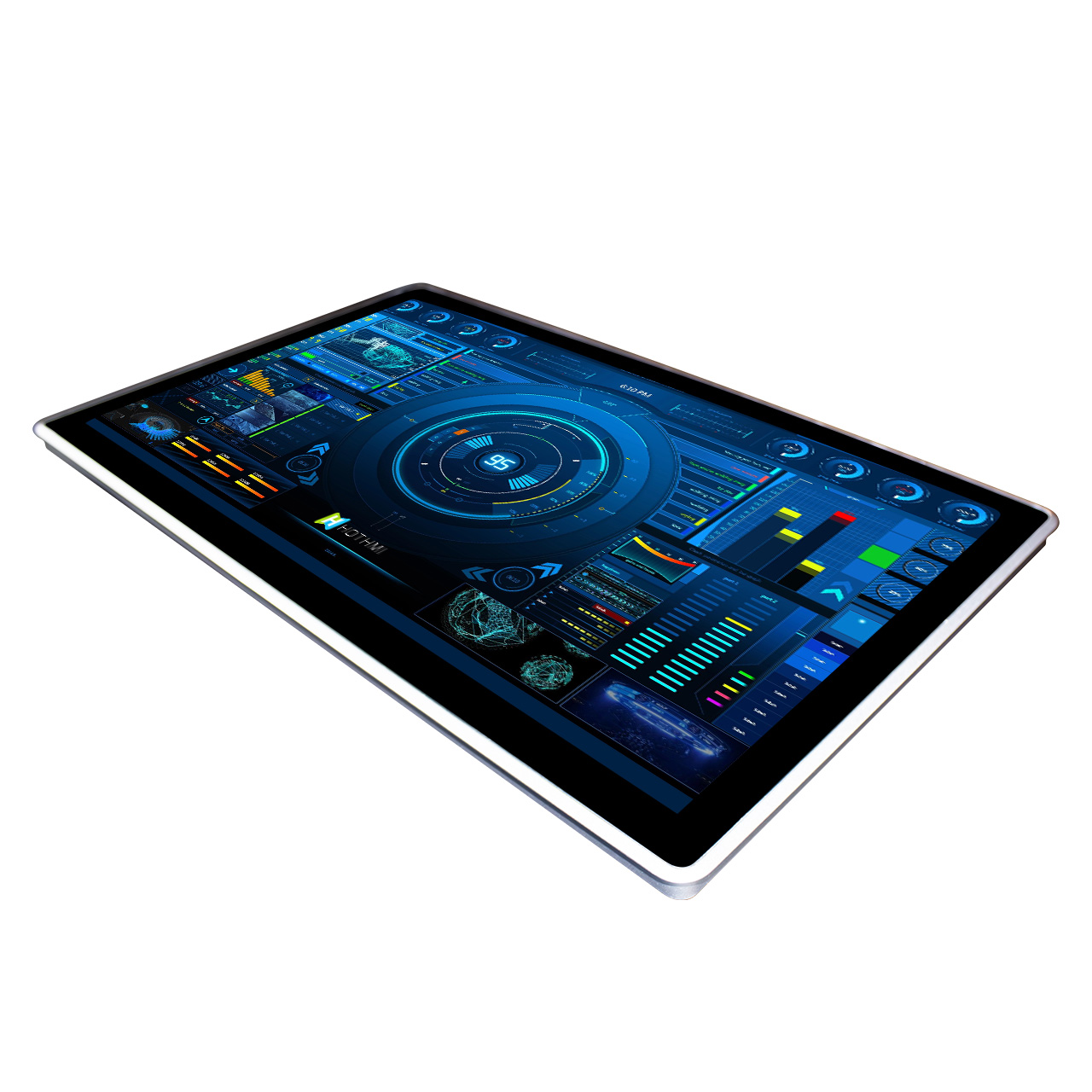

| 21.5 "TFT LCD Display Panel | 1920x1080 Optical Optical Binding TFT LCD Screen G03-21_5 | TFT Module | 1920x1080 |
|
526.0x319.2x48.0 | 21.5 | 21.5 | 475.0x267.0 | IPS | 400cd/m2 | DVI/HDM/DP/VGA | Anti-static ESD 8KV | -20~70℃ | 12~24V | |||

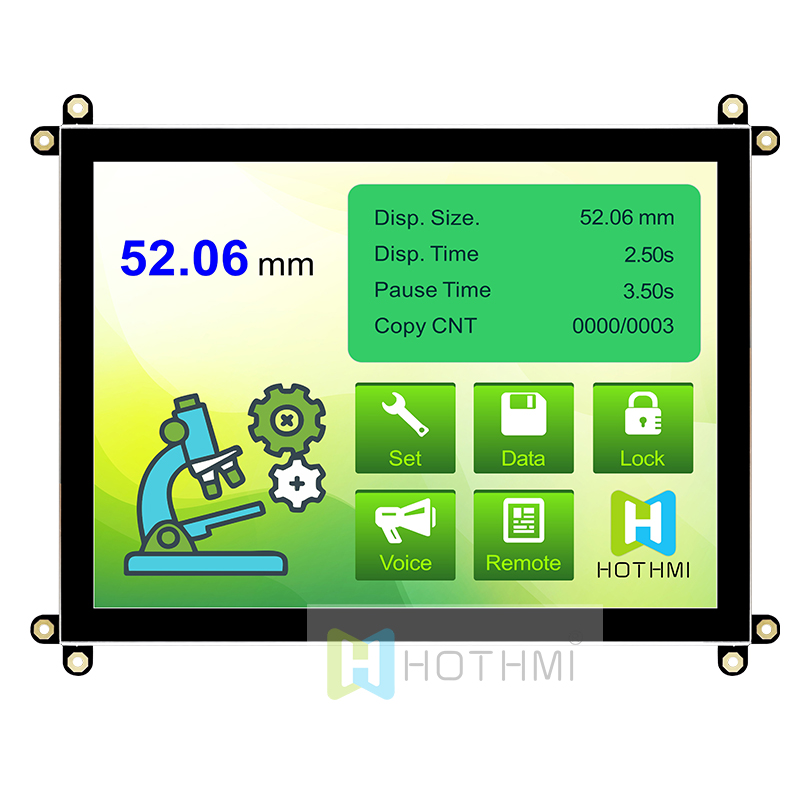

| 8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module HTM-H080A2-HI A03 | TFT Module | 1024x768 |
|
203.0x161.0x21.8 | 8.0 | 8.0 | 162.05x121.54 | IPS | 800cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||

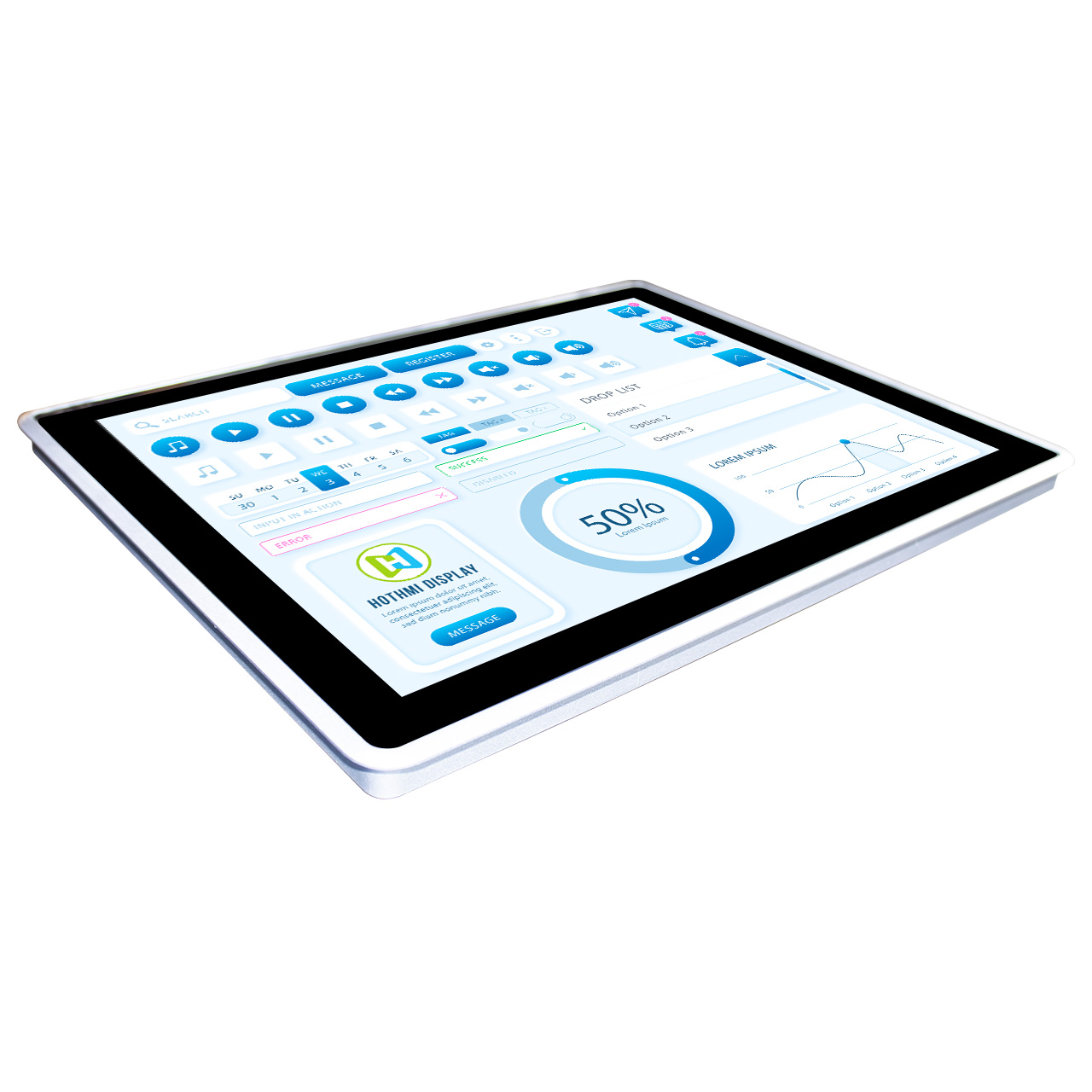

| 15.0"TFT LCD Module | 1024x768 DVI / HDM / DP / VGA TFT Panel | Optical LCD G03-15 | TFT Module | 1024x768 |
|
350.4x278.8x51.0 | 15.0 | 15.0 | 304.0x22.8 | IPS | 400cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12V~24V | |||
| 23.6"TFT Display Screen | 1920x1080 TFT Panel | Raspberry Pi HT2360EC | Graphic LCD Module | 1920x1080 |
|
566.3（W）x337h）69.4m | 23.6 | 23.6 | 519.3mm (H) x 293mm (V) | IPS | 250cd/m2 | HI | Anti-static ESD 8KV | -20~70℃ | 110V-240V | |||

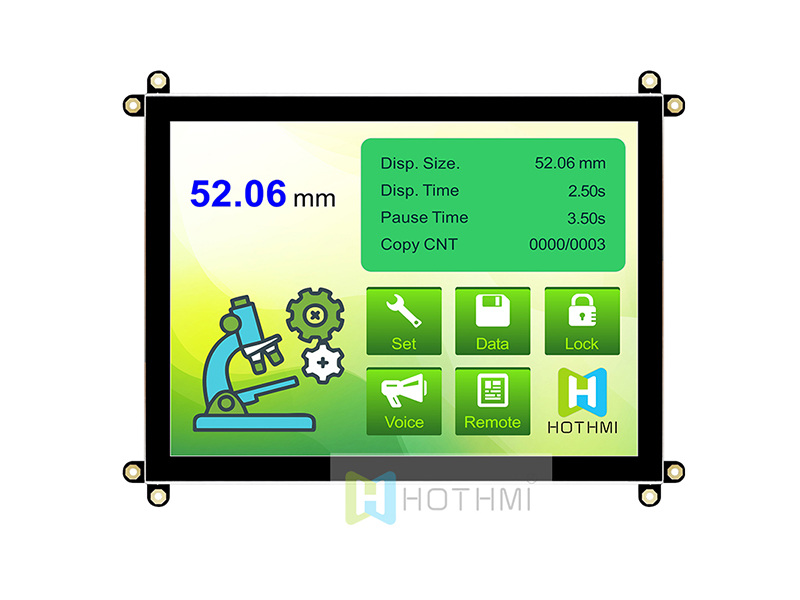

| 8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module HTM-H080A2-HDMI A03 | TFT LCD Module | 1024x768 |
|
203.0x161.0x21.8 | 8.0 | 8.0 | 162.05x121.54 | IPS | 800cd/m2 | VGA | IPS | -30~80℃ | +3.3V | |||
| 10.1-inch IPS full-view 1280x800 with driver board module/sunlight visible TFT display module LCM-TFT101T61XGHDVUSDC | TFT Module | 1280x800 |
|
266.7x165x7.3 | 10.1 | 10.1 | 216.96x128.6 | IPS | 800cd/M2 | HI | Anti-static ESD 8KV | -20~70℃ | 9V~24V | |||

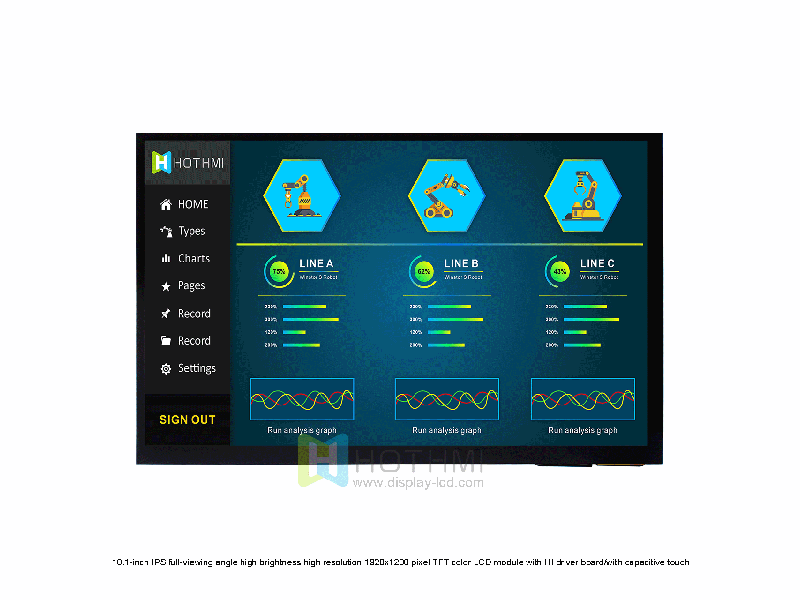

| 10.1-inch IPS high brightness 1920x1200 pixel TFT color LCD module with HI driver board HTM-H101A4-HI | HI driver-free module | 1920x1200 |
|
230.2x150.0x4.4 | 10.1 | 10.1 | 216.81x135.5 | IPS | 1000cd/m2 | HI | Anti-static ESD 8KV | -20~60℃ | 12V |
