Plated COG LCD Module

The COG liquid crystal module is a component that assembles a COG liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the COG liquid crystal module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.

Screening results
Checklist Model Product type Show contents Product map Outline size
(mm)
Horizon
(mm)
Display size
mm/inch
Point spacing
mm
Visual angle Brightness Pin Interface Instructions Working temperature Voltage Driver chip model
128x64 LCM Graphic/HTM12864-8 Graphic LCM 128x64 72.0x59.0x8.6 65.0x38.0 60.7x32.93 0.515x0.475 6H YG 9PIN SPI -20~70℃ 3.3v ST7565R

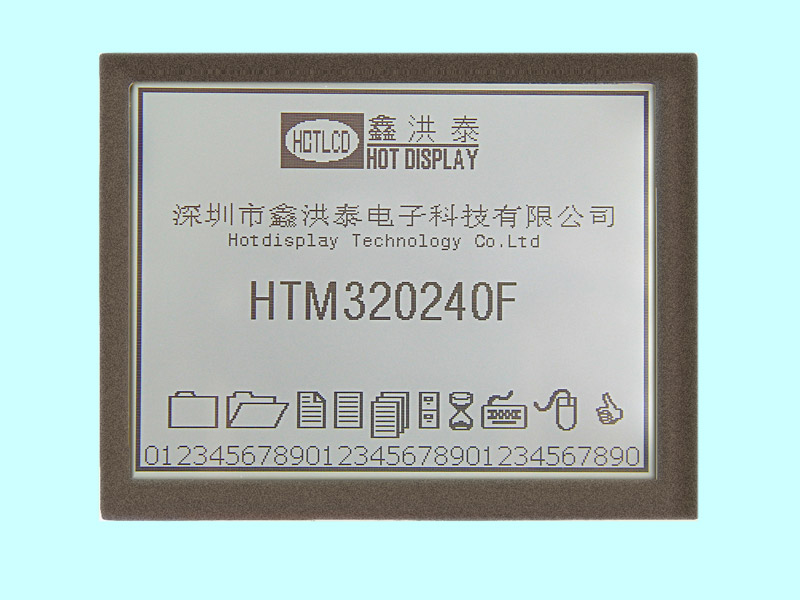

320x240 LCM Graphic/HTM320240F Graphic LCM 320x240 92.0x71.3x9.0 78.78x59.68 76.78x57.58 0.24x0.22 6H WHITE FFC-20PIN MCU Anti-static ESD 8KV -20~70℃ 3.3V RA8835/RA8806
128x64 LCM Graphic/HTM12864-19C Graphic LCM 128x64 45.0x42.0x9.0 36.0x23.5 33.26x20.46 0.32x0.29 6H RGB 11PIN SPI -20~70℃ 3.3V ST7565R
132x64 LCM Graphic/HTM13264J Graphic LCM 132x64 68.86x44.15x10.0 53.2x31.5 48.81x26.21 0.41x0.38 6H WHITE FFC-16PIN MCU MCU/8bit -20~70℃ 3.3V

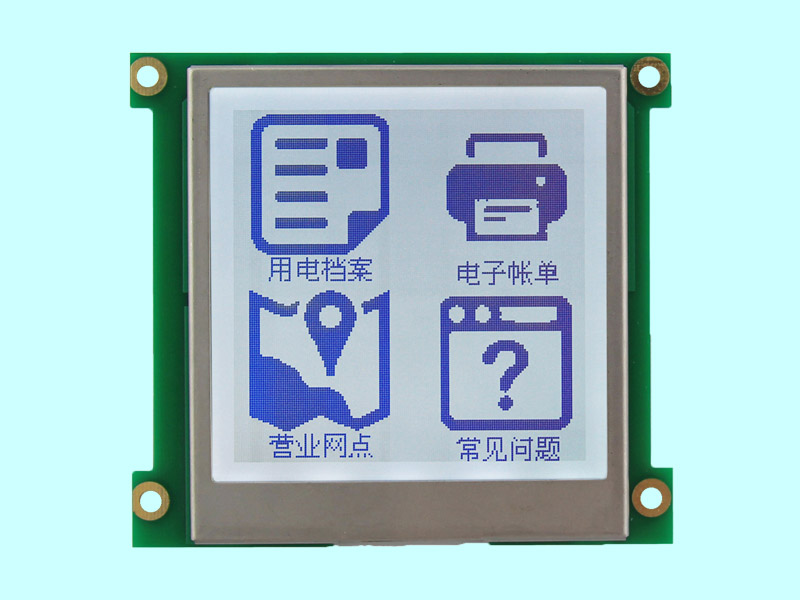

160x160 LCM Graphic/HTM160160E Graphic LCM 160x160 83.8x76.5x8.5 60.0x60.0 54.4x54.4 0.34x0.32 6H WHITE FFC-18PIN MCU MCU/8bit -20~70℃ 3.3V UC1698
240x160 LCM Graphic/HTM240160F Graphic LCM 240x160 87.0x73.0x10.0 72.9x48.0 67.42x44.94 0.281x0.261 6H WHITE FPC-18PIN MCU MCU/8bit -20~70℃ 3.3V ST7529
